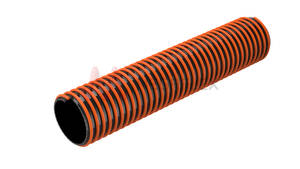

Spiralpress OIL PVC-NBR S&D Hose with Rigid PVC Helix and Polyester Yarn
Product Code: SQ01
Description

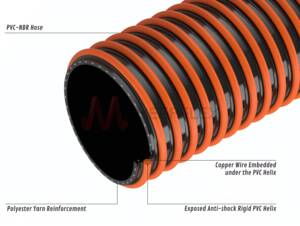

Black PVC-NBR tank drop hose, reinforced with an anti-shock rigid PVC spiral and polyester yarn, designed for its conductive property, achieved through a copper wire earthed under the PVC spiral, ensures static electricity is safely discharged. This hose stands out for being lighter and more flexible than traditional rubber hoses.
Features and Applications
Spiralpress OIL's resistance to oils and lubricants, even those with high aromatic content up to 50%, ensures longevity and reliability in aggressive chemical environments. Commonly used as a tank drop hose. Ideal for use in the Petrolchemical, Marine, Construction and Waste management industries, where the transfer of petroleum products, gasoline, and other lubricants is frequent and where resistance to harsh chemicals and physical flexibility are indispensable. Manufactured in antistatic by adding a copper wire. By earthing the copper wire, the duct becomes electrically bonded. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directives
Choose Spiralpress OIL for solutions requiring both safety and efficiency in the handling of volatile and potentially hazardous substances. Bore Finish: Smooth
Temperature
- -10°C to 60°C
Certification
- ATEX DIRECTIVE 2014/34/UE and 99/92/EC
- ISO 8031
- RoHS
- REACH
Electrical Resistance
- Conductive to 102 Ω/m by grounding the copper braid wire.
Applications
- Petrochemical
- Marine
- Construction
- Waste management
Construction
- Wall: NBR/PVC
- Reinforcement: Polyester
- Helix: PVC
Suitable Media
- Petroleum
- Gasoline
- Petrochemicals
Available Colours
- Black and Orange
Suitable for aromatic hydrocarbons up to 50% aromatic content.
| Part | Inner Diameter | I.D. (64th inch) | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Vacuum Rating | Bend Radius | Weight | Length | Volume | Banding Coil Length | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ″ | ″ | ||||||||||||
| SQ01050 | 2 | 2 | 50.8 | 66.6 | 3.2 | 7 | 9.5 | 200 | 1150 | 30 | 0.288 | 180 | Good |
| SQ01076 | 3 | 3 | 76.2 | 96.2 | 3.7 | 6 | 9 | 260 | 1960 | 30 | 0.416 | 225 | Good |
| SQ01102 | 4 | 4 | 102 | 123 | 3.7 | 6 | 9 | 360 | 2730 | 30 | 0.945 | 240 | Good |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
