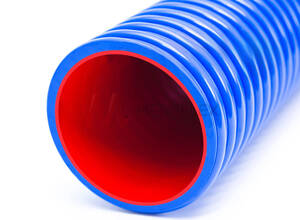

Urano HD Super AS - Antistatic Ultra-Heavy Duty Blue PVC S&D Hose with Red Inner Ester Polyurethane Inner Reinforced with Rigid PVC Helix


Product Code: UH02


Urano HD Antistatic Heavy Duty PVC Suction & Delivery Hose

Description


Applications
Very heavy duty and resistant hose. Ideal in severe application conditions and whereas a high abrasive resistance is required. Indicated for suction and delivery in roof rocking sector, especially of abrasive liquids as slurry, sand, cement, grains and gravel.

Technical

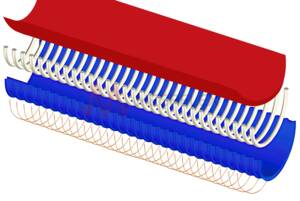

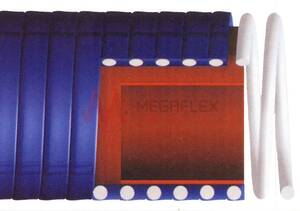

Very strong anti-static hose made of two layers: the external one is in PVC reinforced with an anti-shock PVC helix. The inner surface is completely smooth and consists of a Polyurethane layer of 2.2 mm.

Properties
The hose is appreciated for its excellent resistance to abrasion and vacuum in heavy duty applications, resistant to ageing, ozone, UV rays, Hydrolysis, weather conditions. This product has been improved with a new PU compound which makes it 35 % more abrasion resistant compare to the previous version.

Standards
RoHS 2011/65/EU Directive, REACH Regulation (1907/2006), TRB S 2153. It is manufactured in antistatic version adding a copper wire. By earthing the copper wire in accordance to TRB S 2153, the hose is electrically bonded. The electrical resistance R ≤ 102 Ohm/m is according to ISO 8031 - ATEX Directive 94/4/EC and 99/92/EC.

Accessories


Temperature


  • -25°C to 60°C

Construction


  • Inner Layer: PU
  • Outer Cover: PVC
  • Helix: PVC
  • Surface Finish: Smooth

Electrical Resistance


  • Conductive to 102 Ω/m by grounding the copper braid wire.

Suitable Media


  • Abrasives
  • Slurry
  • Sand
  • Cement
  • Gravel

Applications


  • Construction industry

Available Colours


  • Blue
PartInner DiameterOuter DiameterWall ThicknessVacuum RatingBend RadiusWeightLengthVolumeAvailability
UH0206363.576.54.9103901430500.783Production
UH0207676.2915.4104701910500.932Production
UH021021021216.79.56003310301.45Good
UH021271271477.19.57504430301.77Good
UH021521521768.89.59006350201.70Good

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 for further details!
