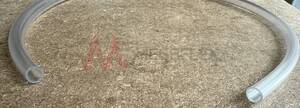

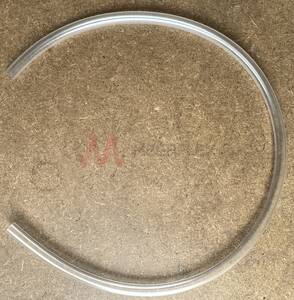

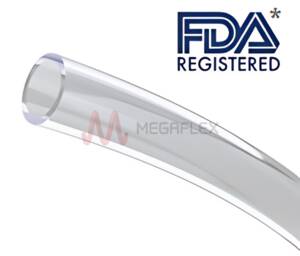

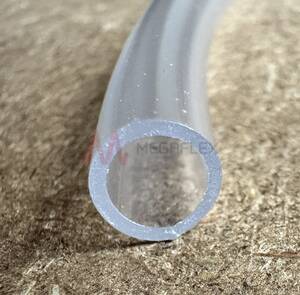

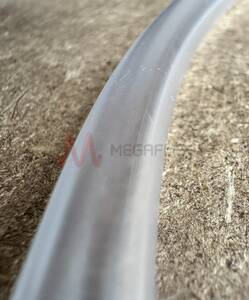

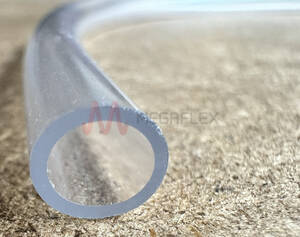

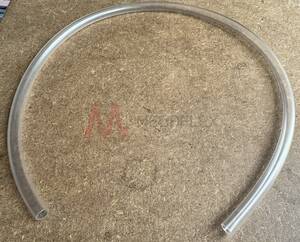

Perfluoroalkoxy (PFA) Unreinforced Clear Food Grade Tube to 260°C
Product Code: PFA60D
Description
Perfluoroalkoxy (PFA) extruded tube is renowned for its transparency, longevity, UV resistance, exceptional chemical resistance, anti-adhesive properties, food-grade compliance, temperature resistance, and non-inflammability, ensuring superior performance in challenging environments.
Features and Applications
Optimised for the safe transport of chemically aggressive fluids, this PFA tube is indispensable in fields that demand high levels of material integrity and safety, such as medical, pharmaceutical, agriculture, laboratory, and cosmetics. Its transparency and exceptional material properties make it a versatile choice for a broad spectrum of applications.Properties
The tube offers transparency for easy monitoring of fluid flow, longevity for sustained use, UV resistance to withstand exposure to sunlight, exceptional chemical resistance against a wide range of substances, anti-adhesive surfaces for easy cleaning, food-grade quality for safety, temperature resistance suitable for extreme conditions, and non-inflammability for enhanced safety. With a nominal density of 2.15. The elongation at break of >300% indicates its flexibility, and the standard crystal clear colour allows for visual inspection of the tube's contents. It can withstand peak temperatures up to +290°C.The recommended method for secure connections is compression tube fittings, ensuring reliable and effective integration into systems.
Customisation Options (minimum order quantities apply): Other solid colours, Sheathed versions. Bore Finish: Smooth Shore Hardness: 60 Shore D
Temperature
- -70°C to 260°C, intermittently as high as 290°C
Applications
- Medical
- Agriculture
- Pharmaceutical
- Laboratory
- Cosmetics
Certification
- FDA 21 CFR 177.1550
- ISO R 868
- ISO R 527
- ISO 37
Suitable Media
- Aggressive liquids
- Water
- Air
- Chemicals
Food Quality
- Food Grade ✔
Available Colours
- Clear
Construction
- Wall: PFA
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability |
|---|---|---|---|---|---|---|---|---|---|
| PFA60D002004 | 2 | 4 | 1 | 32 | 160 | 16 | 20 | 100 | Production |
| PFA60D004006 | 4 | 6 | 1 | 21 | 105 | 36 | 34 | 100 | Production |
| PFA60D006008 | 6 | 8 | 1 | 15 | 75 | 64 | 48 | 100 | Production |
| PFA60D008010 | 8 | 10 | 1 | 12 | 60 | 100 | 61 | 100 | Production |
| PFA60D010012 | 10 | 12 | 1 | 10 | 50 | 144 | 75 | 100 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
