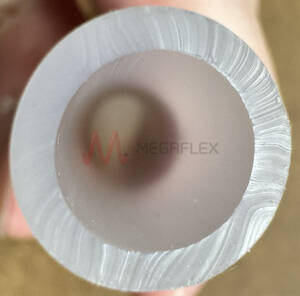

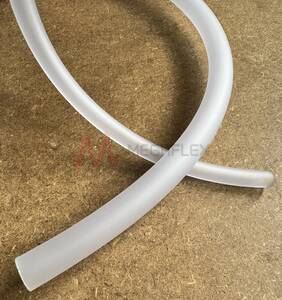

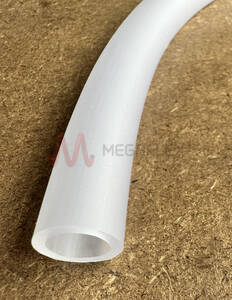

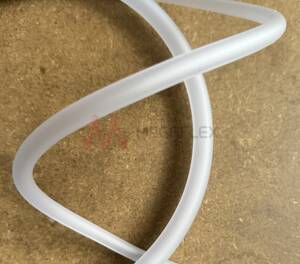

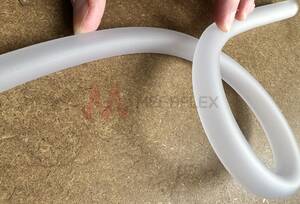

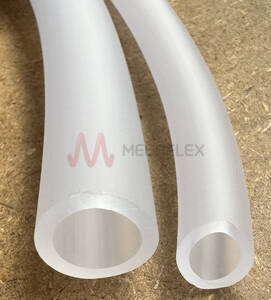

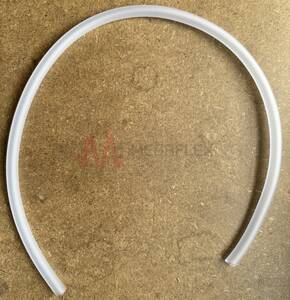

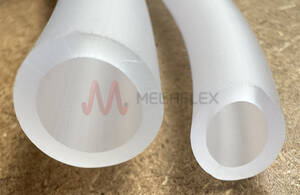

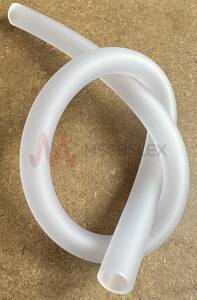

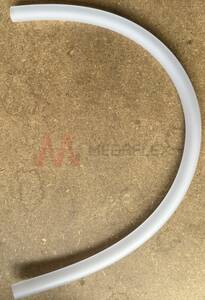

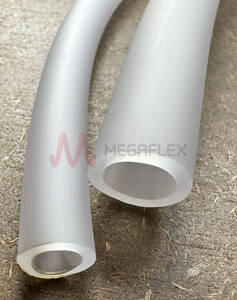

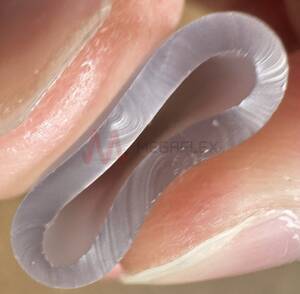

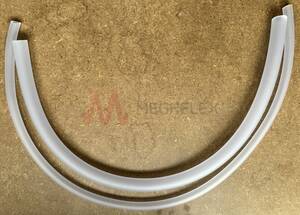

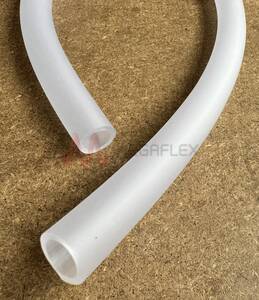

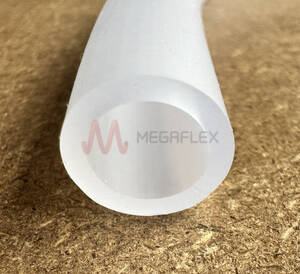

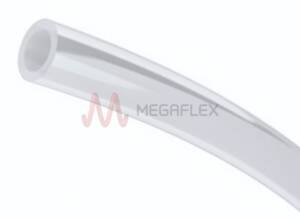

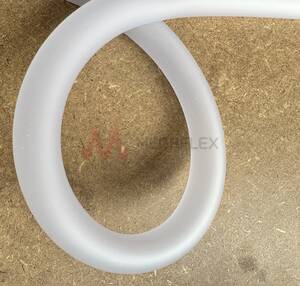

Unreinforced Translucent Nylon Extruded Calibrated Tube for Compressed Air
Product Code: PA62D
Description
Our Nylon (polyamide) extruded and calibrated tube is known for its precise calibration, excellent impact resistance, and superior alternate bending strength. Additionally, it offers good resistance to both UV light and hydrocarbons, ensuring durability and reliability under various environmental conditions.
Features and Applications
Designed for the pressurised transport of compressed air and lubricant, this calibrated tube is indispensable in fields that demand rigorous maintenance, control, process management, and instrumentation. Its robust construction and resistance properties make it a preferred choice for demanding industrial applications.Properties
The tube features good impact resistance, alternate bending strength, UV resistance, and hydrocarbon resistance. It operates with a nominal density of 1.02. Its tensile strength exceeds 20 Mpa, and it can elongate over 200%, indicating high durability and flexibility. The standard translucent colour allows for easy monitoring of the flow, and it can withstand peak temperatures up to +120°C.The recommended connection method is a quick-fit connector, facilitating easy and secure installations.
Customisation Options (minimum order quantities apply): Other solid colours, Sheathed versions, Braided versions. Bore Finish: Smooth Shore Hardness: 62 Shore D
Temperature
- -40°C to 100°C
Applications
- Industrial Manufacturing
- Agricultural
- Environmental
- Automotive
- Construction
- Cable Protection
- Marine
Suitable Media
- Compressed Air
- Lubricant
- Water
- Hydrocarbons
Certification
- ISO R 868
- ISO 1183
- ISO R 527
Available Colours
- Translucent
Construction
- Wall: PA
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability |
|---|---|---|---|---|---|---|---|---|---|
| PA62D003004 | 2.7 | 4 | 0.65 | 23 | 77 | 25 | 7 | 2080 | Production |
| PA62D004006 | 4 | 6 | 1 | 27 | 80 | 30 | 16 | 1040 | Production |
| PA62D006008 | 6 | 8 | 1 | 19 | 58 | 40 | 23 | 520 | Production |
| PA62D008010 | 8 | 10 | 1 | 15 | 53 | 60 | 29 | 520 | Production |
| PA62D010012 | 10 | 12 | 1 | 13 | 44 | 85 | 36 | 100 | Production |
| PA62D012014 | 12 | 14 | 1 | 11 | 37 | 86 | 43 | 100 | Production |
| PA62D014018 | 14 | 18 | 2 | 17 | 50 | 115 | 105 | 100 | Production |
| PA62D016020 | 16 | 20 | 2 | 15 | 45 | 130 | 118 | 100 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
