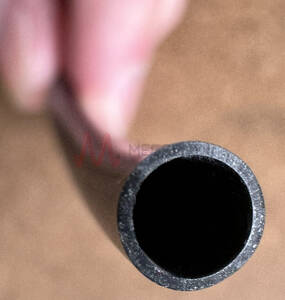

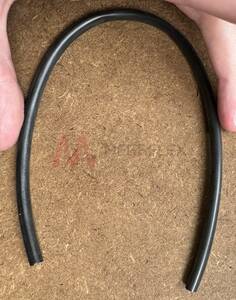

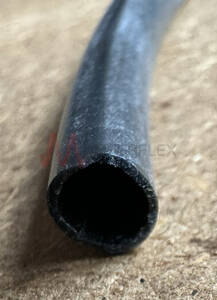

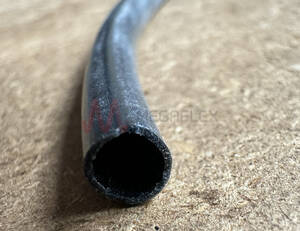

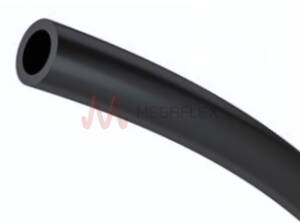

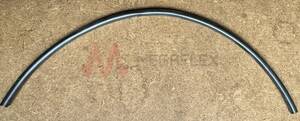

Unreinforced Calibrated Antistatic Nylon (PA) Black Tube for Petrochemicals
Product Code: PA63D
Description
Antistatic Nylon (polyamide) extruded and calibrated tube is engineered for its antistatic properties, good UV resistance, and good hydrocarbon resistance, ensuring safety and reliability in potentially explosive atmospheres.
Features and Applications
Designed for the pressurised transport of compressed air and lubricant within ATEX environments, this tube is crucial for applications that require strict adherence to safety standards in maintenance, control, process, instrumentation, and petrochemical sectors. Its antistatic nature and resistance to UV and hydrocarbons make it suitable for challenging industrial conditions.Properties
The tube features antistatic properties to prevent static buildup, calibrated for precision, and offers good resistance to UV light and hydrocarbons, enhancing its durability and suitability for use in hazardous environments. Technical Data includes a nominal density of 1.25. Its tensile strength of >16 Mpa and elongation at break of >300% indicate its strength and flexibility. The standard opaque black colour provides discretion in fluid transport, and it can withstand peak temperatures up to +120°C.The recommended method for secure and efficient connections is a quick-fit connector, ensuring reliable integration into systems.

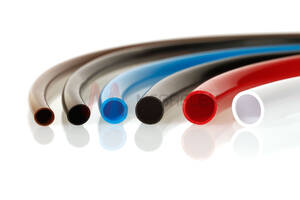

Customisation Options (minimum order quantities apply): Other solid colours, Sheathed versions. Bore Finish: Smooth Shore Hardness: 63 Shore D
Temperature
- -40°C to 100°C, intermittently as high as 120°C
Applications
- Maintenance
- Control
- Process
- Instrumentation
- Petrochemical
- ATEX Environments
Certification
- ISO R 868
- ISO 1183
- ISO R 527
- IEC 62631
- ATEX Sector II G/D
Suitable Media
- Compressed Air
- Lubricants
- Grease
Electrical Resistance
- Antistatic to 106 Ω/m
Available Colours
- Black
Construction
- Wall: PA
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability |
|---|---|---|---|---|---|---|---|---|---|
| PA63D004006 | 4 | 6 | 1 | 22 | 67 | 35 | 20 | 100 | Production |
| PA63D006008 | 6 | 8 | 1 | 16 | 48 | 40 | 28 | 100 | Production |
| PA63D008010 | 8 | 10 | 1 | 12 | 37 | 60 | 36 | 100 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
