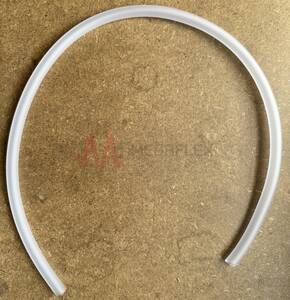

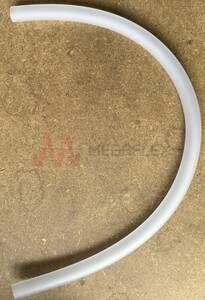

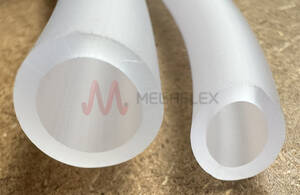

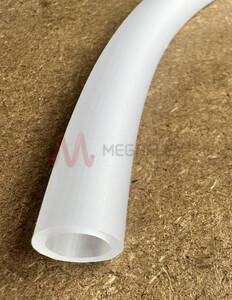

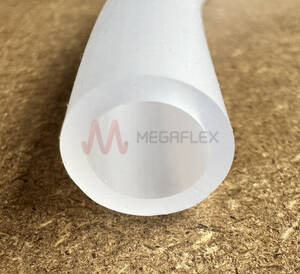

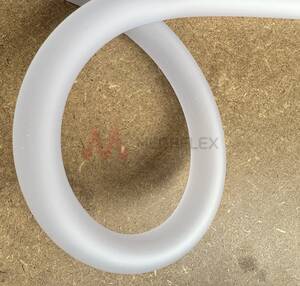

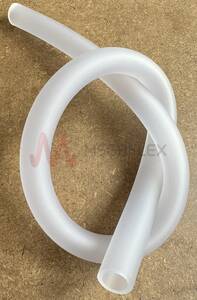

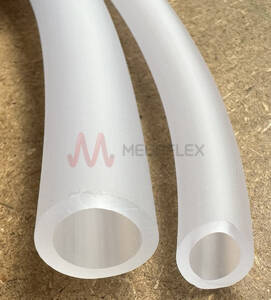

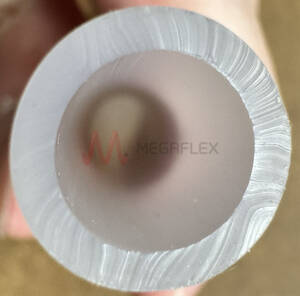

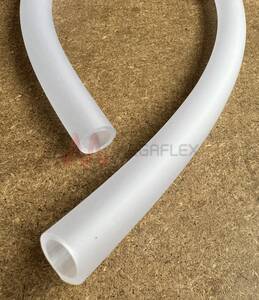

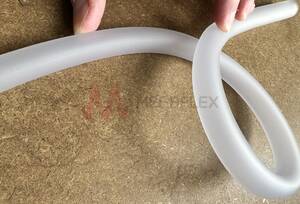

Platinum-Cured Silicone Unreinforced Translucent Food Grade Tube for Cosmetics
Product Code: SILPLAT
Description
Our platinum-cured silicone elastomer extruded tube is tailored for its high-temperature resistance, enhanced mechanical properties, and robust resistance to aggressive fluids, alcohols, and acids. Additionally, it features excellent weather resistance, is water-repellent, chemically inert, and biologically neutral, ensuring its efficacy in various demanding settings.
Features and Applications
Primarily designed for the safe conveyance of acid liquids, this tube is invaluable in fields that require the utmost in purity and reliability, including medical, pharmaceutical, agriculture, laboratory, and cosmetics applications. Its adaptability to a broad range of substances makes it an indispensable tool for numerous operations.Properties

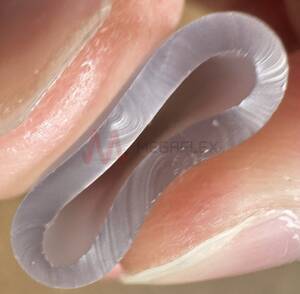

The tube is recognised for its resistance to high temperatures, superior mechanical properties, and excellent resistance to aggressive substances. Its outstanding weather resistance, water-repellent nature, chemical inertness, and biological neutrality further underscore its utility across a wide spectrum of environmental conditions and uses.With a nominal density of 1.19, a tensile strength of >11 Mpa and an elongation at break of >600%, it exhibits remarkable durability and flexibility. The standard translucent colour enhances its practicality by facilitating content monitoring. Connection recommendations include a nipple with lug clamp or band clamp for secure and effective installations.

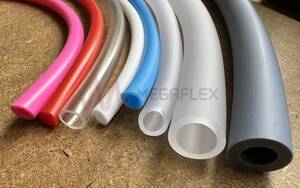

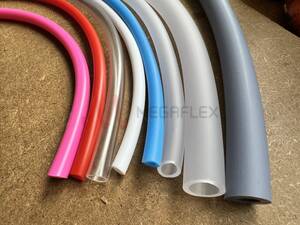

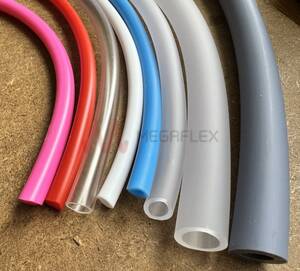

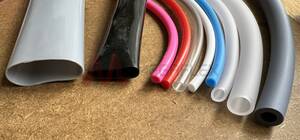

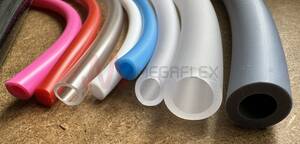

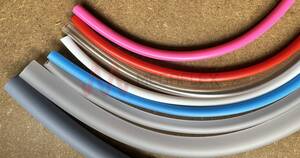

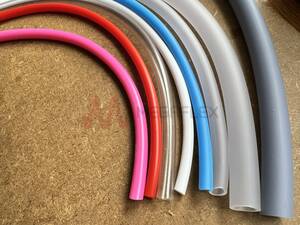

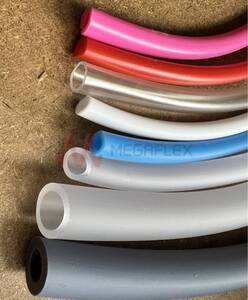

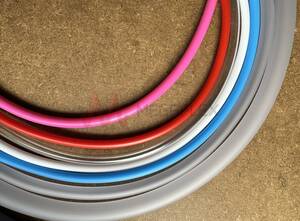

Customisation Options (minimum order quantities apply): Other solid colours, Braided versions. Bore Finish: Smooth Shore Hardness: 70 Shore A
Temperature
- -60°C to 180°C, intermittently as high as 200°C
Food Quality
- Suitable for medical & pharmaceutical applications. NOT FOR PATIENT USE.
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
Certification

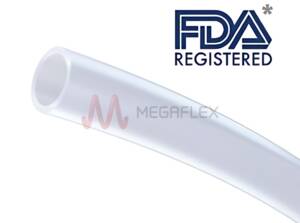

- FDA 21 CFR 177.2600
- EU 1935/2004
- European Pharmacopeia Section 3.1.9
- DIN 53505
- DIN53504 S1
- ISO 1183
Applications
- Medical
- Agriculture
- Pharmaceutical
- Laboratory
- Cosmetics
Suitable Media
- Acidic Liquids
- Water
- Air
- Food liquids
Construction
- Wall: Platinum-cured Silicone
Available Colours

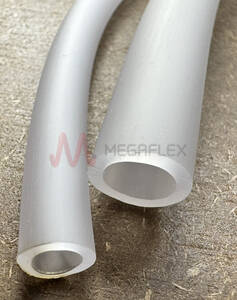

- Translucent
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Weight | Length | Availability |
|---|---|---|---|---|---|---|
| SILPLAT001003 | 1 | 3 | 1 | 7 | 100 | Production |
| SILPLAT002004 | 2 | 4 | 1 | 11 | 100 | Production |
| SILPLAT002006 | 2 | 6 | 2 | 30 | 100 | Production |
| SILPLAT003005 | 3 | 5 | 1 | 15 | 100 | Production |
| SILPLAT003006 | 3 | 6 | 1.5 | 25 | 100 | Production |
| SILPLAT004006 | 4 | 6 | 1 | 19 | 50 | Production |
| SILPLAT004007 | 4 | 7 | 1.5 | 31 | 50 | Production |
| SILPLAT004008 | 4 | 8 | 2 | 45 | 50 | Production |
| SILPLAT005008 | 5 | 8 | 1.5 | 36 | 50 | Production |
| SILPLAT005010 | 5 | 10 | 2.5 | 70 | 50 | Production |
| SILPLAT005015 | 5 | 15 | 5 | 187 | 50 | Production |
| SILPLAT006009 | 6 | 9 | 1.5 | 42 | 50 | Production |
| SILPLAT006010 | 6 | 10 | 2 | 60 | 50 | Production |
| SILPLAT006012 | 6 | 12 | 3 | 101 | 25 | Production |
| SILPLAT006018 | 6 | 18 | 6 | 269 | 25 | Production |
| SILPLAT007010 | 7 | 10 | 1.5 | 48 | 50 | Production |
| SILPLAT007011 | 7 | 11 | 2 | 67 | 50 | Production |
| SILPLAT007013 | 7 | 13 | 3 | 112 | 50 | Production |
| SILPLAT008012 | 8 | 12 | 2 | 75 | 50 | Production |
| SILPLAT008014 | 8 | 14 | 3 | 123 | 50 | Production |
| SILPLAT008016 | 8 | 16 | 4 | 179 | 25 | Production |
| SILPLAT009012 | 9 | 12 | 1.5 | 59 | 50 | Production |
| SILPLAT010014 | 10 | 14 | 2 | 90 | 50 | Production |
| SILPLAT010016 | 10 | 16 | 3 | 146 | 25 | Production |
| SILPLAT010018 | 10 | 18 | 4 | 209 | 25 | Production |
| SILPLAT012016 | 12 | 16 | 2 | 105 | 50 | Production |
| SILPLAT012017 | 12 | 17 | 2.5 | 135 | 50 | Production |
| SILPLAT015021 | 15 | 21 | 3 | 202 | 25 | Production |
| SILPLAT016022 | 16 | 22 | 3 | 213 | 25 | Production |
| SILPLAT018024 | 18 | 24 | 3 | 235 | 25 | Production |
| SILPLAT020027 | 20 | 27 | 3.5 | 307 | 25 | Production |
| SILPLAT022029 | 22 | 29 | 3.5 | 333 | 25 | Production |
| SILPLAT025032 | 25 | 32 | 3.5 | 373 | 25 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
