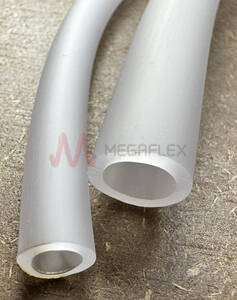

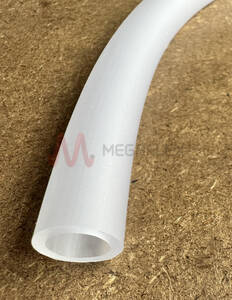

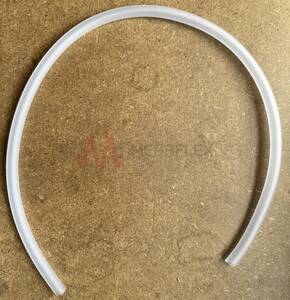

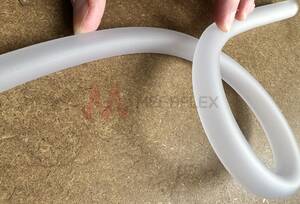

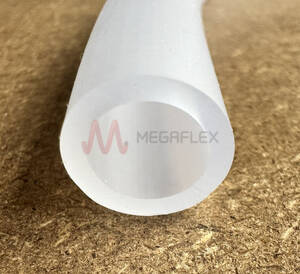

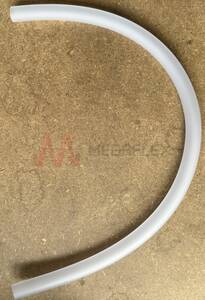

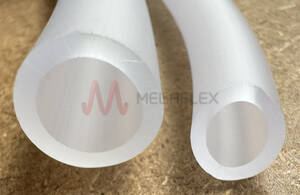

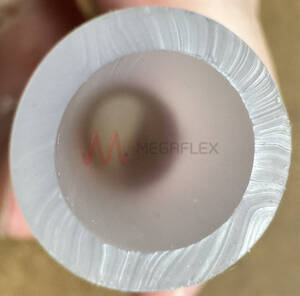

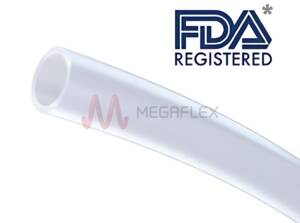

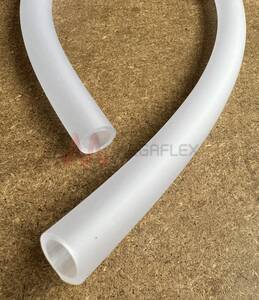

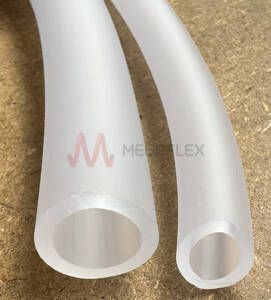

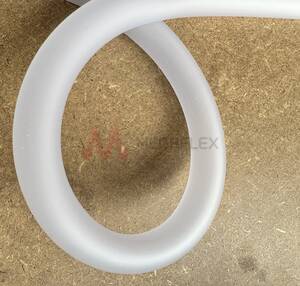

Peroxide-Cured Silicone Unreinforced Translucent Food Grade Tube for Cosmetics
Product Code: SIL70A
Description

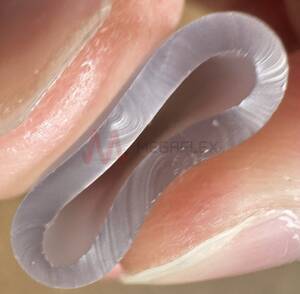

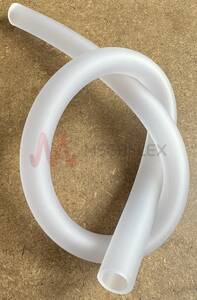

Peroxide-cured silicone elastomer extruded tube is crafted for its flexibility and elasticity, ensuring its applicability in various settings. It meets food-grade standards, is resistant to high temperatures, and offers good resistance to aggressive fluids, alcohols, and acids. Additionally, it features excellent weather and UV resistance, is water-repellent, and is both chemically inert and biologically neutral, highlighting its suitability for demanding applications.
Features and Applications
Designed for the safe transport of food-grade liquids, alcohols, and acids, this tube is vital in fields requiring stringent hygiene and safety standards, such as medical, pharmaceutical, agriculture, laboratory, and cosmetics. Its flexibility and resistance to extreme conditions make it a versatile choice.Properties
The tube offers flexibility, elasticity, and is food-grade, making it suitable for a wide array of applications. It is resistant to high temperatures, aggressive substances, and UV light, ensuring durability and reliability. Its water-repellent nature, along with chemical inertness and biological neutrality, ensure its effectiveness in various environments. With a nominal density of 1.19, tensile strength of >10 Mpa, and an elongation at break of >400%. The standard translucent colour allows for visual inspection of contents, and it can withstand peak temperatures up to +200°C.The recommended connection for secure installations is a nipple with lug clamp or band clamp.

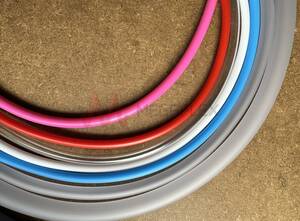

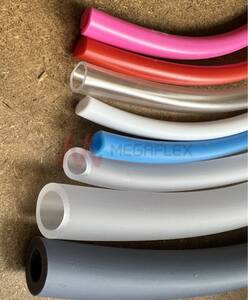

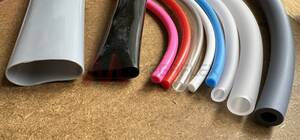

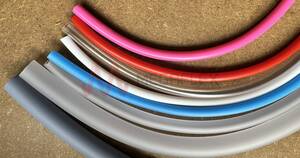

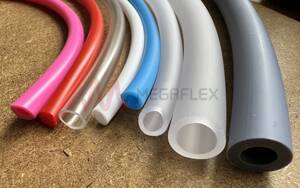

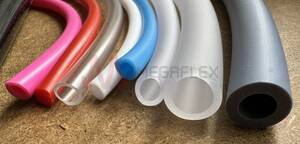

Customisation Options (minimum order quantities apply): Other solid colours, Braided versions. Bore Finish: Smooth Shore Hardness: 70 Shore A
Temperature
- -60°C to 180°C, intermittently as high as 200°C
Certification
- FDA 21 CFR 177.2600
- EU 1935/2004
- European Pharmacopeia Section 3.1.9
- NF EN 1186
- EU 10/2011
- DIN 53505
- ISO 1183
- DIN 53504 S1
- Decree of 25/11/1992
Food Quality
- Suitable for medical & pharmaceutical applications. NOT FOR PATIENT USE.
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
Suitable Media
- Acidic Liquids
- Water
- Air
- Food liquids
- Alcohol
- Acids
Applications
- Medical
- Agriculture
- Pharmaceutical
- Laboratory
- Cosmetics
Construction
- Wall: Peroxide-cured Silicone
Available Colours
- Translucent
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Weight | Length | Availability |
|---|---|---|---|---|---|---|
| SIL70A001003 | 1 | 3 | 1 | 7 | 100 | Production |
| SIL70A002004 | 2 | 4 | 1 | 11 | 100 | Production |
| SIL70A002006 | 2 | 6 | 2 | 30 | 100 | Production |
| SIL70A003005 | 3 | 5 | 1 | 15 | 100 | Production |
| SIL70A003006 | 3 | 6 | 1.5 | 25 | 100 | Production |
| SIL70A004006 | 4 | 6 | 1 | 19 | 50 | Production |
| SIL70A004007 | 4 | 7 | 1.5 | 31 | 50 | Production |
| SIL70A004008 | 4 | 8 | 2 | 45 | 50 | Production |
| SIL70A005008 | 5 | 8 | 1.5 | 36 | 50 | Production |
| SIL70A005010 | 5 | 10 | 2.5 | 70 | 50 | Production |
| SIL70A005015 | 5 | 15 | 5 | 187 | 50 | Production |
| SIL70A006009 | 6 | 9 | 1.5 | 42 | 50 | Production |
| SIL70A006010 | 6 | 10 | 2 | 60 | 50 | Production |
| SIL70A006012 | 6 | 12 | 3 | 101 | 25 | Production |
| SIL70A006018 | 6 | 18 | 6 | 269 | 25 | Production |
| SIL70A007010 | 7 | 10 | 1.5 | 48 | 50 | Production |
| SIL70A007011 | 7 | 11 | 2 | 67 | 50 | Production |
| SIL70A007013 | 7 | 13 | 3 | 112 | 50 | Production |
| SIL70A008012 | 8 | 12 | 2 | 75 | 50 | Production |
| SIL70A008014 | 8 | 14 | 3 | 123 | 50 | Production |
| SIL70A008016 | 8 | 16 | 4 | 179 | 25 | Production |
| SIL70A009012 | 9 | 12 | 1.5 | 59 | 50 | Production |
| SIL70A010014 | 10 | 14 | 2 | 90 | 50 | Production |
| SIL70A010016 | 10 | 16 | 3 | 146 | 25 | Production |
| SIL70A010018 | 10 | 18 | 4 | 209 | 25 | Production |
| SIL70A012016 | 12 | 16 | 2 | 105 | 50 | Production |
| SIL70A012017 | 12 | 17 | 2.5 | 135 | 50 | Production |
| SIL70A015021 | 15 | 21 | 3 | 202 | 25 | Production |
| SIL70A016022 | 16 | 22 | 3 | 213 | 25 | Production |
| SIL70A018024 | 18 | 24 | 3 | 235 | 25 | Production |
| SIL70A020027 | 20 | 27 | 3.5 | 307 | 25 | Production |
| SIL70A022029 | 22 | 29 | 3.5 | 333 | 25 | Production |
| SIL70A025032 | 25 | 32 | 3.5 | 373 | 25 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
Please click here for full terms and conditions.
Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
