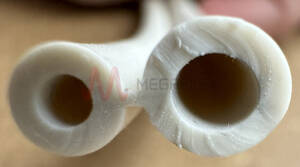

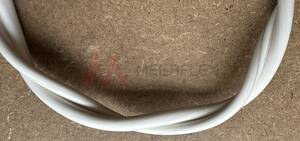

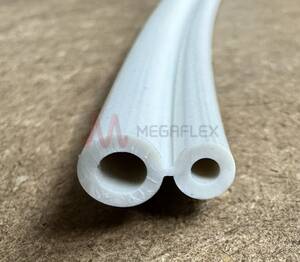

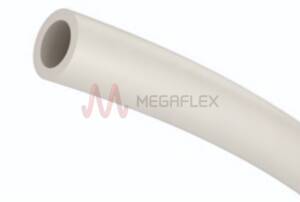

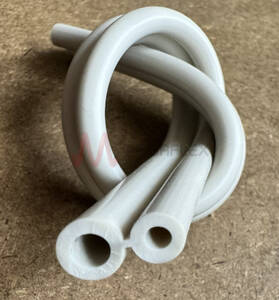

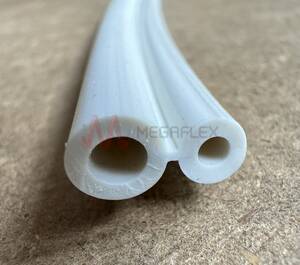

Peroxide-Cured Silicone Unreinforced White Tube for Cosmetics and Agriculture
Product Code: SIL73A
Description
Our peroxide-cured silicone elastomer extruded tube is designed for its non-adhesive surface, high-temperature resistance, and good resistance to aggressive fluids, alcohols, and acids. Furthermore, it exhibits excellent weather resistance and is water-repellent, making it suitable for a variety of demanding applications.
Features and Applications
This tube is specifically engineered for the safe transport of acid liquids, proving invaluable in sectors demanding high standards of safety and reliability, such as medical, pharmaceutical, agriculture, laboratory, and cosmetics. Its compatibility with a wide array of substances underscores its versatility.Properties
The tube offers non-adhesiveness, resistance to high temperatures, and good resistance to aggressive substances. Its excellent weather resistance and water-repellent nature ensure its effectiveness and durability across diverse environmental conditions. The nominal density is 1.45, indicating its solid yet flexible structure. With a tensile strength of >6.5 Mpa and an elongation at break of >150%, it demonstrates both strength and flexibility. The standard opaque white colour aids in minimising light transmission, while the recommended connection method of a nipple with lug clamp or band clamp ensures secure and efficient installations.Customisation Options (minimum order quantities apply): Other solid colours. Bore Finish: Smooth Shore Hardness: 73 Shore A
Temperature
- -60°C to 180°C, intermittently as high as 200°C
Applications
- Medical
- Agriculture
- Pharmaceutical
- Laboratory
- Cosmetics
Certification
- DIN 53505
- DIN53504 S1
- ISO 1183
Suitable Media
- Acidic Liquids
- Water
- Air
Construction
- Wall: Peroxide-cured Silicone
Available Colours
- White
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Weight | Length | Availability |
|---|---|---|---|---|---|---|
| SIL73A001003 | 1 | 3 | 1 | 9 | 100 | Production |
| SIL73A002004 | 2 | 4 | 1 | 14 | 100 | Production |
| SIL73A002006 | 2 | 6 | 2 | 36 | 100 | Production |
| SIL73A003005 | 3 | 5 | 1 | 18 | 100 | Production |
| SIL73A003006 | 3 | 6 | 1.5 | 31 | 100 | Production |
| SIL73A004006 | 4 | 6 | 1 | 23 | 50 | Production |
| SIL73A004007 | 4 | 7 | 1.5 | 38 | 50 | Production |
| SIL73A004008 | 4 | 8 | 2 | 55 | 50 | Production |
| SIL73A005008 | 5 | 8 | 1.5 | 44 | 50 | Production |
| SIL73A005010 | 5 | 10 | 2.5 | 85 | 50 | Production |
| SIL73A005015 | 5 | 15 | 5 | 228 | 50 | Production |
| SIL73A006009 | 6 | 9 | 1.5 | 51 | 50 | Production |
| SIL73A006010 | 6 | 10 | 2 | 73 | 50 | Production |
| SIL73A006012 | 6 | 12 | 3 | 123 | 25 | Production |
| SIL73A006018 | 6 | 18 | 6 | 328 | 25 | Production |
| SIL73A007010 | 7 | 10 | 1.5 | 58 | 50 | Production |
| SIL73A007011 | 7 | 11 | 2 | 82 | 50 | Production |
| SIL73A007013 | 7 | 13 | 3 | 137 | 50 | Production |
| SIL73A008012 | 8 | 12 | 2 | 91 | 50 | Production |
| SIL73A008014 | 8 | 14 | 3 | 150 | 50 | Production |
| SIL73A008016 | 8 | 16 | 4 | 219 | 25 | Production |
| SIL73A009012 | 9 | 12 | 1.5 | 72 | 50 | Production |
| SIL73A010014 | 10 | 14 | 2 | 109 | 50 | Production |
| SIL73A010016 | 10 | 16 | 3 | 178 | 25 | Production |
| SIL73A010018 | 10 | 18 | 4 | 255 | 25 | Production |
| SIL73A012016 | 12 | 16 | 2 | 127 | 50 | Production |
| SIL73A012017 | 12 | 17 | 2.5 | 165 | 50 | Production |
| SIL73A015021 | 15 | 21 | 3 | 246 | 25 | Production |
| SIL73A016022 | 16 | 22 | 3 | 260 | 25 | Production |
| SIL73A018024 | 18 | 24 | 3 | 287 | 25 | Production |
| SIL73A020027 | 20 | 27 | 3.5 | 374 | 25 | Production |
| SIL73A022029 | 22 | 29 | 3.5 | 406 | 25 | Production |
| SIL73A025032 | 25 | 32 | 3.5 | 454 | 25 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
