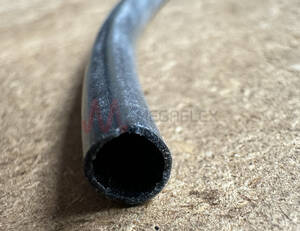

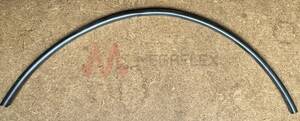

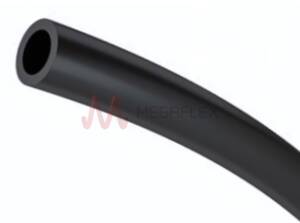

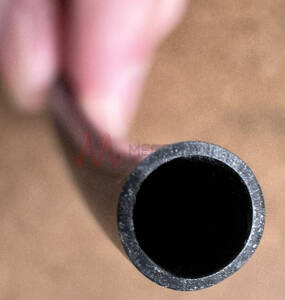

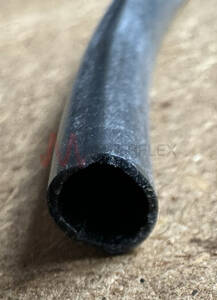

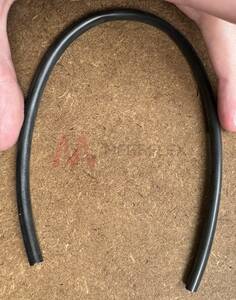

Unreinforced Flexible Black PVC/NBR Tube for Backflow of Hydrocarbons

Product Code: PVCNIT

Description

PVC (polyvinyl chloride) and NBR (nitrile) rubber blend tube offers good weather resistance and improved resistance to hydrocarbons, making it an ideal choice for a variety of applications. Moreover, its recyclable nature underscores a commitment to environmental responsibility.

Features and Applications

Designed for the unpressurised transport of air and fluids, this tube is particularly effective in the transfer and backflow of certain hydrocarbons, where its enhanced resistance to hydrocarbons plays a critical role.

Properties

Notable for its good weather resistance and improved hydrocarbon resistance, this tube ensures durability and reliability in challenging environments.
Technical Data reveals a nominal density of 1.29, with a tensile strength >15 Mpa and elongation at break >320%, indicating strong durability and flexibility. The standard black colour aids in minimising visible staining, while the recommended connection method of a nipple with lug clamp or band clamp facilitates secure installations.
Customisation Options (minimum order quantities apply): Cut-to-length services, Additives: Anti-UV, Antibacterial. Bore Finish: Smooth Shore Hardness: 74 Shore A

Temperature

-30°C to 50°C

Applications

Industrial Manufacturing
Chemical Industry
Agricultural
Environmental
Automotive
Construction
Cable Protection
Marine

Certification

ISO R 868
ISO 1183
ISO R 527

Suitable Media

Air
Fluids
Hydrocarbons

Construction

Wall: PVC/NBR

Available Colours

Black

Part	Inner Diameter	Outer Diameter	Wall Thickness	Weight	Length	Availability

PVCNIT002004	2	4	1	12	250	Production
PVCNIT002006	2	6	2	32	250	Production
PVCNIT003005	3	5	1	16	200	Production
PVCNIT003006	3	6	1.5	27	250	Production
PVCNIT004006	4	6	1	20	100	Production
PVCNIT004007	4	7	1.5	33	100	Production
PVCNIT004008	4	8	2	49	100	Production
PVCNIT004009	4	9	2.5	66	100	Production
PVCNIT005007	5	7	1	24	100	Production
PVCNIT005008	5	8	1.5	39	100	Production
PVCNIT005009	5	9	2	57	100	Production
PVCNIT005010	5	10	2.5	76	100	Production
PVCNIT005015	5	15	5	203	25	Production
PVCNIT006008	6	8	1	28	100	Production
PVCNIT006009	6	9	1.5	46	100	Production
PVCNIT006010	6	10	2	65	100	Production
PVCNIT006012	6	12	3	109	50	Production
PVCNIT006018	6	18	6	292	25	Production
PVCNIT007010	7	10	1.5	52	100	Production
PVCNIT007012	7	12	2.5	96	50	Production
PVCNIT007014	7	14	3.5	149	50	Production
PVCNIT008010	8	10	1	36	100	Production
PVCNIT008011	8	11	1.5	58	100	Production
PVCNIT008012	8	12	2	81	100	Production
PVCNIT008014	8	14	3	134	50	Production
PVCNIT008016	8	16	4	194	25	Production
PVCNIT008020	8	20	6	340	25	Production
PVCNIT009012	9	12	1.5	64	50	Production
PVCNIT009013	9	13	2	89	50	Production
PVCNIT009014	9	14	2.5	116	50	Production
PVCNIT009018	9	18	4.5	246	25	Production
PVCNIT010013	10	13	1.5	70	50	Production
PVCNIT010014	10	14	2	97	50	Production
PVCNIT010017	10	17	3.5	191	25	Production
PVCNIT010018	10	18	4	227	25	Production
PVCNIT010020	10	20	5	304	25	Production
PVCNIT010025	10	25	7.5	532	25	Production
PVCNIT011015	11	15	2	105	50	Production
PVCNIT012016	12	16	2	113	50	Production
PVCNIT012017	12	17	2.5	147	50	Production
PVCNIT012021	12	21	4.5	301	25	Production
PVCNIT013023	13	23	5	365	25	Production
PVCNIT014018	14	18	2	130	25	Production
PVCNIT014023	14	23	4.5	337	25	Production
PVCNIT015020	15	20	2.5	177	25	Production
PVCNIT015021	15	21	3	219	25	Production
PVCNIT016020	16	20	2	146	25	Production
PVCNIT016026	16	26	5	425	25	Production
PVCNIT018024	18	24	3	255	25	Production
PVCNIT020025	20	25	2.5	228	25	Production
PVCNIT020026	20	26	3	279	25	Production
PVCNIT021026	21	26	2.5	238	25	Production
PVCNIT022029	22	29	3.5	362	25	Production
PVCNIT027034	27	34	3.5	432	25	Production
PVCNIT036043	36	43	3.5	560	25	Production
PVCNIT040048	40	48	4	713	25	Production
PVCNIT047055	47	55	4	826	25	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
