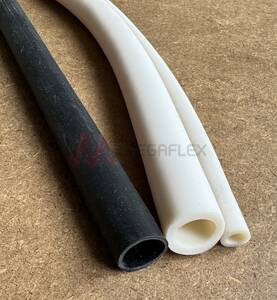

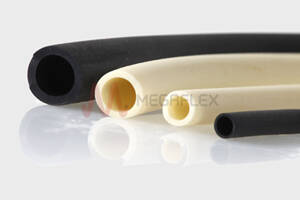

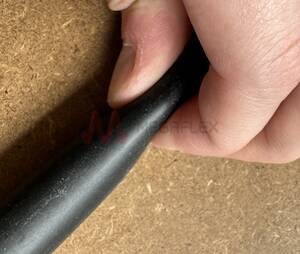

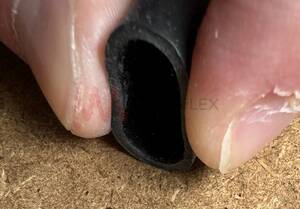

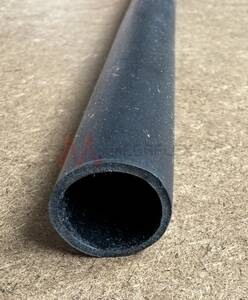

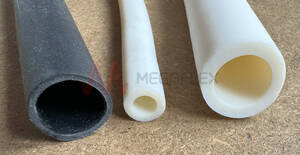

Santoprene (TPE) Unreinforced Black Tube for Fluids and Automotive
Product Code: TPE78A
Description
Santoprene®extruded tube is engineered for its excellent weather resistance and very good chemical resistance, it offers qualities similar to many vulcanised rubbers, making it a reliable and durable choice for various applications.
Features and Applications
Designed for the unpressurised transport of air and fluids, this tube finds extensive use in diverse industries, including automotive applications. Its excellent weather and chemical resistance make it suitable for environments requiring materials that can withstand harsh conditions.Properties
The tube features excellent weather resistance and very good chemical resistance, characteristics that are comparable to vulcanised rubbers. With a nominal density of 0.98. Its tensile strength of >8.3 Mpa and elongation at break of >375% indicate its durability and flexibility. The standard black colour is practical for a variety of applications, and it can withstand peak temperatures up to +110°C.The recommended method for secure and effective connections is a nipple with lug clamp or band clamp, ensuring reliable integration into systems.
Customisation Options (minimum order quantities apply): Other solid colours. Bore Finish: Smooth Shore Hardness: 78 Shore A
Temperature
- -40°C to 90°C, intermittently as high as 110°C
Certification
- ISO R 868
- ISO R 527
- ISO 37
- UL94 HB
- FMV SS 302
- NF ISO 3795
Suitable Media
- Air
- Liquid
Construction
- Wall: Santoprene
Applications
- Automotive
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Weight | Length | Availability |
|---|---|---|---|---|---|---|
| TPE78A002005 | 2 | 5 | 1.5 | 16 | 250 | Production |
| TPE78A003005 | 2.5 | 5 | 1.25 | 14 | 250 | Production |
| TPE78A003006X | 3 | 6 | 1.5 | 21 | 250 | Production |
| TPE78A003006 | 3.2 | 6.4 | 1.6 | 24 | 200 | Production |
| TPE78A003008 | 3.2 | 8 | 2.4 | 41 | 250 | Production |
| TPE78A004007 | 3.5 | 7 | 1.75 | 28 | 100 | Production |
| TPE78A004006 | 4 | 6 | 1 | 15 | 100 | Production |
| TPE78A004006X | 4 | 6.3 | 1.15 | 18 | 100 | Production |
| TPE78A004008 | 4 | 8 | 2 | 37 | 100 | Production |
| TPE78A005007 | 4.6 | 7 | 1.2 | 21 | 100 | Production |
| TPE78A005008X | 4.8 | 8 | 1.6 | 32 | 100 | Production |
| TPE78A005008 | 5 | 7.5 | 1.25 | 24 | 100 | Production |
| TPE78A006009 | 6 | 9 | 1.5 | 35 | 50 | Production |
| TPE78A006010X | 6 | 10 | 2 | 49 | 50 | Production |
| TPE78A006012 | 6 | 12 | 3 | 83 | 25 | Production |
| TPE78A006010 | 6.4 | 9.6 | 1.6 | 39 | 50 | Production |
| TPE78A008011 | 7.5 | 10.5 | 1.5 | 42 | 50 | Production |
| TPE78A008012 | 8 | 12 | 2 | 62 | 50 | Production |
| TPE78A008013 | 8 | 12.8 | 2.4 | 77 | 50 | Production |
| TPE78A010014X | 9.6 | 14.4 | 2.4 | 89 | 50 | Production |
| TPE78A010014 | 10 | 14 | 2 | 74 | 50 | Production |
| TPE78A010018 | 10 | 18 | 4 | 172 | 25 | Production |
| TPE78A010020 | 10 | 20 | 5 | 231 | 25 | Production |
| TPE78A012017 | 12 | 17 | 2.5 | 112 | 25 | Production |
| TPE78A013020 | 12.7 | 20 | 3.65 | 184 | 25 | Production |
| TPE78A015021 | 15 | 21 | 3 | 166 | 25 | Production |
| TPE78A016024 | 16 | 24 | 4 | 246 | 25 | Production |
| TPE78A019029 | 19 | 28.6 | 4.8 | 352 | 25 | Production |
| TPE78A020027 | 20 | 27 | 3.5 | 253 | 25 | Production |
| TPE78A020030 | 20 | 30 | 5 | 385 | 25 | Production |
| TPE78A025035 | 25 | 35 | 5 | 462 | 25 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
