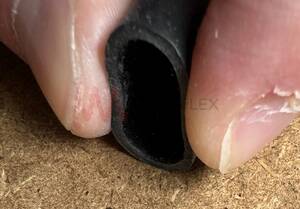

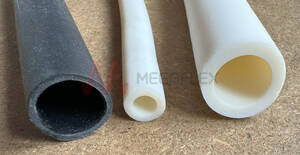

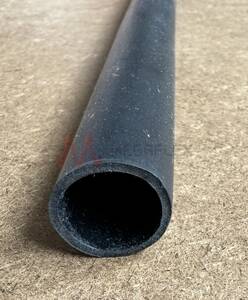

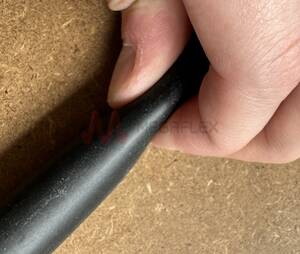

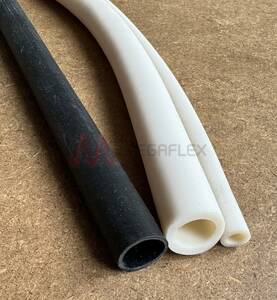

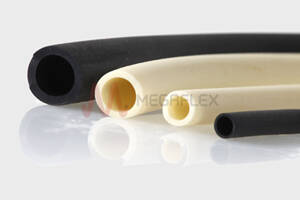

Semi-rigid Santoprene (TPE) Unreinforced Black Tube for Fluids and Automotive
Product Code: TPE93A
Description
Semi-rigid Santoprene®extruded tube is specifically engineered for its excellent weather resistance and very good chemical resistance, with characteristics that closely mimic those of many vulcanised rubbers, offering a durable and reliable option for a wide range of applications.
Features and Applications
Designed for the unpressurised transport of air and fluids, this Santoprene® tube is particularly beneficial in the automobile industry. Its semi-rigidity, coupled with excellent weather and chemical resistance, makes it a preferred choice for applications requiring robust material performance.Properties
The tube exhibits semi-rigidity, excellent weather resistance, and very good chemical resistance, mirroring the qualities of vulcanised rubbers. Boasts a nominal density of 0.96. With a tensile strength of >15.9 Mpa and an elongation at break of >530%, it demonstrates significant durability and flexibility. The standard black colour is practical for various applications, and it can withstand peak temperatures up to +110°C.The recommended method for secure and effective connections is a nipple with lug clamp or band clamp, ensuring reliable integration into systems.
Customisation Options (minimum order quantities apply): Other solid colours, Braided versions. Bore Finish: Smooth Shore Hardness: 93 Shore A
Temperature
- -40°C to 90°C, intermittently as high as 110°C
Certification
- ISO R 868
- ISO R 527
- ISO 37
- UL94 HB
- FMV SS 302
- NF ISO 3795
Suitable Media
- Air
- Liquid
Construction
- Wall: Santoprene
Applications
- Automotive
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Weight | Length | Availability |
|---|---|---|---|---|---|---|
| TPE93A002005 | 2 | 5 | 1.5 | 16 | 250 | Production |
| TPE93A003005 | 2.5 | 5 | 1.25 | 14 | 250 | Production |
| TPE93A003006 | 3 | 6 | 1.5 | 20 | 250 | Production |
| TPE93A003006X | 3.2 | 6.4 | 1.6 | 23 | 200 | Production |
| TPE93A003008 | 3.2 | 8 | 2.4 | 41 | 250 | Production |
| TPE93A004007 | 3.5 | 7 | 1.75 | 28 | 100 | Production |
| TPE93A004006 | 4 | 6 | 1 | 15 | 100 | Production |
| TPE93A004006X | 4 | 6.3 | 1.15 | 18 | 100 | Production |
| TPE93A004008 | 4 | 8 | 2 | 36 | 100 | Production |
| TPE93A005007 | 4.6 | 7 | 1.2 | 21 | 100 | Production |
| TPE93A005008X | 4.8 | 8 | 1.6 | 31 | 100 | Production |
| TPE93A005008 | 5 | 7.5 | 1.25 | 24 | 100 | Production |
| TPE93A006009 | 6 | 9 | 1.5 | 34 | 50 | Production |
| TPE93A006010 | 6 | 10 | 2 | 48 | 50 | Production |
| TPE93A006012 | 6 | 12 | 3 | 81 | 25 | Production |
| TPE93A006010X | 6.4 | 9.6 | 1.6 | 39 | 50 | Production |
| TPE93A008011 | 7.5 | 10.5 | 1.5 | 41 | 50 | Production |
| TPE93A008012 | 8 | 12 | 2 | 60 | 50 | Production |
| TPE93A008013 | 8 | 12.8 | 2.4 | 75 | 50 | Production |
| TPE93A010014X | 9.6 | 14.4 | 2.4 | 87 | 50 | Production |
| TPE93A010014 | 10 | 14 | 2 | 72 | 50 | Production |
| TPE93A010018 | 10 | 18 | 4 | 168 | 25 | Production |
| TPE93A010020 | 10 | 20 | 5 | 226 | 25 | Production |
| TPE93A012017 | 12 | 17 | 2.5 | 109 | 25 | Production |
| TPE93A013020 | 12.7 | 20 | 3.65 | 180 | 25 | Production |
| TPE93A015021 | 15 | 21 | 3 | 163 | 25 | Production |
| TPE93A016024 | 16 | 24 | 4 | 241 | 25 | Production |
| TPE93A019029 | 19 | 28.6 | 4.8 | 344 | 25 | Production |
| TPE93A020027 | 20 | 27 | 3.5 | 248 | 25 | Production |
| TPE93A020030 | 20 | 30 | 5 | 377 | 25 | Production |
| TPE93A025035 | 25 | 35 | 5 | 452 | 25 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
