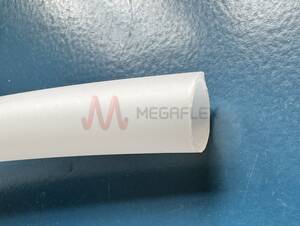

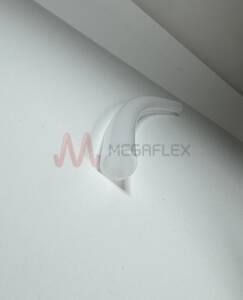

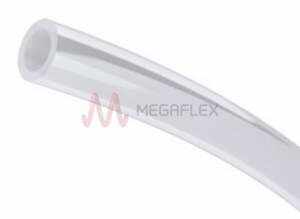

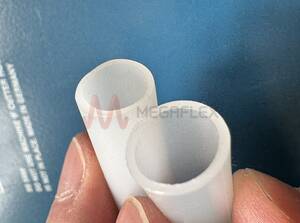

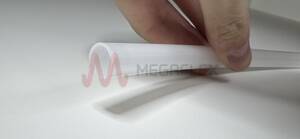

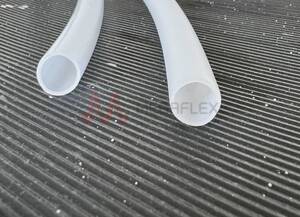

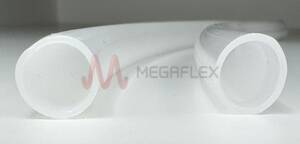

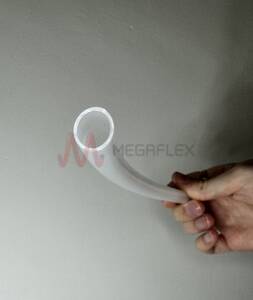

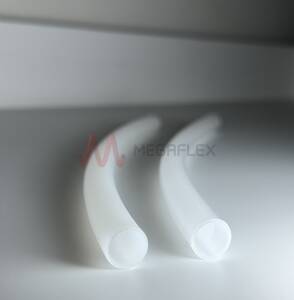

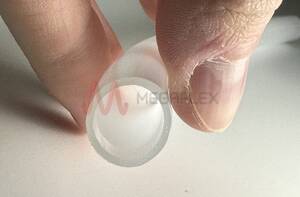

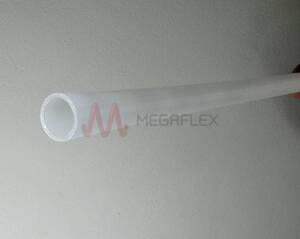

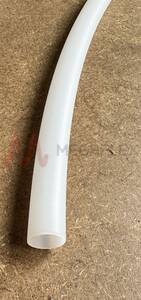

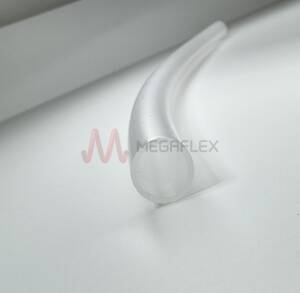

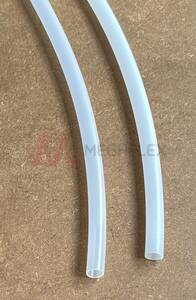

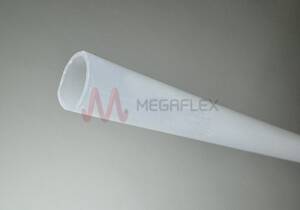

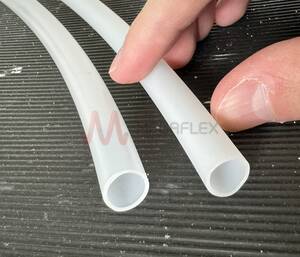

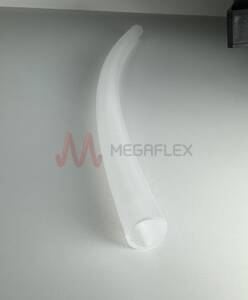

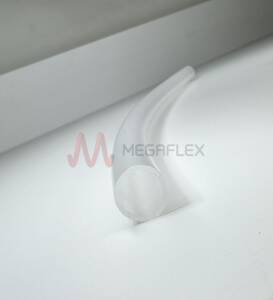

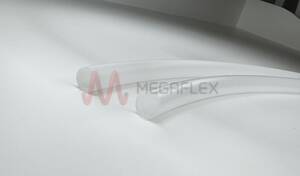

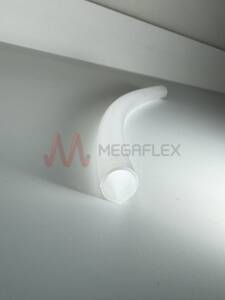

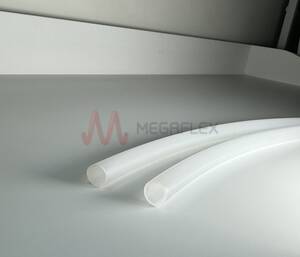

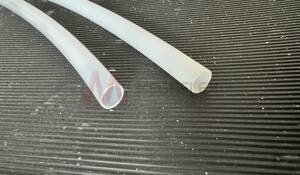

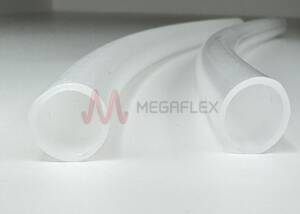

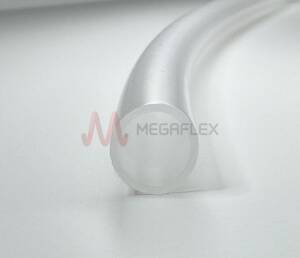

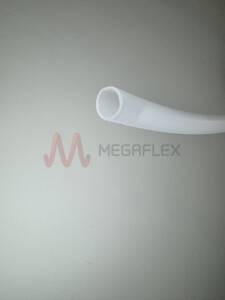

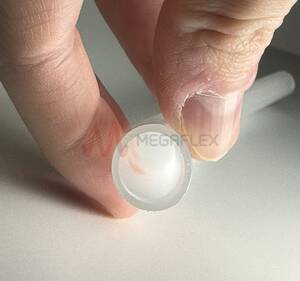

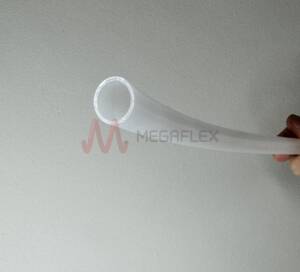

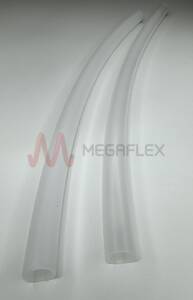

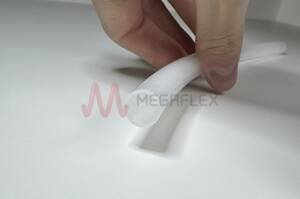

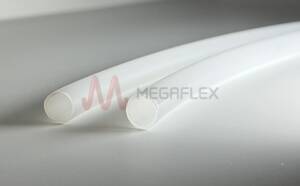

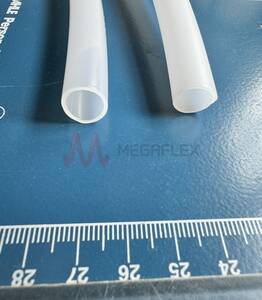

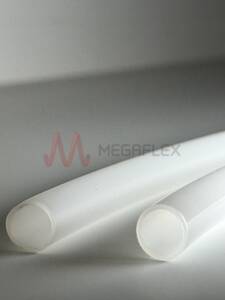

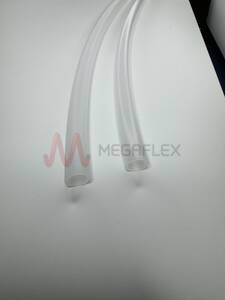

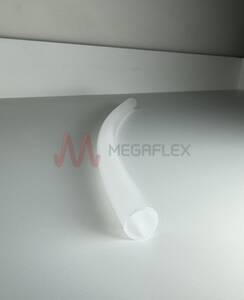

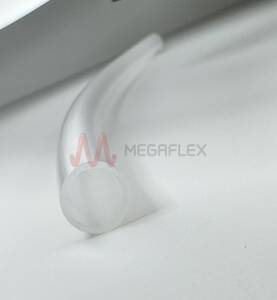

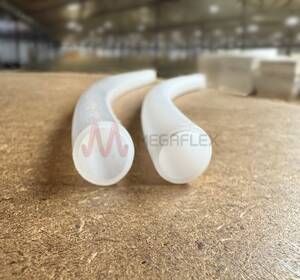

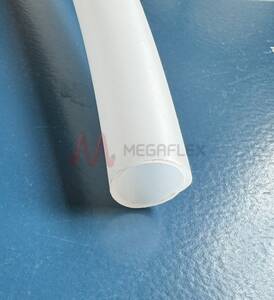

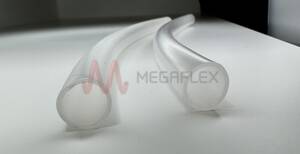

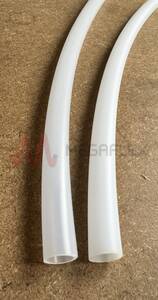

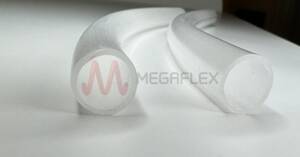

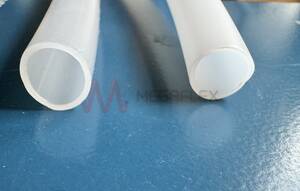

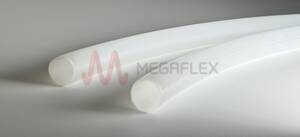

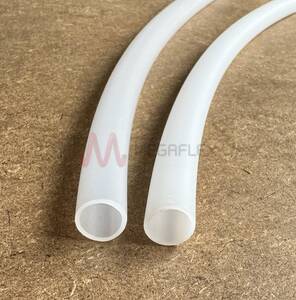

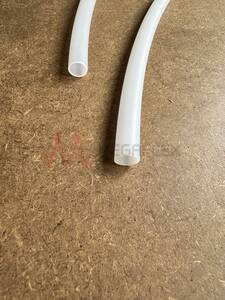

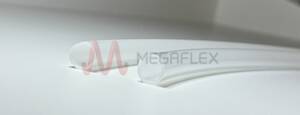

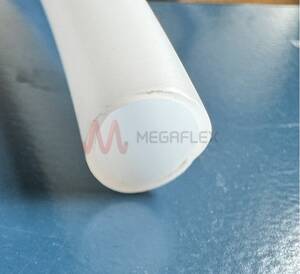

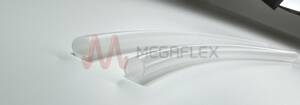

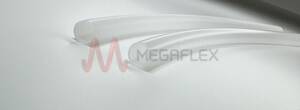

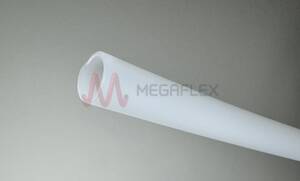

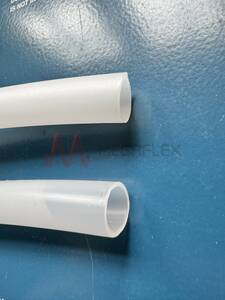

Unreinforced Polyester-Polyurethane Translucent Calibrated Tube for Compressed Air
Product Code: PU98A
Description
Polyester-polyurethane extruded and calibrated translucent tube is designed for resistance to abrasion, a calibrated structure for precision, a small bending radius for flexibility in installation, and robust resistance to both UV light and hydrocarbons, making it a durable choice for various industrial environments.
Features and Applications
Geared towards the pressurised transport of compressed air, gas, and lubricant, this tube plays a vital role in sectors focused on maintenance, control, process, and instrumentation. Its good abrasion resistance, coupled with a calibrated design and small bending radius, provides an efficient and reliable solution.Properties
Characterised by its excellent resistance to abrasion, this tube also features a small bending radius and good resistance to UV and hydrocarbons. A nominal density of 1.22. Its tensile strength exceeds 50 Mpa, and it can elongate over 550%, highlighting its durability and flexibility.Technical Data supports its quality, with recommended connections being a quick-fit connector for easy and efficient installations.
Customisation Options (minimum order quantities apply): Other solid colours, Sheathed versions. Bore Finish: Smooth Shore Hardness: 98 Shore A
Temperature
- -30°C to 60°C
Applications
- Industrial Manufacturing
- Chemical Industry
- Agricultural
- Environmental
- Automotive
- Construction
- Cable protection
- Marine
Certification
- DIN 53505
- DIN 53479
- DIN 53504 S2
- DIN 53504
Suitable Media
- Compressed Air
- Gas
- Lubricant
Available Colours
- Translucent
Construction
- Wall: PU
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Colour | Availability |
|---|---|---|---|---|---|---|---|---|---|---|
| PU98A003004 | 2.5 | 4 | 0.75 | 11 | 35 | 15 | 9 | 100 | Clear | Production |
| PU98A004006 | 4 | 6 | 1 | 10 | 30 | 25 | 19 | 100 | Clear | Production |
| PU98A006008 | 5.5 | 8 | 1.25 | 8 | 26 | 40 | 32 | 100 | Clear | Production |
| PU98A007010 | 7 | 10 | 1.5 | 8 | 30 | 40 | 49 | 100 | Clear | Production |
| PU98A008012 | 8 | 12 | 2 | 7 | 22 | 55 | 77 | 100 | Clear | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
