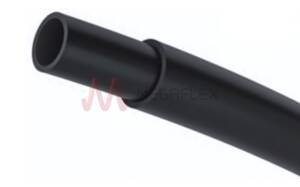

Antistatic Nylon Tube with a HDPE Semi-Conductor Sheath for Petrochemical
Product Code: HDPEPA
Description
Antistatic Nylon (polyamide) extruded and calibrated tube with a high-density polyethylene semi-conductor sheath offers good resistance to impacts and abrasion, alongside very good UV resistance, making it suitable for challenging industrial conditions.
Features and Applications
Optimised for the pressurised transport of compressed air and lubricant within ATEX environments, this tube system is critical in sectors requiring precise maintenance and control, especially where explosive atmospheres present. Its antistatic and semi-conductor properties ensure compliance with safety standards.Properties
The tube boasts a calibrated antistatic internal structure and semi-conductor external sleeving for enhanced safety. It provides good impact and abrasion resistance, with very good UV resistance, contributing to its durability and reliability.The recommended connection for this tube is a quick-fit connector, enabling easy and secure installations.
Customisation Options (minimum order quantities apply): Other colours, Other sheaths, Other qualities of interior tube. Internal Tube Colours: Black Bore Finish: Smooth Sheath: HDPE
Temperature
- -20°C to 60°C
Applications
- Maintenance
- Control
- Process
- Instrumentation
- Petrochemical
Suitable Media
- Compressed Air
- Lubricant
- ATEX Environment
Certification
- ATEX Sector II G/D
- IEC 62631
- ASTM D 991
Electrical Resistance
- Antistatic to 106 Ω/m
Available Colours
- Black
Construction
- Wall: PA
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability | Sheath O.D. | Sheath Wall |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HDPEPA004006 | 4 | 6 | 1 | 22 | 67 | 35 | 52 | 100 | Production | 8 | 1 |
| HDPEPA006008 | 6 | 8 | 1 | 16 | 48 | 40 | 68 | 100 | Production | 10 | 1 |
| HDPEPA008010 | 8 | 10 | 1 | 12 | 37 | 60 | 86 | 100 | Production | 12 | 1 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
