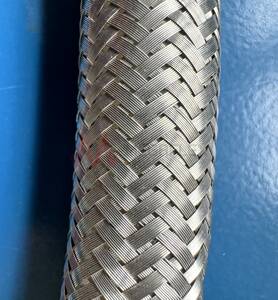

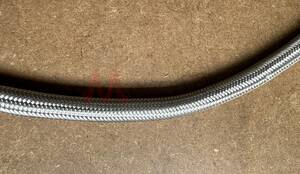

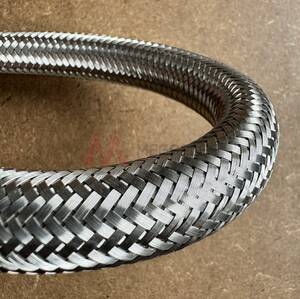

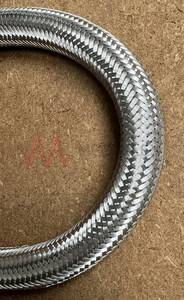

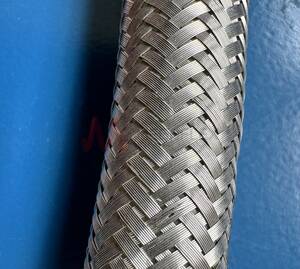

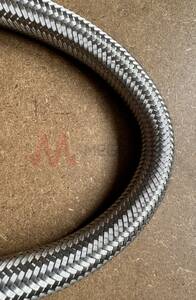

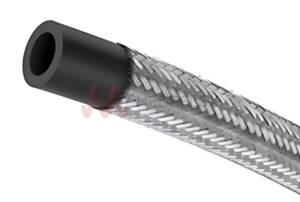

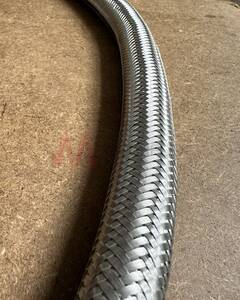

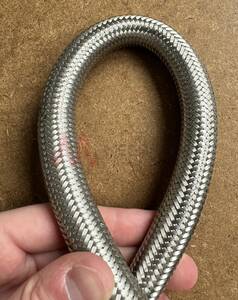

Black EPDM Rubber Tube with Stainless Steel Overbraid for Potable Water
Product Code: SES
Description
Our EPDM rubber extruded tube, reinforced with stainless steel wire braid, is an ideal choice for a wide range of applications across various sectors such as sanitary, and agriculture. Its construction not only ensures durability and reliability but also provides excellent resistance to corrosion and ageing, alongside a solid resistance to pressure, making it a robust solution for water transport needs.
Features and Applications
Primarily used for the pressurised transport of potable water, this tube serves a critical role in sanitary applications, and agriculture, where the integrity and safety of water supply are paramount. Its excellent resistance to corrosion and ageing ensures long-term reliability and functionality in these applications.Properties
Compliance with standards such as ACS, WRAS, and CSTB underlines the tube's suitability for potable water transport, reflecting its adherence to rigorous health and safety regulations. The AISI 304 stainless steel braid enhances the tube's structural integrity, providing additional resistance to pressure and external damages.For connections, a nipple with a low-pressure crimping ferrule is recommended, ensuring a secure and efficient assembly in water transport systems. This design specification affirms the tube's capacity to handle the demands of pressurised water transport, ensuring a dependable and safe water supply solution.
Customisation Options (minimum order quantities apply): Other solid colours, Other sheaths, Other braids, Fitted with crimped connectors, Other qualities of interior tube. Internal Tube Colours: Black Bore Finish: Smooth Sheath: Stainless Steel
Temperature
- -20°C to 90°C
Certification
- ACS
- WRAS
- CSTB
Applications
- Sanitary
- Agriculture
Food Quality
- Suitable for potable water.
Construction
- Wall: EPDM Rubber
Suitable Media
- Potable Water
Available Colours
- Steel
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability | Braid O.D. | Braid Wall | Internal Tube Colours |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SES006009 | 6 | 8.7 | 1.35 | 16 | 110 | 40 | 85 | Production | 10 | 0.65 | Black | |
| SES009011 | 8.5 | 10.7 | 1.1 | 16 | 110 | 48 | 120 | Production | 12 | 0.65 | Black | |
| SES010013 | 9.5 | 12.7 | 1.6 | 16 | 110 | 60 | 150 | Production | 14 | 0.65 | Black | |
| SES012017 | 12 | 16.7 | 2.35 | 16 | 90 | 72 | 243 | Production | 18 | 0.65 | Black | |
| SES015021 | 15 | 20.7 | 2.85 | 16 | 80 | 88 | 335 | Production | 22 | 0.65 | Black | |
| SES020027 | 20 | 26.7 | 3.35 | 10 | 60 | 112 | 510 | Production | 28 | 0.65 | Black | |
| SES026034 | 26 | 33.7 | 3.85 | 10 | 45 | 140 | 755 | 30 | Production | 35 | 0.65 | Black |
| SES033042 | 33 | 41.7 | 4.35 | 6 | 40 | 170 | 1010 | 20 | Production | 43 | 0.65 | Black |
| SES040049 | 40 | 48.7 | 4.35 | 6 | 30 | 390 | 1085 | 20 | Production | 50 | 0.65 | Black |
| SES050060 | 50 | 59.7 | 4.85 | 6 | 30 | 490 | 1340 | 10 | Production | 61 | 0.65 | Black |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
