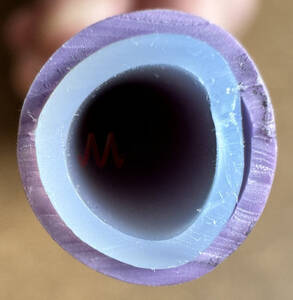

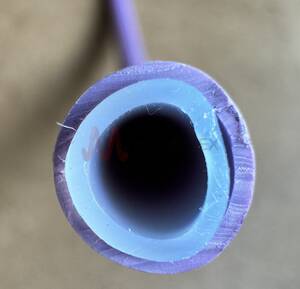

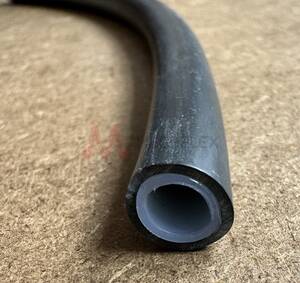

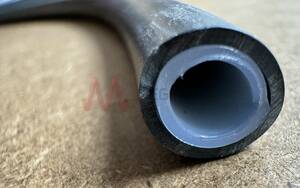

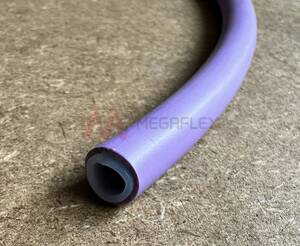

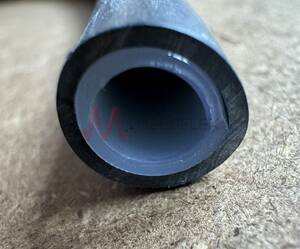

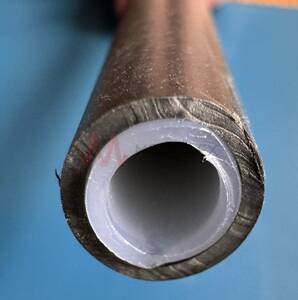

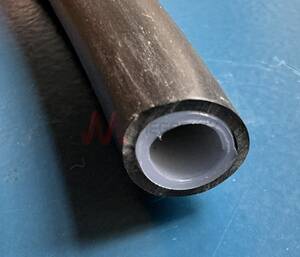

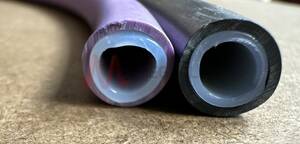

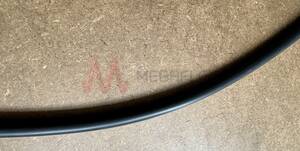

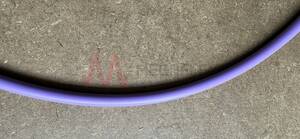

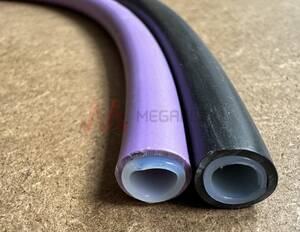

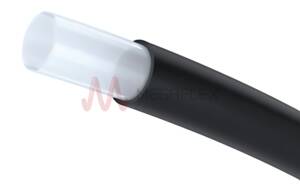

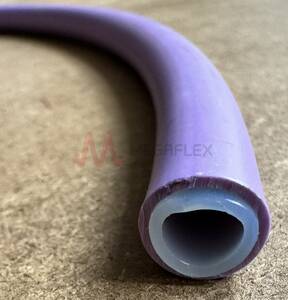

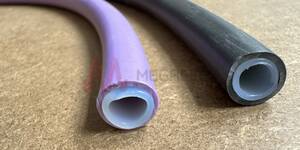

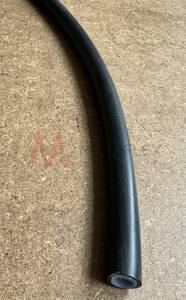

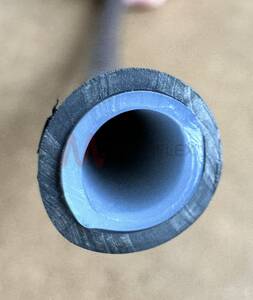

PTFE Extruded Tube with Black PVC Sheath for Medical, Pharmaceutical and Agriculture
Product Code: PTFEPVC
Description
Our PTFE (polytetrafluoroethylene) extruded tube with a (PVC) polyvinyl chloride sheath exhibits good resistance to impacts and abrasion, very good UV resistance, and excellent chemical resistance, ensuring safety and durability in various applications.
Features and Applications
Specially engineered for the transport of chemically aggressive fluids and gases, this tube with its protective sheath is extensively used in fields requiring high safety and performance standards, such as medical, pharmaceutical, agriculture, laboratory, and cosmetics. The sparkproof sheath and robust material properties make it suitable for a wide range of challenging environments.Properties
The combination of a sparkproof sheath and a PTFE tube offers excellent safety features, including good resistance to impacts and abrasion, very good UV resistance, and exceptional chemical resistance. The PTFE translucent tube paired with the black sheath, a non-flame propagating PVC type C2, enhances its utility and safety.The recommended method for secure and efficient connections is compression tube fittings, ensuring reliable integration into various systems.
Customisation Options (minimum order quantities apply): Other colours, Other sheaths, Other qualities of interior tube. Internal Tube Colours: Translucent Bore Finish: Smooth Sheath: PVC
Temperature
- -20°C to 90°C
Applications
- Medical
- Agriculture
- Pharmaceutical
- Laboratory
- Cosmetics
Suitable Media
- Aggressive Liquids
- Water
- Air
- Chemicals
- Gas
Food Quality
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
Certification
- FDA 21 CFR 177.1550
- NF C 32070
Construction
- Wall: PTFE
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability | Sheath O.D. | Sheath Wall | Internal Tube Colours |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PTFEPVC004006 | 4 | 6 | 1 | 15 | 60 | 40 | 66 | 100 | Production | 8 | 1 | Translucent |
| PTFEPVC006008 | 6 | 8 | 1 | 11 | 44 | 60 | 89 | 100 | Production | 10 | 1 | Translucent |
| PTFEPVC008010 | 8 | 10 | 1 | 9 | 36 | 80 | 111 | 100 | Production | 12 | 1 | Translucent |
| PTFEPVC010012 | 10 | 12 | 1 | 8 | 32 | 100 | 184 | 100 | Production | 14 | 1 | Translucent |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
