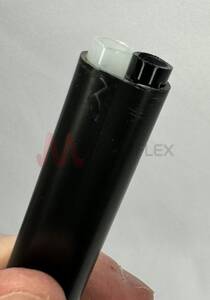

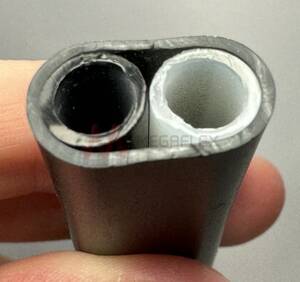

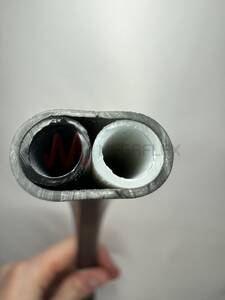

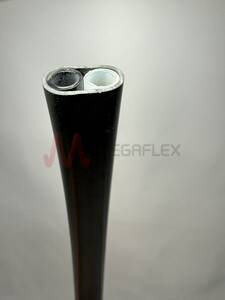

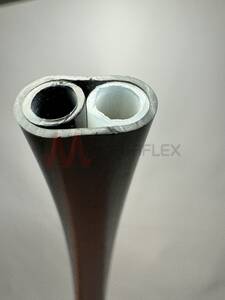

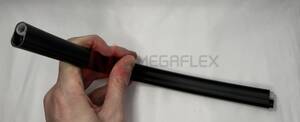

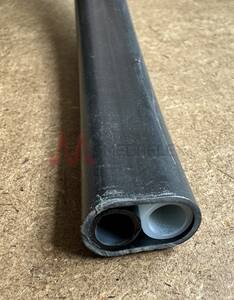

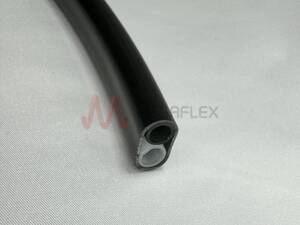

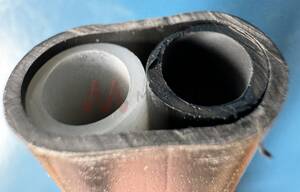

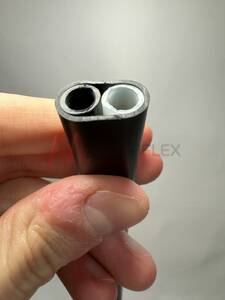

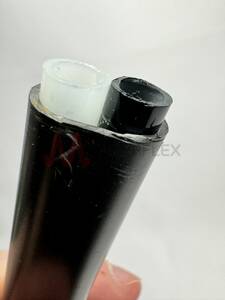

Twin PTFE Extruded Tubes with Black PVC Sheath for Medical and Pharmaceutical
Product Code: PTFEPVCT
Description
Our Polytetrafluoroethylene (PTFE) extruded tubes with a flat polyvinyl chloride (PVC) sheath
Features and Applications
Designed for the pressurised transport of chemically aggressive fluids and gas, these tubes are indispensable in sectors that demand high chemical resistance and safety, such as medical, pharmaceutical, agriculture, laboratory, and cosmetics. The spark-proof sheath and the tube's resistance properties ensure safety and durability in challenging environments.Properties
The tubes feature a spark-proof sheath to enhance safety in environments where sparks could pose a risk. They exhibit good resistance to impacts and abrasion, very good UV resistance, and excellent chemical resistance, making them suitable for a wide range of demanding applications.The recommended method for secure and efficient connections is compression tube fittings, offering a reliable solution for integrating these tubes into various systems.
Customisation Options (minimum order quantities apply): Other colours, Other sheaths, Other interior tubes. Internal Tube Colours: Translucent Bore Finish: Smooth Sheath: PVC
Temperature
- -20°C to 90°C
Applications
- Medical
- Pharmaceutical
- Agriculture
- Laboratory
- Cosmetics
Suitable Media
- Chemicals
- Gas
- Aggressive Chemicals
- Aggressive Liquid
Food Quality
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
Certification
- FDA 21 CFR 177.1550
- NF C 32070
Construction
- Wall: PTFE
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability | External Sheath O.D. | External Sheath Wall | Internal Tube Colours |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PTFEPVCT004006 | 4 | 6 | 1 | 15 | 60 | 40 | 128 | 100 | Production | 1 | Translucent | |
| PTFEPVCT006008 | 6 | 8 | 1 | 11 | 44 | 65 | 173 | 100 | Production | 1 | Translucent | |
| PTFEPVCT008010 | 8 | 10 | 1 | 9 | 32 | 80 | 215 | 100 | Production | 1 | Translucent |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
