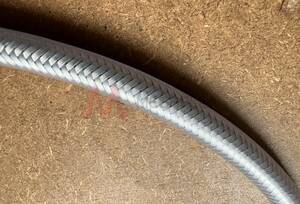

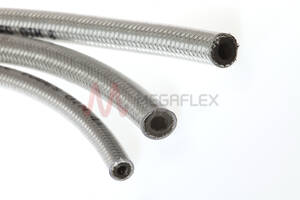

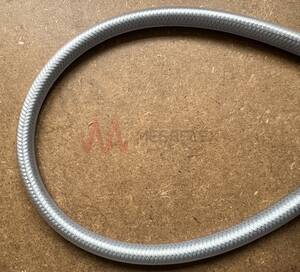

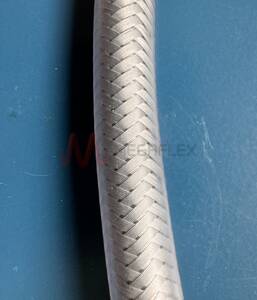

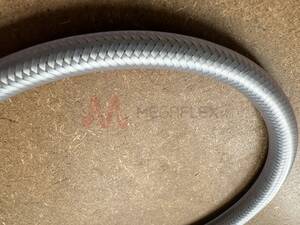

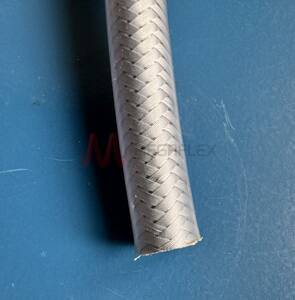

EPDM Rubber Tube with Galvanised Steel Braid and Clear PVC Sheath for Maintenance
Product Code: EGSOPVC
Description
EPDM rubber extruded tube with Galvanised steel wire braid and polyvinyl chloride sheath is recognised for its good resistance to oils and gases, flexibility, smooth external surface, and resistance to pressure, ensuring reliable performance in various industrial environments.
Features and Applications
Designed for the pressurised transport of compressed air and lubricant, this tube is crucial in fields requiring high precision and safety, including maintenance, control, process management, and instrumentation. Its construction provides durability and resistance to challenging conditions.Properties
The tube offers good resistance to oils and gases, flexibility for easy handling, a smooth external surface for reduced friction, and resistance to pressure for durability. The Galvanised steel braid reinforces the tube, enhancing its strength and resistance to external pressures.The recommended method for secure and efficient connections is a nipple with lug clamp or band clamp, providing a reliable solution for system integration.
Customisation Options (minimum order quantities apply): Other sheaths, Other braids, Fitted with crimped connectors, Other qualities of interior tube. Internal Tube Colours: Black Bore Finish: Smooth Sheath: PVC
Temperature
- -20°C to 70°C
Applications
- Maintenance
- Control
- Process
- Instrumentation instrumentation

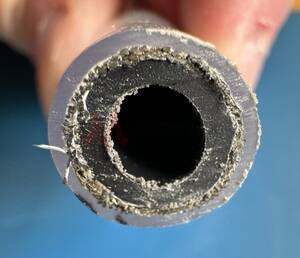

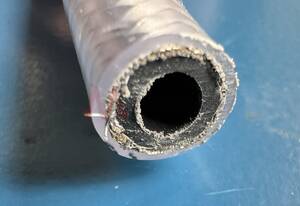

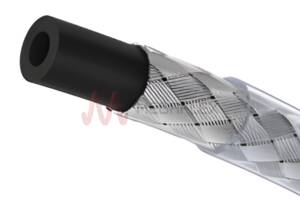

Construction
- Inner Layer: EPDM Rubber
- Outer Cover: Galvanised Steel
Suitable Media
- Air
- Liquid
- Lubricant
Available Colours
- Clear
- Steel
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Colour | Availability | Sheath O.D. | Sheath Wall | Braid O.D. | Braid Wall | Internal Tube Colours |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EGSOPVC004007 | 4 | 7 | 1.5 | 42 | 127 | 35 | 95 | 100 | Steel, Clear | Production | 10.3 | 1 | 8.3 | 0.65 | Black |
| EGSOPVC006009 | 6 | 8.7 | 1.35 | 37 | 112 | 40 | 120 | 100 | Steel, Clear | Production | 12 | 1 | 10 | 0.65 | Black |
| EGSOPVC008012 | 8 | 11.5 | 1.75 | 37 | 112 | 48 | 180 | 100 | Steel, Clear | Production | 14.8 | 1 | 12.8 | 0.65 | Black |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
