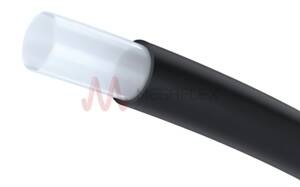

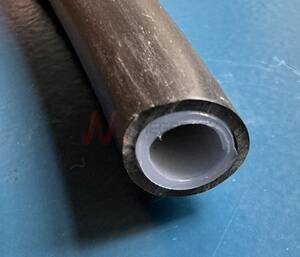

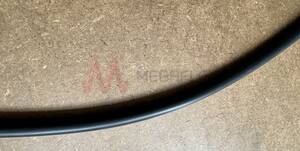

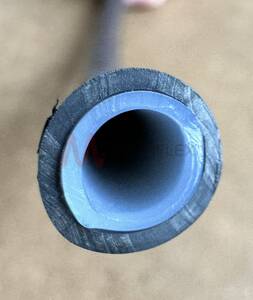

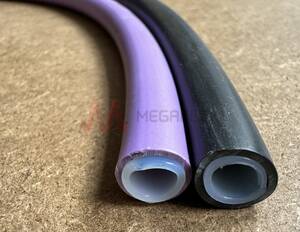

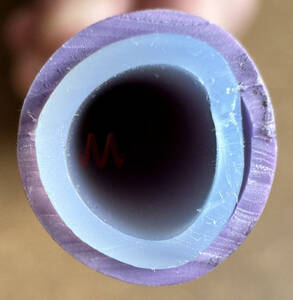

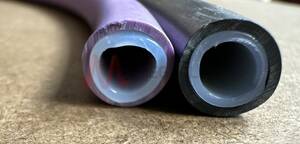

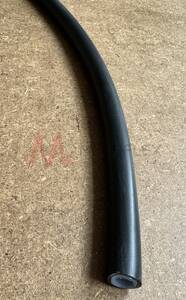

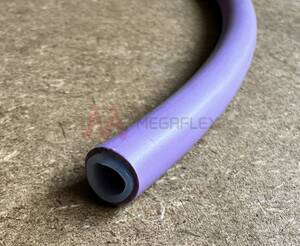

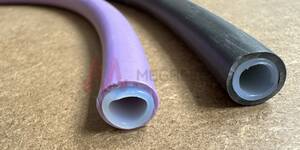

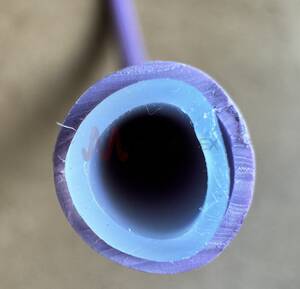

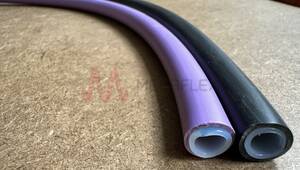

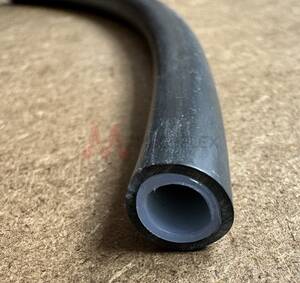

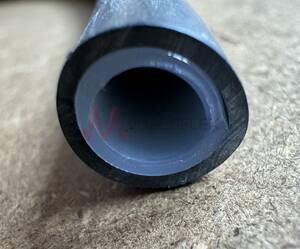

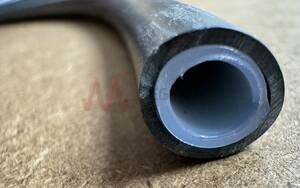

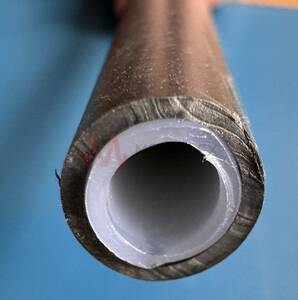

HDPE Calibrated Tube with Black Sparkproof PVC Sheath for Compressed Air
Product Code: HDPEPVC
Description
Our HDPE (high-density polyethylene) extruded and calibrated tube with a PVC (polyvinyl chloride) sheath is calibrated for precise operation, and the combination is noted for its good resistance to impacts, abrasion, very good UV resistance, and chemical resistance, making it a versatile option across industrial applications.
Features and Applications
This tube system is essential for accurately transporting compressed air and lubricant in areas requiring high levels of maintenance and control. Its safety features and resistance properties make it ideal for a wide variety of industrial settings.Properties
With a sparkproof sheath and calibrated internal structure, the tube offers excellent protection and accurate flow. It provides good impact and abrasion resistance, alongside very good UV and chemical resistance, ensuring long-term durability and reliability. The recommended connection for this tube is a quick-fit connector, which facilitates easy and secure installation.Customisation Options (minimum order quantities apply): Other colours, Other sheaths, Other qualities of interior tube. Internal Tube Colours: Translucent Bore Finish: Smooth Sheath: PVC
Temperature
- -15°C to 50°C
Applications
- Maintenance
- Control
- Process
- Instrumentation
Suitable Media
- Compressed Air
- Lubricant
- Water
Certification
- NF C 32070
Construction
- Wall: HDPE
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability | Sheath O.D. | Sheath Wall | Internal Tube Colours |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HDPEPVC004006 | 4 | 6 | 1 | 33 | 100 | 35 | 46 | 100 | Production | 8 | 1 | Translucent |
| HDPEPVC006008 | 6 | 8 | 1 | 23 | 70 | 45 | 63 | 100 | Production | 10 | 1 | Translucent |
| HDPEPVC008010 | 8 | 10 | 1 | 18 | 55 | 72 | 77 | 100 | Production | 12 | 1 | Translucent |
| HDPEPVC010012 | 10 | 12 | 1 | 15 | 45 | 105 | 92 | 100 | Production | 14 | 1 | Translucent |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
