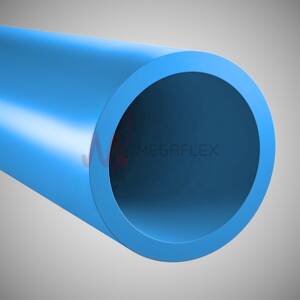

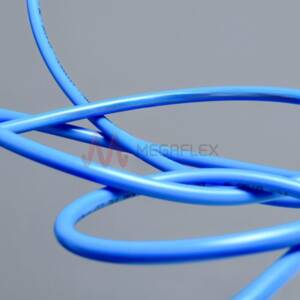

Master Tube PE-LD Dielectric Polyethylene Tubing Food Quality (Production only, Minimum Order Quantities apply)
Product Code: M19000127

Description
The Master-Tube PE-LD is a versatile polyethylene-based hose, offering dielectric properties and designed for a wide range of industrial applications. It is spiral-free and engineered for environments where both electrical conductivity and food safety are critical.
Features and Applications
Constructed from electrically conductive material, the Master-Tube PE-LD is approved for direct food contact, meeting stringent EU Directive 1935/2004, 10/2011, and FDA 21 CFR § 177.2600 - 21 CFR § 178.2010 standards. This makes it ideal for industries such as food and pharma, alongside applications in agriculture, automotive, plant and mechanical engineering, robotics and automation, and more. The hose is designed to be durable, with a calibrated outer diameter for precise fitting, and is particularly suited for conveying, lifting, and feeding technology, as well as in environments where dielectric properties are required.
Properties
The hose provides excellent chemical resistance, making it suitable for use with a wide variety of solvents and chemicals. It is halogen-free, hydrolysis-resistant, microbe-resistant, plasticiser-free, and free from paint wetting impairment substances (LABS). The Master-Tube PE-LD also features low water absorption, ensuring that it remains effective even in moisture-prone environments. Bore Finish: Smooth
Temperature
- -30°C to 70°C
Applications
- Pneumatics
- Agriculture
- Automotive
- Plant engineering
- Mechanical engineering
- Robotics
- Automation
- Semiconductor Industry
- Aerospace technology
- Chemical processing
- Plastics
- Conveying
Certification
- EU-Directive 10/2011
- FDA 21 CFR 177.2600
- FDA 21 CFR 178.2010
- RoHS
- REACH
Electrical Resistance
- Antistatic ✔
Food Quality
- Food Grade ✔
Available Colours
- Blue
Construction
- Wall: PE
Suitable Media
- Air
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Bend Radius | Weight | Length |
|---|---|---|---|---|---|---|---|
| M19000127-2x4 | 2 | 4 | 1 | 24 | 20 | 8.7 | 30 |
| M19000127-3x5 | 3 | 5 | 1 | 18 | 25 | 11.6 | 30 |
| M19000127-4x6 | 4 | 6 | 1 | 14 | 30 | 14.5 | 30 |
| M19000127-5x8 | 5 | 8 | 1.5 | 16 | 40 | 28.3 | 30 |
| M19000127-6x8 | 6 | 8 | 1 | 10 | 40 | 20.3 | 30 |
| M19000127-6x10 | 6 | 10 | 2 | 18 | 50 | 46.4 | 30 |
| M19000127-7x10 | 7 | 10 | 1.5 | 12 | 50 | 37 | 30 |
| M19000127-8x10 | 8 | 10 | 1 | 8 | 40 | 26.1 | 30 |
| M19000127-9x12 | 9 | 12 | 1.5 | 10 | 60 | 45.7 | 30 |
| M19000127-10x12 | 10 | 12 | 1 | 6 | 60 | 31.9 | 30 |
| M19000127-10x14 | 10 | 14 | 2 | 12 | 80 | 69.7 | 30 |
| M19000127-12x16 | 12 | 16 | 2 | 10 | 90 | 81.3 | 30 |
| M19000127-14x18 | 14 | 18 | 2 | 9 | 120 | 92.9 | 30 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
