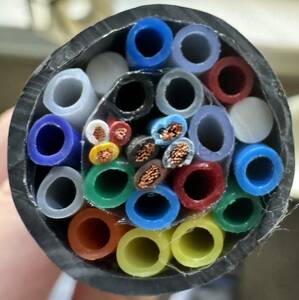

Multitube with 17 Nylon (PA) Tubes, 2 Nylon (PA) Rods and 7 Wires wrapped in PVC Sheath
Product Code: MULTI7W2R17T
Description
Nylon (Polyamide) extruded and calibrated tubes combined with two nylon (Polyamide) rods and seven (including grounder) wires individually sheathed in PVC all encased in a round PVC (polyvinyl chloride) sheath ensure accuracy, while the colour identification facilitates easy integration into existing systems. The spiral tube and cable assembly optimise the bending radius and flexibility, significantly simplifying and shortening cabling installation times.
Features and Applications
Designed for the transport of compressed air and control signals, this cable assembly is essential in fields requiring maintenance, control, process management, and instrumentation. Its calibrated tubes, combined with the spiral assembly, offer optimised flexibility and a simplified installation process, making it a versatile and efficient solution for integrating pneumatic and control systems.Properties
The assembly exhibits good UV resistance, ensuring longevity and performance reliability in diverse environments.The recommended connection is an electrical-pneumatic connector.
Customisation Options (subject to minimum order quantities): choices in tube and/or sheath colours, along with different cables, and variations in the qualities of interior tubes and external sheaths, accommodating specific application needs and requirements. Internal Tube Colours: Black, Red, Light Blue, Green, Grey, Yellow, Light Orange, Light Grey, Orange, Blue Bore Finish: Smooth
Temperature
- -20°C to 70°C
Applications
- Pneumatics
- Maintenance
- Control Instrumentation Systems
- Process Management
- Industrial Vehicles
- Aerospace
- Defense
- Renewable Energy Installations
- Automotive
- Manufacturing
Construction
- Inner Layer: Polyamide
- Outer Cover: PVC
Suitable Media
- Compressed Air
- Lubricant
Certification
- DIN 74324-1
- DIN 73378
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Availability | External Sheath O.D. | External Sheath Wall | Internal Tube Colours | Rods in Tube | Number of Wires | Grounding Wire? | Wire Material | Wire Sheath Material | Wire Sheath O.D. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| # | # | ||||||||||||||
| MULTI7W2R17T003004 | 2.7 | 4 | 0.5 | 23 | 77 | Production | 24 | 1.5 | Black, Red, Light Blue, Green, Grey, Yellow, Light Orange, Light Grey, Orange, Blue | 2 | 7 | No | Copper | PVC | 2 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
