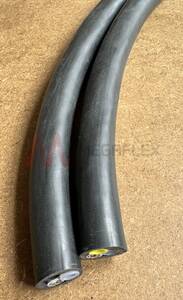

Cable assembled with 2 Nylon (PA) Tubes wrapped within PVC Sheath for Manufacturing
Product Code: MULTI1C2T
Description

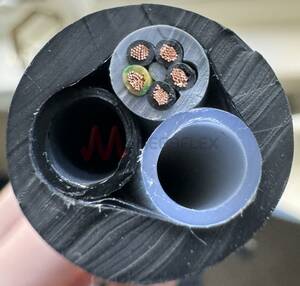

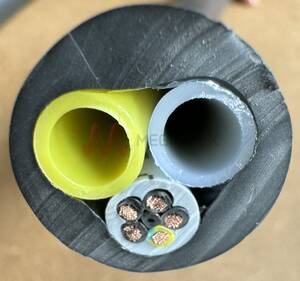

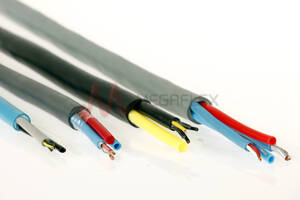

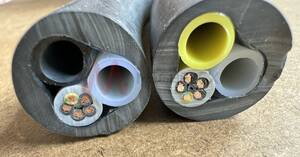

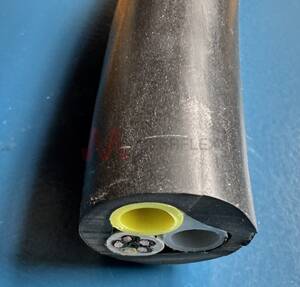

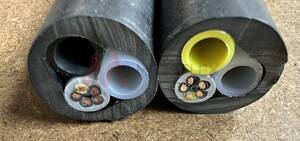

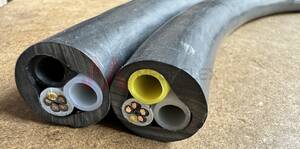

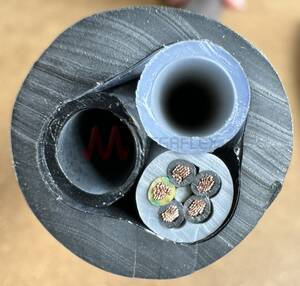

Nylon (Polyamide) extruded and calibrated tubes combined with a five (including grounder) wire cable and encased in a round PVC (polyvinyl chloride) sheath ensure accuracy, while the colour identification facilitates easy integration into existing systems. The spiral tube and cable assembly optimise the bending radius and flexibility, significantly simplifying and shortening cabling installation times.
Features and Applications
Designed for the transport of compressed air and control signals, this cable assembly is essential in fields requiring maintenance, control, process management, and instrumentation. Its calibrated tubes, combined with the spiral assembly, offer optimised flexibility and a simplified installation process, making it a versatile and efficient solution for integrating pneumatic and control systems.Properties
The assembly exhibits good UV resistance, ensuring longevity and performance reliability in diverse environments.The recommended connection is an electrical-pneumatic connector.
Customisation Options (subject to minimum order quantities): choices in tube and/or sheath colours, along with different cables, and variations in the qualities of interior tubes and external sheaths, accommodating specific application needs and requirements. Internal Tube Colours: Black, Clear Bore Finish: Smooth
Temperature
- -30°C to 70°C
Applications
- Pneumatics
- Manufacturing
- Automation
- Control Instrumentation Systems
- Process Management
- Aerospace
- Defense
- Renewable Energy Installations
- Automotive
- Industrial Maintenance
Construction
- Inner Layer: Polyamide
- Outer Cover: PVC
Suitable Media
- Comrpessed Air
- Control Signals
Certification
- DIN 74324-1
- DIN 73378
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Availability | External Sheath O.D. | Internal Tube Colours | Cable O.D. | Cable Colour | Number of Wires | Grounding Wire? | Rods in Cable | Wire Material | Wire Sheath Material | Wire Sheath O.D. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| # | # | |||||||||||||||||
| MULTI1C2T003004 | 2.7 | 4 | 0.5 | 33 | 77 | 20 | 120 | Production | 12.5 | Black, Translucent | 7 | Grey | 5 | Yes | 1 | Copper | PVC | 2 |
| MULTI1C2T004006 | 4 | 6 | 1 | 23 | 80 | 35 | 260 | Production | 16.5 | Black, Translucent | 7 | Grey | 5 | Yes | 1 | Copper | PVC | 2 |
| MULTI1C2T006008 | 6 | 8 | 1 | 18 | 58 | 45 | 370 | Production | 20.5 | Black, Translucent | 7 | Grey | 5 | Yes | 1 | Copper | PVC | 2 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
