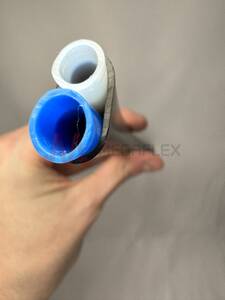

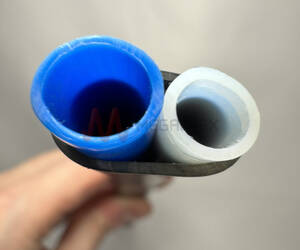

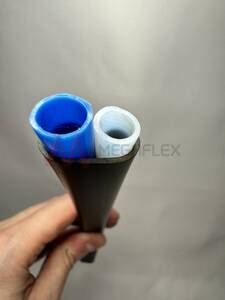

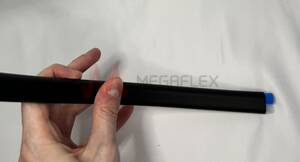

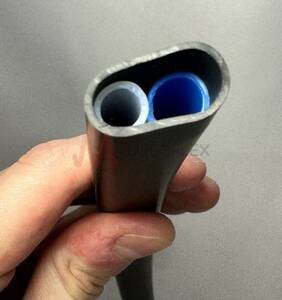

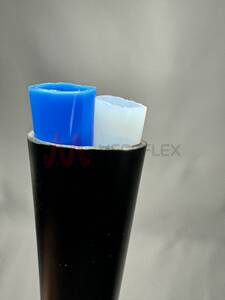

Polyamide and PTFE Duo-Tube with Black PVC Sheath for Manufacturing and Automation
Product Code: MULTI2T
Description
Nylon (Polyamide) extruded and calibrated tube and a PTFE tube with a flat PVC (polyvinyl chloride) sheath is designed for precise control, colour identification for easy system integration, a sparkproof sheath for enhanced safety, and exhibits good resistance to impacts and abrasion as well as very good UV resistance, ensuring durability and reliability in various environments.
Features and Applications
Specially crafted for the pressurised transport of compressed air and lubricant, this tube is crucial in fields requiring process management, and instrumentation. Its calibrated nature and sparkproof sheath make it a safe and precise option for industrial applications.Properties
The system offers good resistance to impacts and abrasion, ensuring longevity and durability in demanding environments. Very good UV resistance protects the tube from sun damage, making it suitable for outdoor applications.Technical Data includes being made from non-flame propagating PVC type C2, enhancing safety and performance.
The recommended connection method is a quick-fit connector for easy and secure installation.
Customisation Options (subject to minimum order quantities): Tube and/or sheath colours, Quality of interior tubes and external sheaths. Internal Tube Colours: Blue, Clear Bore Finish: Smooth
Temperature
- -20°C to 90°C
Applications
- Pneumatics
- Manufacturing
- Automation
- Automotive Industry
- Construction
- Mining
- Energy Sector
- Aerospace
- Defense
- Marine
- Shipbuilding
- Renewable Energy Installations
Construction
- Inner Layer: Polyamide, PTFE
- Outer Cover: PVC
Certification
- DIN 74324-1
- DIN 73378
- NF C 32070
Suitable Media
- Compressed Air
- Lubricant
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability | External Sheath O.D. | External Sheath Wall | Internal Tube Colours | Tube 2 I.D. | Tube 2 O.D. | Tube 2 Wall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MULTI2T008010 | 8 | 10 | 1 | 15 | 53 | 60 | 151 | 100 | Production | 1 | Blue, Translucent | 6 | 8 | 1 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
