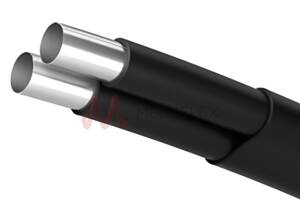

PolyAluTwin Malleable Twin Aluminium Tubes with MDPE Cover and Flat Black PVC Sheath
Product Code: PALT
Description
PolyAluTwin / PALT / Malleable Metal / Plastic Composite Tubing. 10 Bar Working Pressure.
Premium twin aluminium overlapping tape tubes lined with an ethylene copolymer encased individually in durable MDPE (Medium Density Polyethylene) sheaths, wrapped in flat black PVC sheath, designed for superior performance and adaptability.
Features and Applications
PolyAluTwin tube excels in efficiently serving the pressurised transport of compressed air and lubricants, making it crucial in maintenance, control, and process applications. Its utility extends to inspecting turbines, air and gas sampling and endoscopic applications.Properties
Featuring remarkable resistance to pressure, our tube is engineered to withstand external mechanical forces. Its sheath, is made from a non-flame propagating PVC type C2 material, offering additional safety and durability.Annealed, dust-free, dehydrated, and weldless for optimal quality.
For connections, the use of a compression tube fitting is recommended, ensuring a secure and efficient assembly.
Customisation Options (minimum order quantities apply): Other colours, Other sheaths. Internal Tube Colours: Black Bore Finish: Smooth Sheath: PVC
Temperature
- -15°C to 50°C
Applications
- Borescopes
- Endoscopes
- Turbine Inspection
- Air and Gas Sampling
- Corrosive Environments
- Pneumatic Instrumentation
- Control Lines located in very wet or moist environments
Construction
- Inner Layer: Aluminium with ethylene copolymer coating
- Outer Cover: MDPE
Suitable Media
- Compressed Air
- Lubricant
Certification
- NF C 32070
Available Colours
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Weight | Length | Availability | Sheath O.D. | Sheath Wall | External Sheath O.D. | External Sheath Wall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PALT003006 | 3.1 | 6 | 1.45 | 40 | 120 | 100 | 100 | Production | 8 | 1 | 1 | |
| PALT005008 | 5.1 | 8 | 1.45 | 33 | 100 | 149 | 100 | Production | 10 | 1 | 1 | |
| PALT007010 | 6.9 | 10 | 1.55 | 26 | 80 | 187 | 100 | Production | 12 | 1 | 1 | |
| PALT009012 | 8.9 | 12 | 1.55 | 20 | 60 | 286 | 100 | Production | 14 | 1 | 1 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
