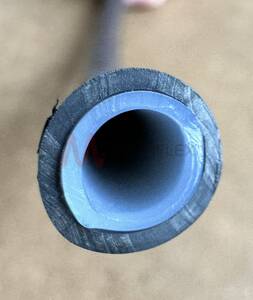

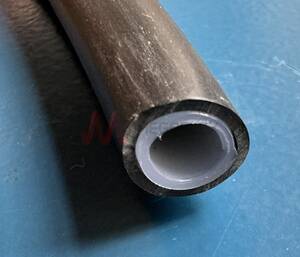

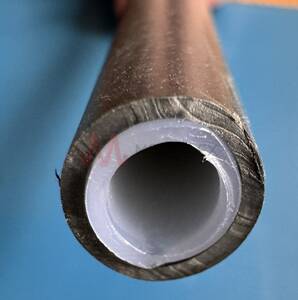

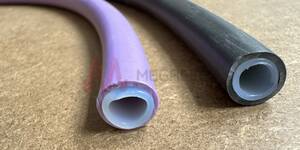

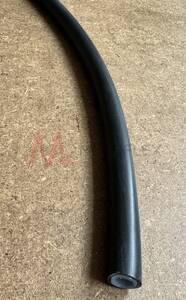

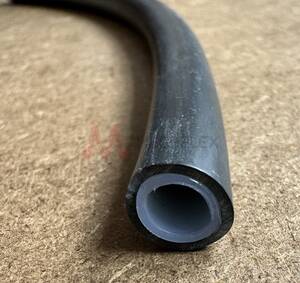

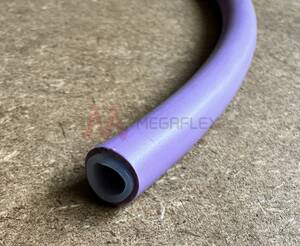

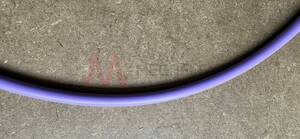

Nylon Calibrated Tube with Black Sparkproof PVC Sheath for Precision Applications
Product Code: PVCPA
Description

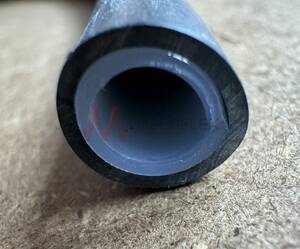

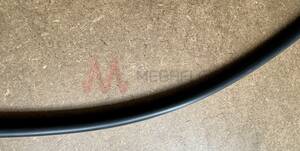

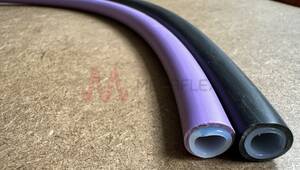

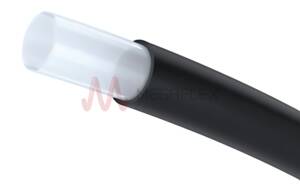

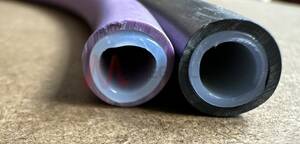

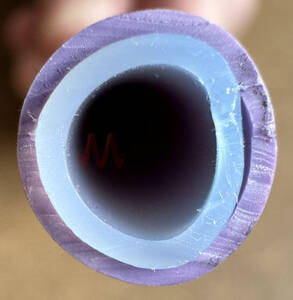

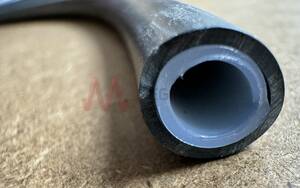

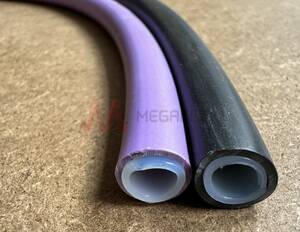

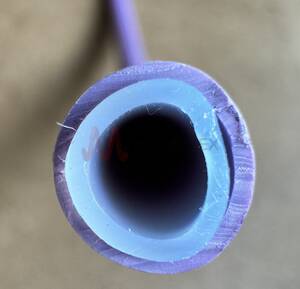

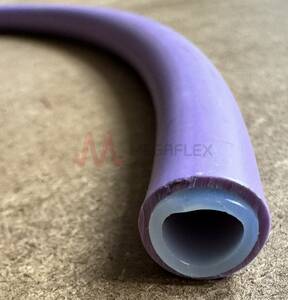

Nylon (polyamide (PA)) extruded and calibrated tube with a polyvinyl chloride sheath is engineered for enhanced safety. The internal tube is precisely calibrated for accurate performance, while the assembly offers good resistance to impacts and abrasion, alongside very good UV resistance, ensuring durability and reliability in demanding conditions.
Features and Applications
Designed for the pressurised transport of compressed air and lubricant, this tube system is crucial in sectors requiring high precision and safety, such as maintenance, control, process management, and instrumentation. Its sparkproof sheath and calibrated internal structure make it a safe and effective choice for a wide range of industrial applications.Properties
The tube features a sparkproof sheath and a calibrated internal structure, providing good impact and abrasion resistance, and very good UV resistance. This ensures the tube's durability and reliability in a variety of environmental conditions.The recommended method for secure and efficient connections is a quick-fit connector, facilitating easy integration into systems.
Customisation Options (minimum order quantities apply): Other colours, Other sheaths, Other qualities of interior tube. Internal Tube Colours: Translucent Bore Finish: Smooth Sheath: PVC
Temperature
- -20°C to 90°C
Applications
- Maintenance
- Control
- Process
- Instrumentation
Certification
- DIN 74324-1
- DIN 73378
- NF C 32070
Suitable Media
- Compressed Air
- Lubricant
Available Colours
- Black
Construction
- Wall: PA
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability | Sheath O.D. | Sheath Wall | Internal Tube Colours |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCPA003004 | 2.7 | 4 | 0.65 | 23 | 77 | 25 | 30 | 100 | Production | 6 | 1 | Translucent |
| PVCPA004006 | 4 | 6 | 1 | 27 | 80 | 30 | 48 | 100 | Production | 8 | 1 | Translucent |
| PVCPA006008 | 6 | 8 | 1 | 19 | 58 | 40 | 63 | 100 | Production | 10 | 1 | Translucent |
| PVCPA008010 | 8 | 10 | 1 | 15 | 53 | 60 | 79 | 100 | Production | 12 | 1 | Translucent |
| PVCPA010012 | 10 | 12 | 1 | 13 | 44 | 100 | 94 | 100 | Production | 14 | 1 | Translucent |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
