Nylon Calibrated Twin Tubes and rods with PVC Sheath for Precision Applications
Product Code: PVCPATR
Description

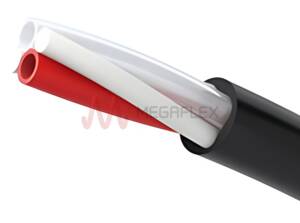

Nylon (polyamide) extruded and calibrated twin tubes and rods with a black polyvinyl chloride sheath is precisely calibrated for accurate performance, while the assembly offers good resistance to impacts and abrasion, alongside very good UV resistance, ensuring durability and reliability in demanding conditions.
Features and Applications
Designed for the pressurised transport of compressed air and lubricant, this tube system is crucial in sectors requiring high precision and safety, such as maintenance, control, process management, and instrumentation. Its sparkproof sheath and calibrated internal structure make it a safe and effective choice for a wide range of industrial applications.Properties
The twin tubes feature a sparkproof sheath and a calibrated internal structure, providing good impact and abrasion resistance. This ensures the tube's durability and reliability in a variety of environmental conditions.The recommended method for secure and efficient connections is a quick-fit connector, facilitating easy integration into systems.
Customisation Options (minimum order quantities apply): Other colours, Other sheaths, Other interior tubes. Internal Tube Colours: Translucent, Red, White Bore Finish: Smooth Sheath: PVC
Temperature
- -30°C to 70°C
Applications
- Maintenance
- Control
- Process
- Instrumentation
Suitable Media
- Compressed Air
- Lubricant
Certification
- DIN 74324-1
- DIN 73378
Available Colours
- Black
Construction
- Wall: PA
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability | External Sheath O.D. | Internal Tube Colours |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PVCPATR003004 | 2.7 | 4 | 0.65 | 23 | 77 | 20 | 90 | 100 | Production | 13 | Translucent, Red, White |
| PVCPATR004006 | 4 | 6 | 1 | 27 | 80 | 35 | 170 | 100 | Production | 17 | Translucent, Red, White |
| PVCPATR006008 | 6 | 8 | 1 | 19 | 58 | 45 | 260 | 100 | Production | 20.5 | Translucent, Red, White |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
