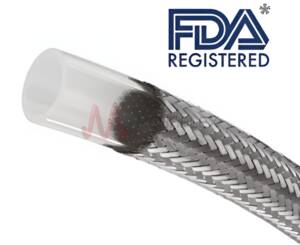

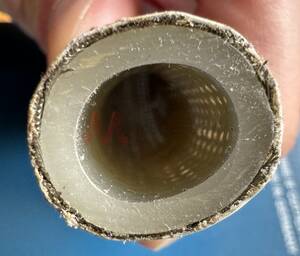

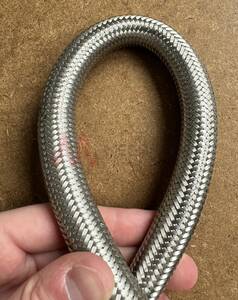

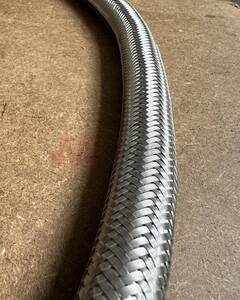

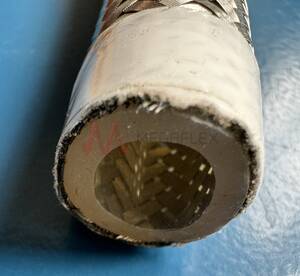

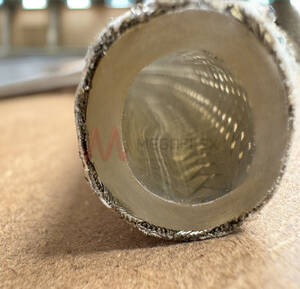

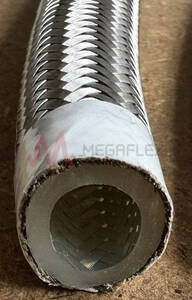

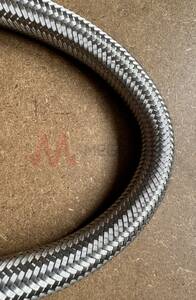

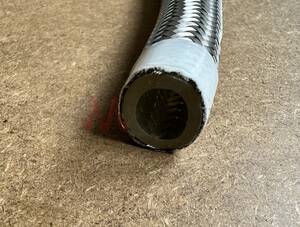

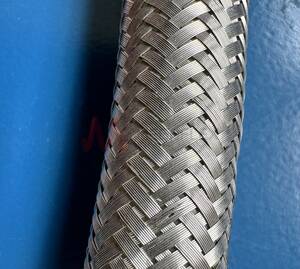

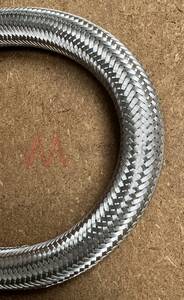

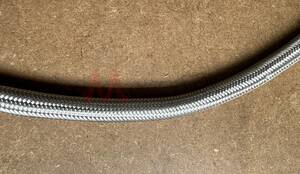

Food Grade PTFE (Polytetrafluoroethylene) Tube with Stainless Steel Wire Braid
Product Code: SPTFE
Description
Our PTFE (polytetrafluoroethylene) extruded tube with stainless steel wire braid is celebrated for its exceptional chemical resistance, longevity, food-grade compliance, temperature resistance, and very good resistance to pressure, making it highly suitable for demanding applications. Steam cleaning of the tube is also possible, ensuring easy maintenance and hygiene.
Features and Applications
optimised for the transport of chemically aggressive fluids and gas, this tube finds essential use in sectors that demand high chemical resistance and durability, such as medical, pharmaceutical, agriculture, laboratory, and cosmetics. Its ability to withstand high pressures and temperatures, coupled with its suitability for steam cleaning, makes it a versatile choice for a broad range of applications.Properties

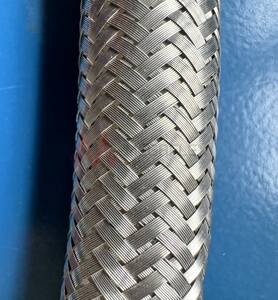

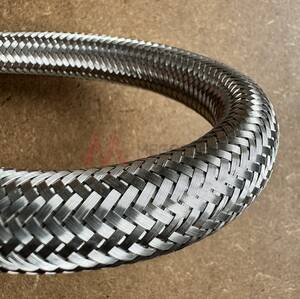

The tube offers exceptional chemical resistance, longevity, and is suitable for food contact, making it a reliable choice for various industrial applications. It demonstrates very good resistance to pressure. The AISI 304 stainless steel braid enhances its strength and durability.The recommended connection method is a nipple with a high-pressure crimping ferrule, providing a secure and efficient solution for integrating the tube into systems.
Customisation Options (minimum order quantities apply): Other sheaths, Other braids, Fitted with crimped connectors, Other qualities of interior tube. Internal Tube Colours: Clear Bore Finish: Smooth Sheath: Stainless Steel
Temperature
- -200°C to 250°C
Applications
- Medical
- Agriculture
- Pharmaceutical
- Laboratory
- Cosmetics
Suitable Media
- Aggressive Liquids
- Water
- Air
- Chemicals
- Gas
Food Quality
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
Certification
- FDA 21 CFR 177.1550
Construction
- Wall: PTFE
Available Colours
- Steel
| Part | Inner Diameter | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Availability | Braid O.D. | Braid Wall | Internal Tube Colours |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ″ | ||||||||||||
| SPTFE007-001 | 1⁄4 | 6.5 | 7.7 | 0.6 | 224 | 672 | 75 | 90 | Production | 9 | 0.65 | Clear |
| SPTFE008-001 | 5⁄16 | 8 | 9.7 | 0.85 | 207 | 621 | 100 | 140 | Production | 11 | 0.65 | Clear |
| SPTFE010-001 | 3⁄8 | 10 | 11.7 | 0.85 | 183 | 552 | 133 | 150 | Production | 13 | 0.65 | Clear |
| SPTFE013-001 | 1⁄2 | 13 | 14.7 | 0.85 | 161 | 483 | 152 | 250 | Production | 16 | 0.65 | Clear |
| SPTFE016-001 | 5⁄8 | 16 | 17.7 | 0.85 | 114 | 345 | 178 | 290 | Production | 19 | 0.65 | Clear |
| SPTFE019-001 | 3⁄4 | 19 | 20.7 | 0.85 | 103 | 310 | 203 | 240 | Production | 22 | 0.65 | Clear |
| SPTFE026-001 | 1 | 26 | 27.7 | 0.85 | 80 | 241 | 305 | 460 | Production | 29 | 0.65 | Clear |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
