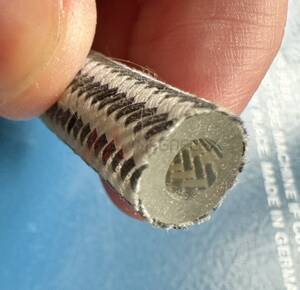

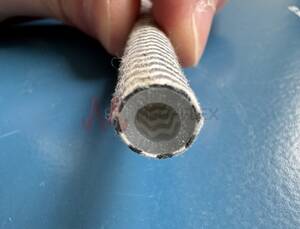

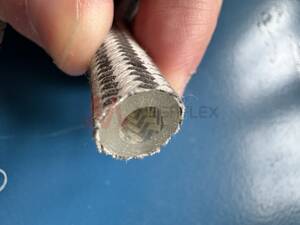

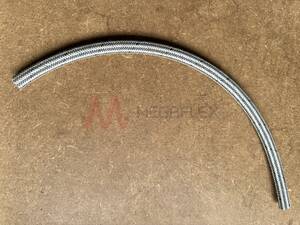

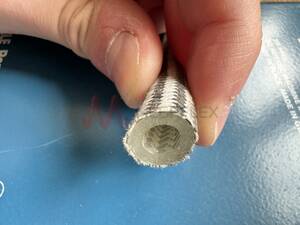

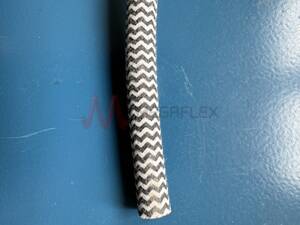

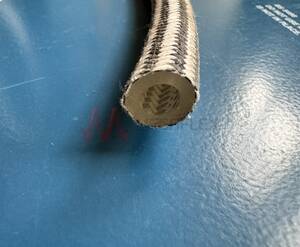

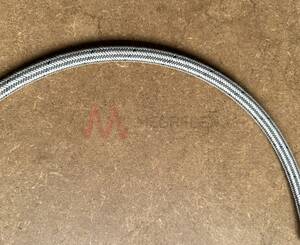

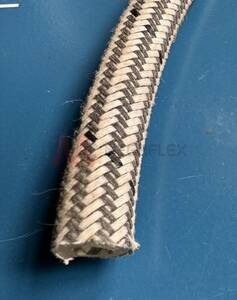

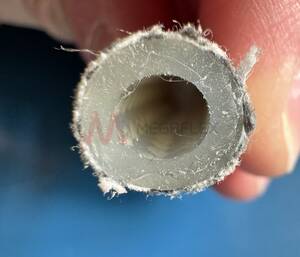

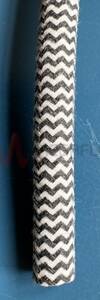

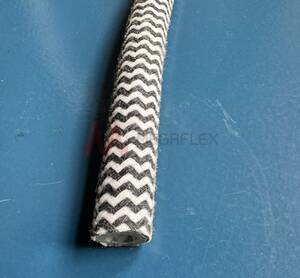

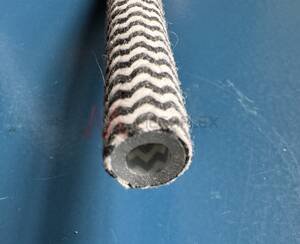

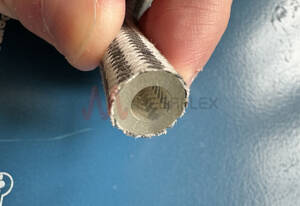

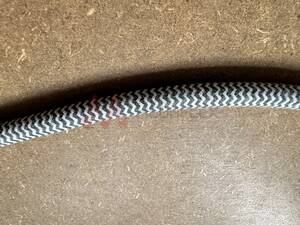

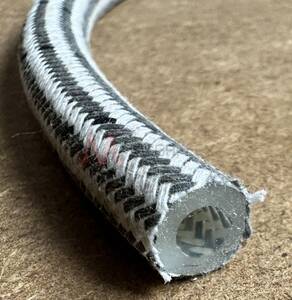

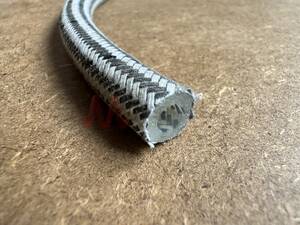

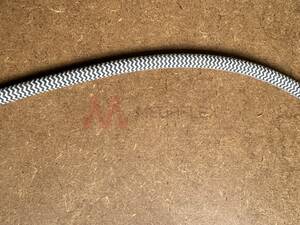

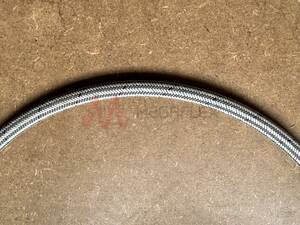

Clear Food Grade Silicone Tube with White and Black Polyester Textile Braid Sleeve
Product Code: SILO
Description
Our food-grade silicone tube, with 70 Shore A hardness, is reinforced with a textile braid sleeve, making it incredibly flexible and reliable. FDA, EU and medical approved making our tube perfect for transporting food-grade liquids, alcohols, acids, and steam under pressure, this tube is a great fit for industries, including electrical appliances, medical, and agriculture.
Features and Applications
It can also be used for the safe transfer of cosmetics, pharmaceuticals, and other sensitive materials that require a contaminant-free pathway.Within agriculture our overbraided silicone tube is utilised for irrigation systems, pesticide and fertiliser delivery hoses and as components in machinery requiring durable and chemical-resistant tubing.
Properties
Very flexible, food grade tube, resistance to pressure, good resistance to aggressive fluids, steam, alcohols and acids.Recommended connection: nipple with lug clamp or band clamp.
Customisation Options (minimum order quantities apply): 50 Shore A Internal Tube Colours: Clear Bore Finish: Smooth Shore Hardness: 70 Shore A
Temperature
- -40°C to 150°C
Certification
- FDA 21 CFR 177.2600
- EU 1935/2004
- European Pharmacopeia Section 3.1.9
- NF EN 1186
- EU 10/2011
Applications
- Agriculture
- Medical
- Electrical Appliances
- Food Industry
- Cosmetics
- Pharmaceutical
Food Quality
- Suitable for medical & pharmaceutical applications. NOT FOR PATIENT USE.
- Food Grade ✔
Suitable Media
- Food Grade Liquid
- Alcohol
- Acid
- Steam
- Aggressive liquid

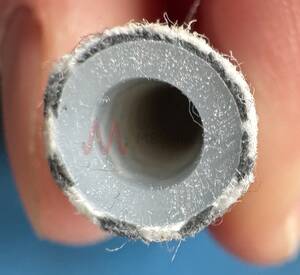

Construction
- Inner Layer: Silicone
- Outer Cover: Polyester
Available Colours
- White
- Black
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Colour | Availability | Braid O.D. | Braid Wall | Internal Tube Colours |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SILO008 | 4.4 | 7 | 1.3 | 20 | 100 | 20 | 44 | 100 | Black, White | Production | 8.3 | 0.65 | Clear |
| SILO010 | 5.5 | 8.9 | 1.7 | 18 | 60 | 25 | 64 | 100 | Black, White | Production | 10.2 | 0.65 | Clear |
| SILO012 | 8 | 10.9 | 1.45 | 12 | 37 | 50 | 74 | 100 | Black, White | Production | 12.2 | 0.65 | Clear |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
