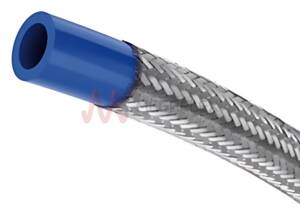

Blue Silicone Tube with AISI304 Stainless Steel Overbraid for Industrial Vehicles
Product Code: SILSB
Description
Silicone elastomer extruded tube with stainless steel wire braid combines flexibility with resistance to pressure and temperature, and offers improved resistance to hydrocarbon vapours, making it a robust choice for demanding environments.
Features and Applications
Designed for the transport of chemically aggressive fluids, this reinforced tube is widely used across various industries and in industrial vehicles. Its construction provides enhanced durability and safety features, suitable for challenging conditions.Properties
The tube is flexible and capable of withstanding significant pressure. The AISI 304 stainless steel braid enhances its strength and resistance, particularly against hydrocarbon vapours, ensuring reliability and longevity.The recommended method for secure and efficient connections is a nipple with low-pressure crimping ferrule, offering a reliable solution for system integration.
Customisation Options (minimum order quantities apply): Other solid colours, Other braids, Fitted with crimped connectors, Other qualities of interior tube. Internal Tube Colours: Blue Bore Finish: Smooth
Temperature
- -60°C to 180°C
Applications
- Agriculture
- Electrical Industry
- Equipment Manufacturers
- Industrial Vehicles
Suitable Media
- Acids
- Water
- Hot Water
- Boiling Water
- Chemically Aggressive Liquid
Construction
- Inner Layer: Silicone
- Outer Cover: Stainless Steel
Available Colours
- Steel
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability | Braid O.D. | Braid Wall | Internal Tube Colours |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SILSB004007 | 4 | 6.7 | 1.35 | 42 | 120 | 30 | 70 | 100 | Production | 8 | 0.65 | Blue |
| SILSB006009 | 6 | 9.2 | 1.6 | 37 | 110 | 40 | 110 | 100 | Production | 10.5 | 0.65 | Blue |
| SILSB008012 | 8 | 11.5 | 1.75 | 37 | 110 | 55 | 150 | 50 | Production | 12.8 | 0.65 | Blue |
| SILSB010014 | 10 | 13.5 | 1.75 | 35 | 105 | 75 | 190 | 50 | Production | 14.8 | 0.65 | Blue |
| SILSB012017 | 12 | 16.5 | 2.25 | 27 | 80 | 85 | 240 | 50 | Production | 17.8 | 0.65 | Blue |
| SILSB015021 | 15 | 20.5 | 2.75 | 26 | 75 | 145 | 374 | 25 | Production | 21.8 | 0.65 | Blue |
| SILSB020027 | 20 | 26.7 | 3.35 | 22 | 65 | 220 | 460 | 25 | Production | 28 | 0.65 | Blue |
| SILSB025032 | 25 | 31.7 | 3.35 | 17 | 50 | 320 | 700 | 25 | Production | 33 | 0.65 | Blue |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
