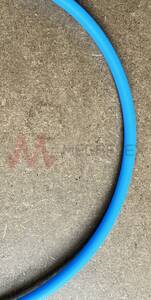

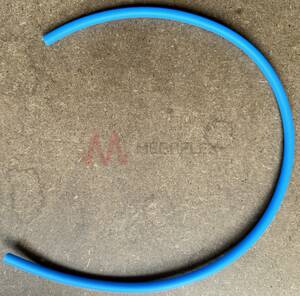

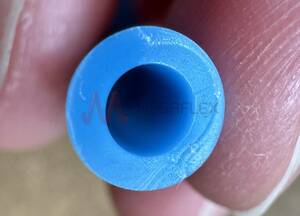

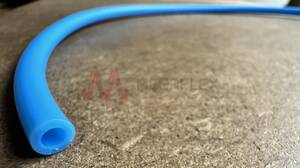

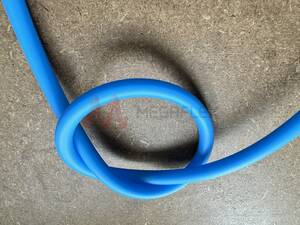

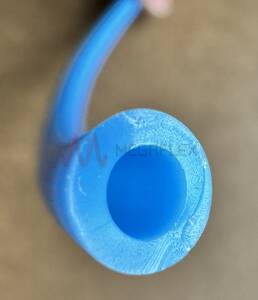

Unreinforced Blue Flexible Food Grade PVC Tube for Dairy Products
Product Code: PVC67AFB
Description

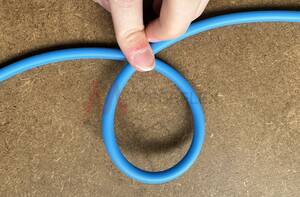

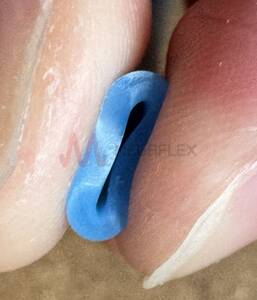

Unreinforced Blue PVC Tube is exceptionally flexible and versatile, noted for its 67 Shore A hardness. This blue tube is specially designed for the safe transport of air and dairy products, catering to the needs of sectors including agriculture, laboratories, and the food industry.
It stands out for its good resistance to acids, bases, and detergents, while being recyclable and free from phthalates, aligning with environmental and health standards.
Features and Applications
Its extra flexibility and economic advantages offer a practical solution for handling substances, including sensitive dairy products, in environments where durability and chemical resistance are essential.Properties
This tube is celebrated for its exceptional flexibility, economic value, and versatility. It provides robust resistance against acids, bases, and detergents, ensuring reliable performance in challenging conditions.Additionally, its recyclable nature and phthalate-free formulation reflect our commitment to environmental sustainability and health safety. The tube's physical characteristics include a density of 1.19, with impressive tensile strength >16 Mpa and elongation at break >400%
Recommended connection: nipple with lug clamp or band clamp.

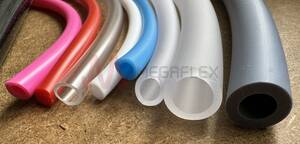

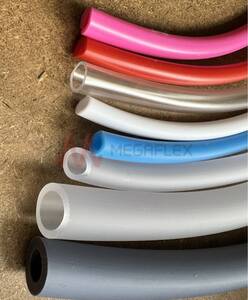

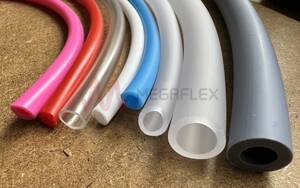

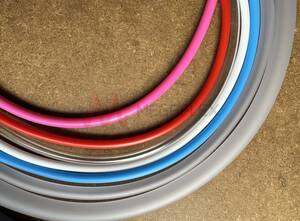

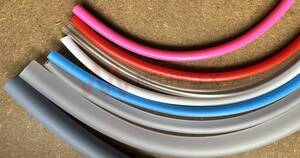

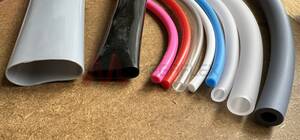

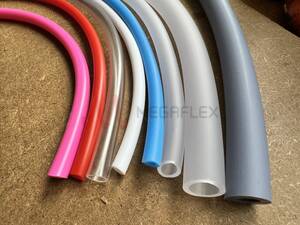

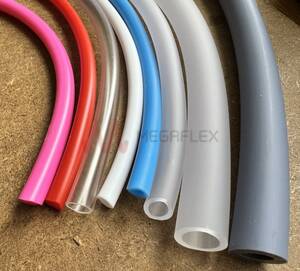

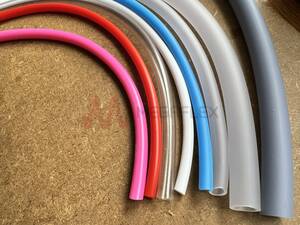

Customisation Options (min order quantities apply): Other solid colours, Double Bore Tube, Additives: Anti-UV, Antibacterial. Bore Finish: Smooth Shore Hardness: 67 Shore A
Food Quality
- EU Regulation 10/2011 Food Simulant A: Hydrophilic Foods.
- EU Regulation 10/2011 Food Simulant B: Foods with pH <4.5.
- EU Regulation 10/2011 Food Simulant C: Alcohol up to 20%.
- EU Regulation 10/2011 Food Simulant D1: Alcohol content >20% and oil-in-water emulsions.
- Suitable for alcohol up to 20%.
Temperature
- -30°C to 40°C
Applications
- Food industry
- Dairy Industry
- Agriculture
- Laboratories
- Medical
Certification
- ISO R 868
- ISO 1183
- ISO R 527
- ISO R 5257
- EU 10/2011
Suitable Media
- Milk
- Air
- Food Liquids
- Agri-food
- Water
Construction
- Wall: PVC
Available Colours
- Blue
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Weight | Length | Availability |
|---|---|---|---|---|---|---|
| PVC67AFB011 | 7 | 11 | 2 | 68 | 25 | Production |
| PVC67AFB013 | 7 | 13 | 2.5 | 113 | 25 | Production |
| PVC67AFB014 | 8 | 14 | 3 | 124 | 25 | Production |
| PVC67AFB018 | 10 | 18 | 4 | 210 | 25 | Production |
| PVC67AFB024 | 14 | 24 | 5 | 355 | 25 | Production |
| PVC67AFB026 | 16 | 26 | 5 | 393 | 25 | Production |
| PVC67AFB027 | 16 | 27 | 5.5 | 442 | 25 | Production |
| PVC67AFB032 | 19 | 32 | 6.5 | 620 | 25 | Production |
| PVC67AFB037 | 25 | 37 | 6 | 695 | 25 | Production |
| PVC67AFB040 | 29 | 40 | 5.5 | 710 | 25 | Production |
| PVC67AFB043 | 30 | 43 | 6.5 | 887 | 25 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
