Unreinforced Flexible Blue Food Grade Silicone Tube Peristaltic Grade

Product Code: SILT60B

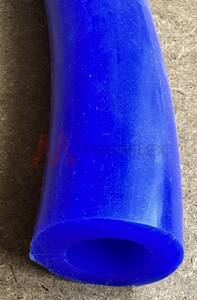

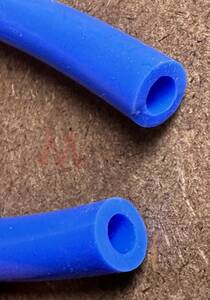

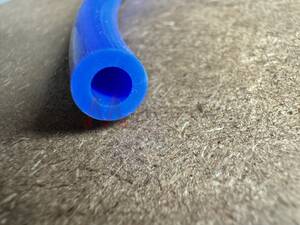

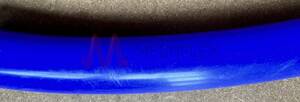

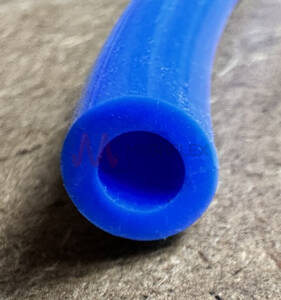

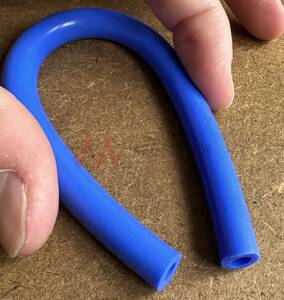

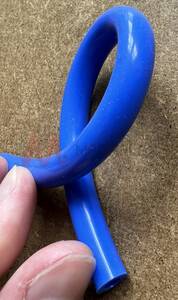

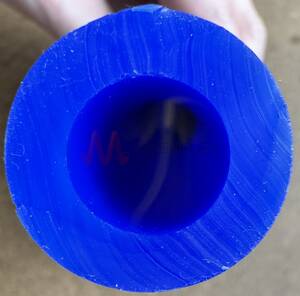

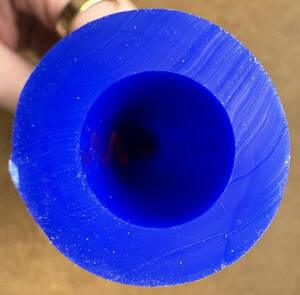

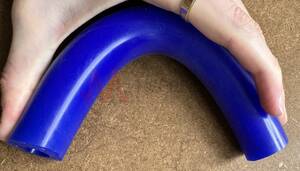

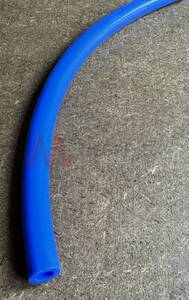

Unreinforced Blue Silicone Tube Food Grade

Description

Our blue silicone elastomer tube with a Shore A hardness of 60, cured with peroxide, is designed for transporting food-grade liquids, alcohols, and acids without pressure in peristaltic and doser pumps.

Features and Applications

It is ideal for industries such as medical, pharmaceutical, agriculture, laboratory, and cosmetics due to its flexibility, elasticity, safety for food, high-temperature resistance, and auto-clavability. It also offers outstanding weather and UV durability, water resistance, chemically inert, biologically harmless, resistance to fatigue, and minimal deformation under pressure and tension.

Suitable for non-pressurised transportation of food-safe liquids in the food sector, alcohol and acid transport in chemical processing, sterilisation and chemical resistance in medical and pharmaceutical environments, durability in agriculture applications, precise fluid control in laboratory settings, and product purity and quality in the cosmetics industry.

Properties

Flexible, Elastic, Food grade, High temperature resistance, Sterilisable, Chemical resistance, UV resistant, Water-repellent, Biologically neutral, Dynamic fatigue resistance.

Technical Data

Nominal density: 1.14, Tensile strength: >11.5 MPa, Elongation at break: >400%.
Recommended Connections or Fittings: Nipple with lug clamp or band clamp.
Customisation Options (subject to minimum order quantities): Solid colours, Braided versions. Bore Finish: Smooth Shore Hardness: 60 Shore A

Temperature

-60°C to 180°C, intermittently as high as 200°C

Applications

Peristaltic pumps
Doser pumps
Beverage dispensing
Chemical processing
Medical
Pharmaceutical
Agriculture
Laboratory fluid control
Cosmetics industry

Certification

FDA 21 CFR 177.2600
EU 1935/2004
European Pharmacopeia Section 3.1.9
NF EN 1186
EU 10/2011
DIN 53505
ISO 1183
DIN 53504 S1

Food Quality

Suitable for medical & pharmaceutical applications. NOT FOR PATIENT USE.
FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).

Suitable Media

Food liquids
Alcohols
Acids
Water

Construction

Wall: Silicone

Available Colours

Blue

Part	Inner Diameter	Outer Diameter	Wall Thickness	Weight	Length	Availability

SILT60B001003	1	3	1	7	100	Production
SILT60B002004	2	4	1	11	100	Production
SILT60B002006	2	6	2	29	100	Production
SILT60B003005	3	5	1	14	100	Production
SILT60B003006	3	6	1.5	24	100	Production
SILT60B004006	4	6	1	18	50	Production
SILT60B004007	4	7	1.5	30	50	Production
SILT60B004008	4	8	2	43	50	Production
SILT60B005008	5	8	1.5	35	50	Production
SILT60B005010	5	10	2.5	67	50	Production
SILT60B005015	5	15	5	179	50	Production
SILT60B006009	6	9	1.5	40	50	Production
SILT60B006010	6	10	2	57	50	Production
SILT60B006012	6	12	3	97	25	Production
SILT60B006018	6	18	6	258	25	Production
SILT60B007010	7	10	1.5	46	50	Production
SILT60B007011	7	11	2	65	50	Production
SILT60B007013	7	13	3	107	50	Production
SILT60B008012	8	12	2	72	50	Production
SILT60B008014	8	14	3	118	50	Production
SILT60B008016	8	16	4	172	25	Production
SILT60B009012	9	12	1.5	56	50	Production
SILT60B010014	10	14	2	86	50	Production
SILT60B010016	10	16	3	140	25	Production
SILT60B010018	10	18	4	201	25	Production
SILT60B012016	12	16	2	100	50	Production
SILT60B012017	12	17	2.5	130	50	Production
SILT60B015021	15	21	3	193	25	Production
SILT60B016022	16	22	3	204	25	Production
SILT60B018024	18	24	3	226	25	Production
SILT60B020027	20	27	3.5	295	25	Production
SILT60B022029	22	29	3.5	320	25	Production
SILT60B025032	25	32	3.5	357	25	Production

Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications. Please click here for full terms and conditions. Please contact our sales office on 01636816612 or email us at sales@megaflex.co.uk for further details!
