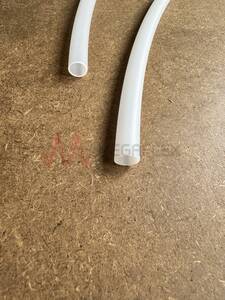

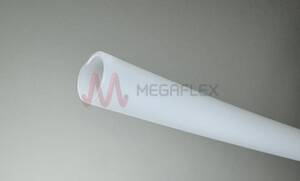

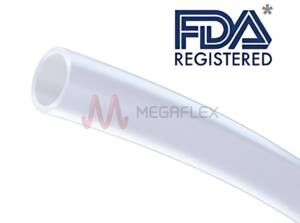

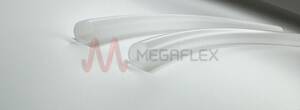

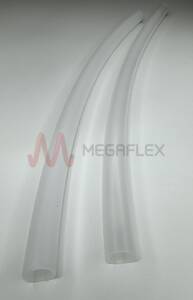

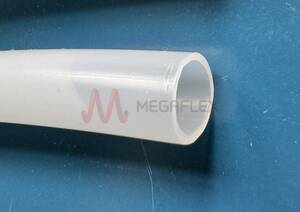

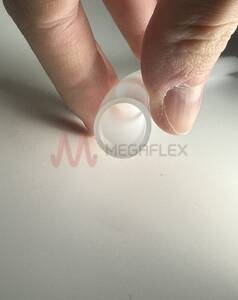

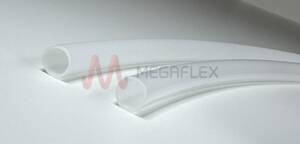

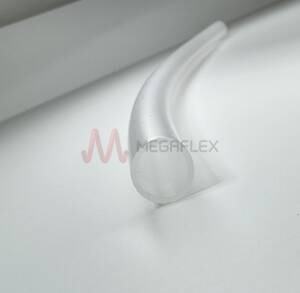

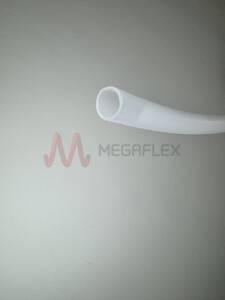

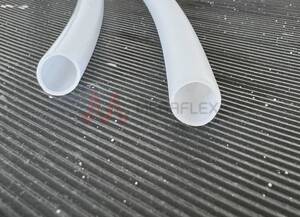

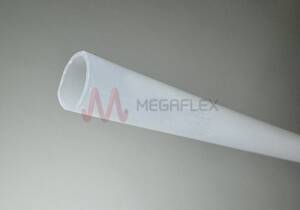

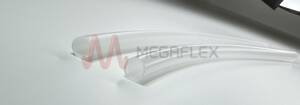

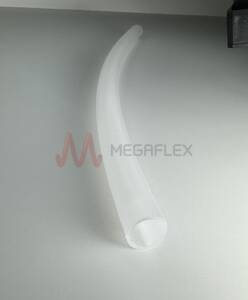

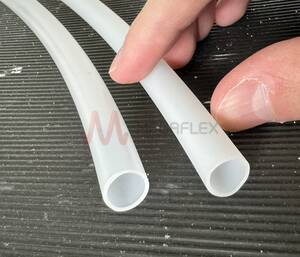

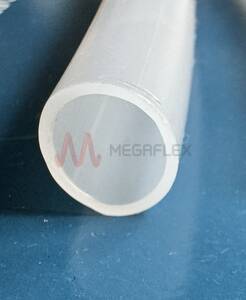

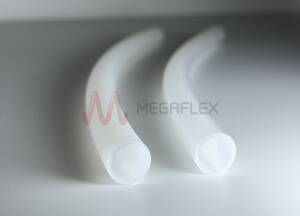

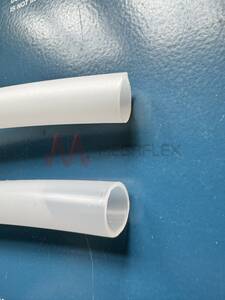

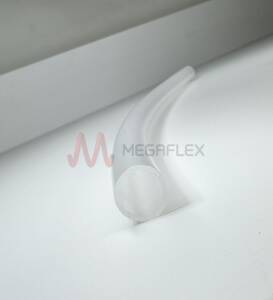

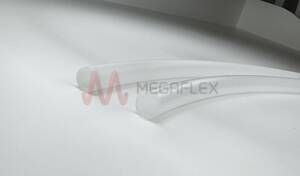

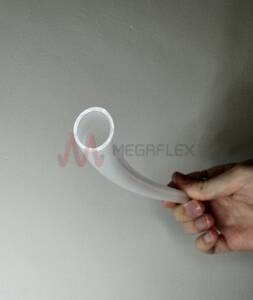

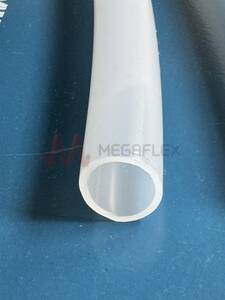

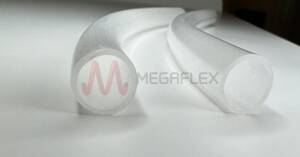

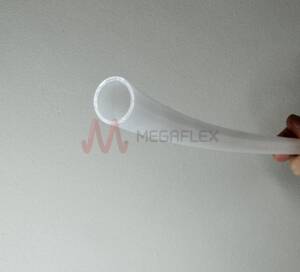

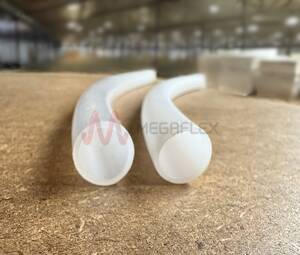

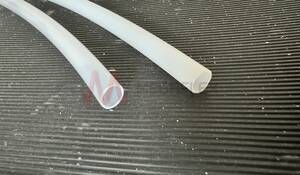

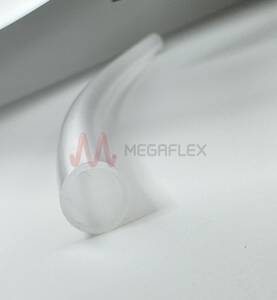

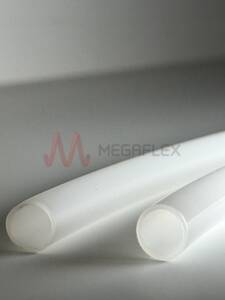

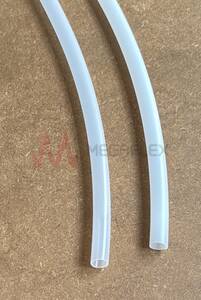

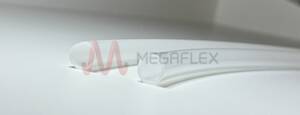

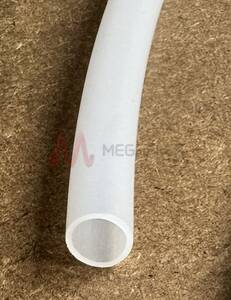

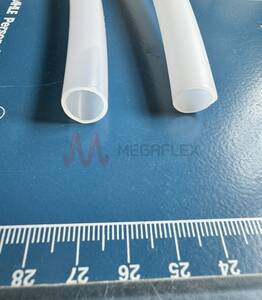

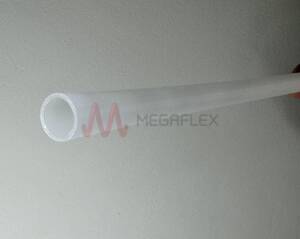

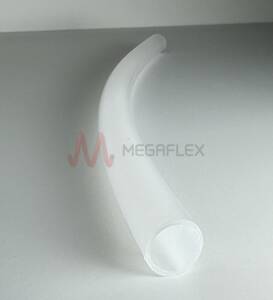

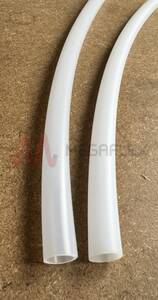

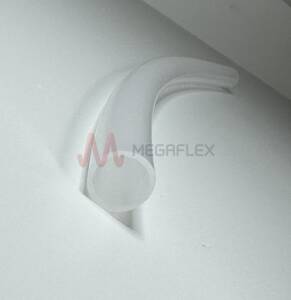

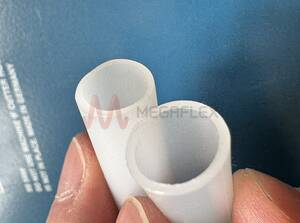

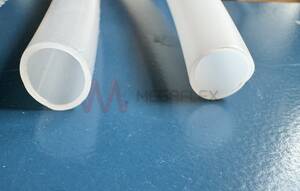

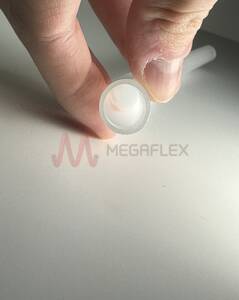

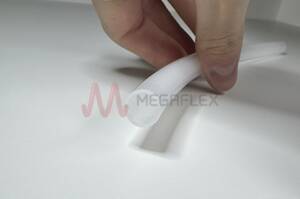

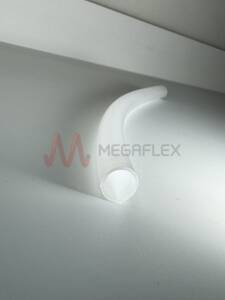

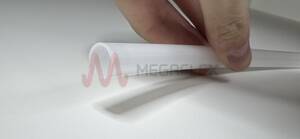

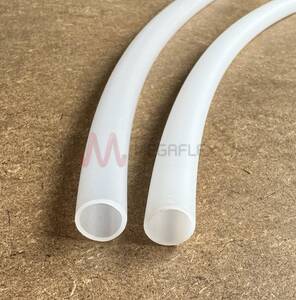

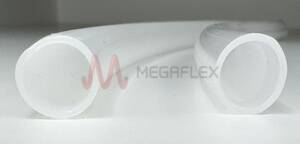

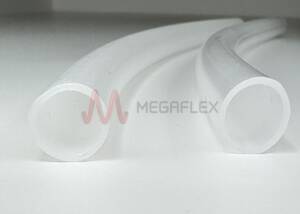

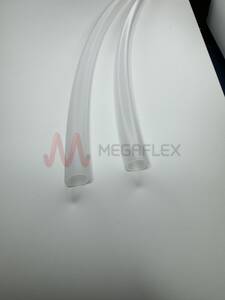

Unreinforced Flexible Translucent PTFE Food Grade Tube up to 250°C
Product Code: PTFE60D
Description
This translucent food-grade PTFE tube is designed for pressurised transport of chemically aggressive fluids and gases, making it ideal for applications in the medical, pharmaceutical, agriculture, laboratory, and cosmetics industries. It offers exceptional UV resistance, chemical resistance, anti-adhesive properties, and is non-inflammable, fire-resistant.
Features and Applications
This tube excels in environments where high chemical resistance and temperature tolerance are required.Properties
Boasting UV resistance, exceptional chemical resistance, anti-adhesive properties, and food-grade safety, this tube is also noted for its temperature resistance, non-inflammability, and fire resistance. These features make it an invaluable resource for handling sensitive and hazardous materials.Technical Data include a density of 2.20, with a tensile strength of ≥25 Mpa and elongation at break of >300%, indicating its durability and strength under stress.
Recommended connections are compression tube fittings.
Options for customisation (subject to minimum order quantities) include solid colours, sheathed and antistatic versions. Bore Finish: Smooth Shore Hardness: 60 Shore D
Temperature
- -200°C to 250°C, intermittently as high as 280°C
Applications
- Medical
- Pharmaceutical
- Agriculture
- Laboratory
- Cosmetics
Certification
- FDA 21 CFR 177.1550
- ISO R 868
- ISO R 527
- ISO 37
- UL94 V0
Suitable Media
- Pressurised chemically aggressive fluids
- Gas
Available Colours
- Translucent
Food Quality
- Food Grade ✔
Construction
- Wall: PTFE
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Availability |
|---|---|---|---|---|---|---|---|---|---|
| PTFE60D004 | 2 | 4 | 1 | 23 | 92 | 20 | 20 | 100 | Production |
| PTFE60D006 | 4 | 6 | 1 | 15 | 60 | 40 | 34 | 100 | Production |
| PTFE60D008 | 6 | 8 | 1 | 11 | 44 | 60 | 48 | 100 | Production |
| PTFE60D010 | 8 | 10 | 1 | 9 | 36 | 80 | 61 | 100 | Production |
| PTFE60D012 | 10 | 12 | 1 | 8 | 32 | 100 | 75 | 100 | Production |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
