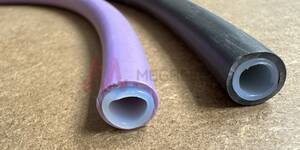

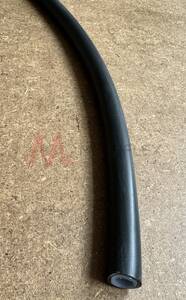

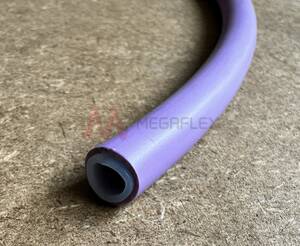

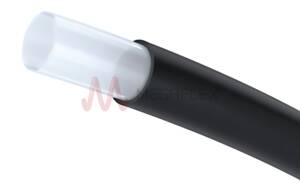

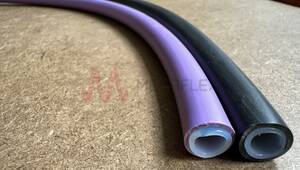

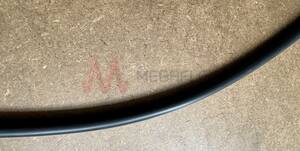

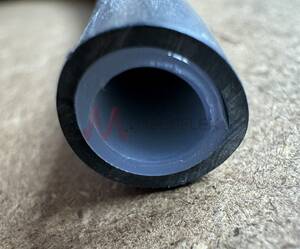

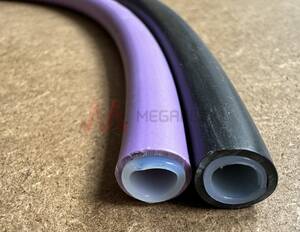

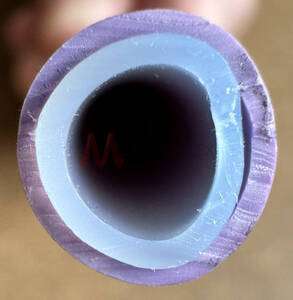

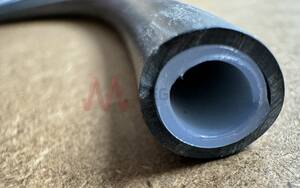

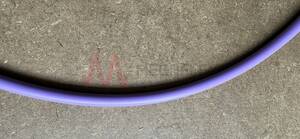

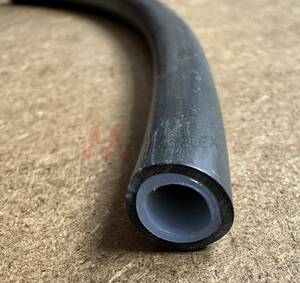

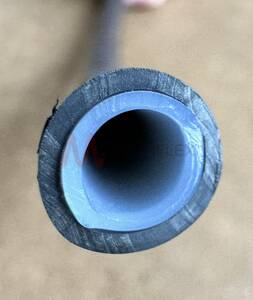

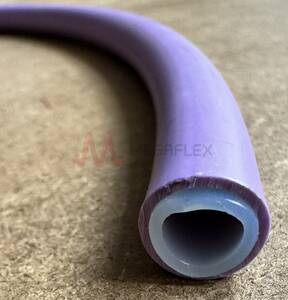

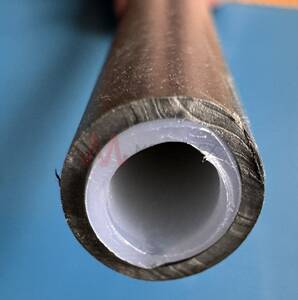

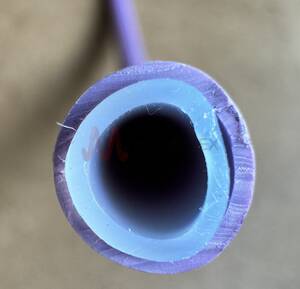

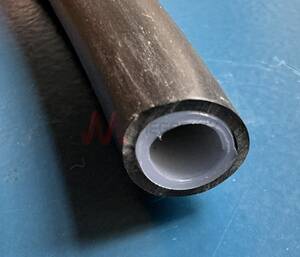

Unreinforced Translucent PTFE Food Grade Tube with PVC Sheath
Product Code: PTFE60DS
Description
PTFE tube with a Shore D hardness of 60, capable of withstanding temperatures up to 250°C, covered with a PVC Sheath. This translucent food-grade PTFE tube offers exceptional UV resistance, chemical resistance, anti-adhesive properties, and is non-inflammable, fire-resistant.
Features and Applications
This tube excels in the pressurised transport of chemically aggressive fluids and gases, serving critical roles in medical, pharmaceutical, agriculture, laboratory, and cosmetics fields. Its excellent material properties ensure safe and efficient use in environments where high chemical resistance and temperature tolerance are required.Properties
Boasting UV resistance, exceptional chemical resistance, anti-adhesive properties, and food-grade safety, this tube is also noted for its temperature resistance, non-inflammability, and fire resistance. These features make it an invaluable resource for handling sensitive and hazardous materials.Technical Data include a density of 2.20, with a tensile strength of ≥25 Mpa and elongation at break of >300%
Recommended connections are compression tube fittings, ensuring a secure and leak-proof setup.
Options for customisation (subject to minimum order quantities) include solid colours, sheathed and antistatic versions. Bore Finish: Smooth Shore Hardness: 60 Shore D
Temperature
- -200°C to 250°C, intermittently as high as 280°C
Applications
- Medical
- Pharmaceutical
- Agriculture
- Laboratory
- Cosmetics
Certification
- FDA 21 CFR 177.1550
- ISO R 868
- ISO R 527
- ISO 37
- UL94 V0
Food Quality
- FDA regulations (Title 21 CFR 177.2600 Part E for aqueous foods).
Suitable Media
- Pressurised chemically aggressive fluids
- Gas
Construction
- Inner Layer: PTFE
- Outer Cover: PVC

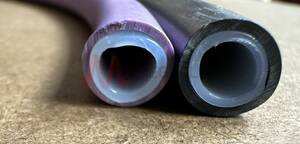

Available Colours
- Translucent
- Purple
| Part | Inner Diameter | Outer Diameter | Wall Thickness | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | Colour | Availability | Sheath O.D. | Sheath Wall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PTFE60DS004 | 2 | 4 | 1 | 23 | 92 | 20 | 20 | 100 | Translucent | Production | 6 | 1 |
| PTFE60DS006 | 4 | 6 | 1 | 15 | 60 | 40 | 34 | 100 | Translucent | Production | 8 | 1 |
| PTFE60DS008 | 6 | 8 | 1 | 11 | 44 | 60 | 48 | 100 | Translucent | Production | 10 | 1 |
| PTFE60DS010 | 8 | 10 | 1 | 9 | 36 | 80 | 61 | 100 | Translucent | Production | 12 | 1 |
| PTFE60DS012 | 10 | 12 | 1 | 8 | 32 | 100 | 75 | 100 | Translucent | Production | 14 | 1 |
Please be advised; specifications assume standard room temperature unless otherwise specified. All data presented here is intended as a guide only; we are not responsible for errors or discrepancies in the specifications.
