Agricultural Hoses & Ductings: The Complete Farming & Equine Guide
Updated October 6, 2026
Agricultural operations represent some of the most diverse and physically punishing working environments for flexible fluid lines and extraction ductings. From high-vacuum paddock cleaners lifting wet manure and pasture debris to hygienic dairy parlours transferring raw milk, high-pressure boom sprayers dispersing crop protection chemicals, and umbilical drag systems distributing corrosive livestock slurry across fields, every agricultural task demands specific mechanical, chemical, and thermal properties. Specifying the wrong hose or duct can lead to costly downtime during critical weather windows, livestock contamination, chemical burns from line blowouts, or vacuum collapse.
This comprehensive engineering guide examines how to size, select, and maintain agricultural hoses and ductings across farming, equine paddock care, dairy production, crop spraying, and irrigation.
Need immediate sizing advice or bulk farm supplies? Contact our technical desk at sales@megaflex.co.uk.
Which hose should you specify for paddock vacuums, raw milk transfer, umbilical slurry spreading, or 80 bar orchard spraying?
Well, let’s dive in!
How to Select the Perfect Agricultural Hose in 6 Steps
- 1. Determine Flow Dynamics, Bore Sizing & Vacuum Resistance. Match inside diameter (ID) to pump volumetric capacity, differentiate between delivery-only layflat lines and helix-reinforced suction hoses, and prevent vacuum collapse during slurry or manure extraction.
- 2. Match Media Chemistry & Internal Abrasion. Select liner polymers resistant to animal urine, volatile fatty acids, abrasive soil, high-proof dairy sanitiser washes, concentrated liquid fertilisers, or hydrocarbons.
- 3. Assess Working Pressure & Surge Spikes. Select between gravity-fed irrigation (4 to 6 bar), high-volume slurry injection (10 to 16 bar), and high-pressure chemical spraying (20, 40, or 80 bar) with appropriate burst safety factors.
- 4. Account for Outdoor Weathering, UV, Ozone & Sub-Zero Cold. Ensure compounds resist cracking under direct sunlight, survive winter towing across frozen ground down to -25°C, and withstand dragging over flint and stubble.
- 5. Verify Hygiene, WRAS & Grain ATEX Certifications. Ensure compliance with FDA 21 CFR, Regulation (EC) No 1935/2004 for milk, WRAS for livestock drinking water, and TRGS 727 antistatic standards for grain handling.
- 6. Select Robust Agricultural Couplings & Clamping Systems. Pair hoses with quick-action Bauer couplings, lever-lock slurry fittings, camlocks, and heavy-duty bridge clamps to guarantee leak-free operation.
- Ready to pick your agricultural hose. Explore our application matrix and verified technical specifications.
Why Dedicated Agricultural Hoses & Ductings Matter
Modern farming requires high equipment dependability. A failed slurry hose during seasonal spreading windows can lead to environmental contamination fines from the Environment Agency, while a split milk collection line can spoil thousands of litres of raw milk. Standard domestic garden hoses or uncertified plastic ductings cannot survive the mechanical pulling loads of tractors, the chemical aggression of manure acids, or continuous UV solar radiation. Investing in purpose-built, heavy-duty agricultural hoses protects farm productivity, safeguards livestock health, and eliminates costly equipment repairs.
The Core Operational Challenges on Modern Farms:
- Manure, Slurry & Microbial Breakdown: Animal waste contains volatile fatty acids, ammonia, and microbes that rapidly degrade standard plasticisers in generic PVC, causing premature hardening and cracking. Heavy-duty nitrile rubber, such as Superflex Nitrile (SF01)
- Paddock Debris & Severe Abrasion: Suctioning horse manure, wet grass, soil, and gravel using paddock vacuum sweepers (such as Terra Vac systems) severely scours duct interiors. Specialised ether-polyurethane ductings, like Eolo PU Food (EU01)
- High-Pressure Crop Protection Chemicals: Modern tractor-mounted and trailed crop sprayers propel fungicides, insecticides, and liquid nitrogen fertilisers at pressures up to 80 bar. Using hoses with multi-ply textile braid reinforcement—such as 80 Bar Spraying Hose (YO01)
- Sub-Zero Flexibility: Winter yard feeding and slurry tanker loading often take place in sub-zero temperatures. Low-temperature formulations like Saturno L SE (XL06)
- Combustible Dust in Grain Silos: Loading grain, dry animal feed, and milled seed generates fine organic dust clouds. Triboelectric static accumulation can ignite airborne dust; specifying antistatic hoses like AIRDUC® PUR 355 AS
Ready to upgrade your farm transfer lines? Review our step-by-step selection guide or contact our technical team at sales@megaflex.co.uk.
Step-by-Step Guide to Selecting Agricultural Hoses
Step 1: Determine Flow Dynamics, Bore Sizing & Vacuum Resistance
Selecting the correct internal diameter (ID) and reinforcement structure prevents cavitation, pressure drop, and line collapse:
- Suction vs Delivery Requirements:
- Suction and Delivery (Vacuum Resistance): Extracting livestock waste from slurry pits, loading vacuum tankers, or drawing manure into paddock cleaning machines requires a rigid internal reinforcement. Hoses with an embedded rigid PVC spiral—such as Saturno L SE (XL06)
- Delivery Only (Layflat & Discharge): For transporting high volumes of water, slurry, or liquid fertiliser across open fields under positive pressure, layflat hoses provide compact, roll-up storage. Layflat hoses like Blue Mercurio M 4 Bar (MM01)
- Suction and Delivery (Vacuum Resistance): Extracting livestock waste from slurry pits, loading vacuum tankers, or drawing manure into paddock cleaning machines requires a rigid internal reinforcement. Hoses with an embedded rigid PVC spiral—such as Saturno L SE (XL06)
- Inside Diameter (ID) Sizing: Sizing must balance volumetric throughput against pumping head loss:
- 13 mm to 25 mm (1/2" to 1"): Parlour washdown, drinking troughs, and spot-spraying lances.
- 51 mm to 76 mm (2" to 3"): Paddock sweepers, mobile irrigation pump discharge, and dairy tanker lines.
- 102 mm to 152 mm (4" to 6"): Agricultural slurry tanker suction, digestate spreading, and high-volume flood dewatering.
- 152 mm to 203 mm (6" to 8"): Umbilical drag distribution and heavy muck spreading.
- Umbilical Drag Hose Tension: For tractor-towed umbilical slurry injection systems, hoses must resist high longitudinal pulling forces. Specialised rubber drag hoses, such as the Black Rubber Drag Layflat Hose (RLF)
Step 2: Match Media Chemistry & Internal Abrasion
Agricultural media vary widely in corrosiveness and abrasiveness:
Paddock Cleaning, Manure Suction & Pasture Recovery
Paddock cleaners, equine pasture vacuums, and turf sweepers handle horse manure, soil, flint, and hedge cuttings. Standard ducting wears through rapidly along the outer radius. High-grade polyurethane ductings—such as Eolo PU Food (EU01)
Raw Milk Handling & Dairy Milking Parlours
Milk is a delicate emulsion containing organic butterfat that degrades standard industrial plastics, causing taste taint and bacterial contamination. Milking parlours require certified, plasticiser-free food hoses:

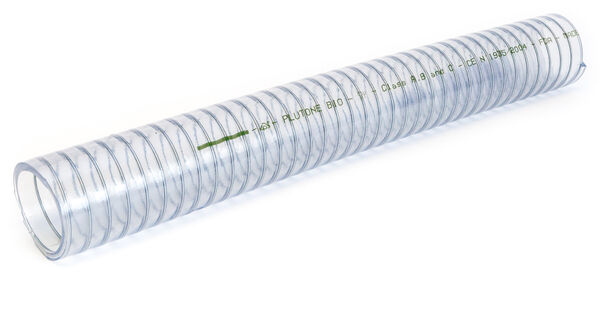

- Plutone Clear PVC Suction Delivery Hose (B201)
- BARDUC® PVC 381 Food
- Food Quality Dairy Washdown Hose (DVAP)

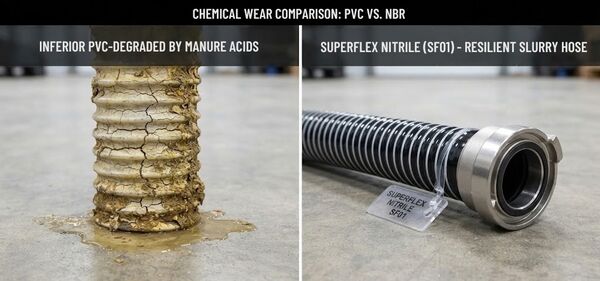

Livestock Slurry, Digestate & Organic Fertiliser
Biogas digestate and cattle slurry contain aggressive ammonia compounds, hydrogen sulphide, and volatile organic acids. The Superflex Nitrile Suction Hose (SF01)
Agricultural Crop Spraying & Agrochemicals
Liquid nitrogen fertilisers, selective herbicides, and concentrated insecticides attack generic vinyl hoses. Specialised multi-ply reinforced spray hoses—including 20 Bar (YV01)
Step 3: Assess Working Pressure & Surge Spikes
Pressure ratings on farm equipment range from low-pressure gravity lines to extreme high-pressure orchard spraying:
- Low-to-Medium Pressure Discharge (4 to 6 Bar): For field irrigation, transfer between holding lagoons, and open-ended dewatering, the Blue Layflat 4 Bar (MM01)
- General Washdown & Utility Pumping (10 Bar): Standard tractor-mounted washdown pumps, yard wash lines, and clean water transfer require a 10 bar rated hose like Medium Duty Water Delivery Hose (T273)
- High-Pressure Crop Protection (20 to 80 Bar): Tractor spray booms and handheld orchard spray guns operate at elevated hydraulic pressures to achieve atomised spray patterns:
- 20 Bar Spray Hose (YV01)
- 40 Bar Spray Hose (YQ01)
- 80 Bar Spray Hose (YO01)
- 20 Bar Spray Hose (YV01)
- Tractor Hydraulics & Bunkering Fuel Lines: Farm machinery relies on hydraulic circuits and on-site fuel bunkering. The Hydraulic Oil Suction Hose (T6700)
Step 4: Account for Outdoor Weathering, UV, Ozone & Sub-Zero Cold
Agricultural hoses spend their working life exposed to harsh weather conditions:
Ultraviolet Radiation & Solar Degradation
Prolonged UV exposure leaches plasticisers out of standard PVC, causing hoses to stiffen, turn opaque yellow, and crack under bend stress. Premium hoses—such as Saturno L SE
Winter Yard Operations & Sub-Zero Pumping (-25°C)
Standard PVC becomes rigid and brittle near 0°C. Attempting to uncoil or bend a cold-stiffened hose can snap the plastic reinforcement. The Saturno L SE (XL06)
Dragging Friction & Ground Puncture
Slurry drag hoses pulled behind tractors across harvested maize stubble, sharp flint, and gravel roadways require high tensile strength and puncture resistance. The Black Rubber Drag Layflat Hose (RLF)
Step 5: Verify Hygiene, WRAS & Grain ATEX Certifications
Regulatory compliance is essential for food safety, livestock health, and explosive dust management:
- Potable Water & Livestock Drinking Lines (WRAS Approved): Water supplied to livestock troughs and mobile poultry sheds must not leach harmful chemicals or support bacterial biofilm growth. The Potable Water Layflat Hose (WRC)
- Food Contact Hygiene (FDA & EU 10/2011): Hoses used for raw milk collection, wine pressing, or fruit juice handling must comply with FDA 21 CFR 177.2600, Regulation (EC) No 1935/2004, and EU 10/2011 (Simulants A, B, C, D1, D2). Compliant hoses—such as Plutone Clear PVC
- Combustible Grain Dust Safety (ATEX / TRGS 727): Transferring wheat, barley, animal feed, and milled flour through pneumatic seed drills, grain augers, and silo loading pipes generates dangerous electrostatic charges. Under German standard TRGS 727 and ATEX Directive 2014/34/EU, dry combustible grain dust requires antistatic ductings with permanently dissipative walls (R< 109 Ω) or groundable copper wires:
- Eolo PU Food Antistatic (EU02)
- AIRDUC® PUR 355 AS
- Nettuno PU FF Antistatic (NR02)
- Flamex BF-SE (M382)
- Eolo PU Food Antistatic (EU02)
Step 6: Select Robust Agricultural Couplings & Clamping Systems
An agricultural hose is only as dependable as its end connections. Using improper clips can result in leaks, blowouts, and equipment damage:
- Bauer Quick-Release Ball & Socket Couplings: The standard coupling for UK agricultural slurry management, mobile irrigation pumps, and muck spreading. Bauer couplings allow up to 30° angular deflection without leaking, making them well-suited for connecting heavy slurry hoses over uneven fields.

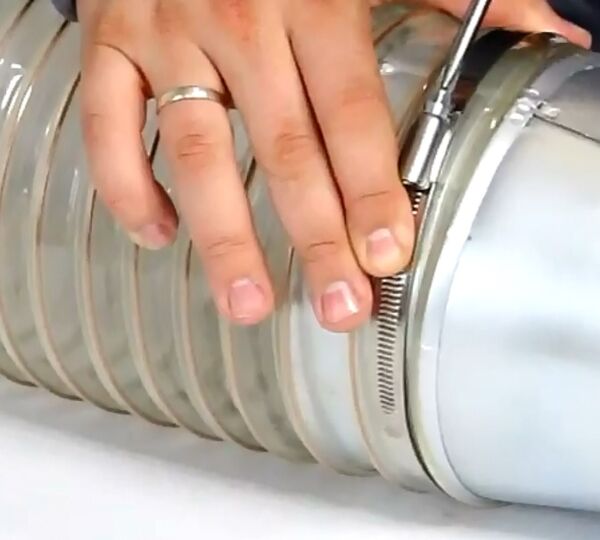

- High-Torque Worm Drive Clips: When securing flexible ducting on paddock cleaners or general-purpose water lines, standard light-duty jubilee clips often strip their threads. Heavy-duty zinc-plated or stainless steel Worm Drive Clips provide uniform clamping pressure around the hose collar without cutting into the outer cover.
- Bridge Clamps for Corrugated Ducting: Ductings with prominent external spirals—such as Eolo PU Food
- Hygienic Dairy Connections (RJT & Tri-Clamp): Raw milk collection manifolds require sanitary 316L stainless steel connections. Tri-Clamp (BS 4825-3) and RJT (BS 4825-5) fittings eliminate internal crevices, preventing bacterial growth and simplifying CIP sanitisation.
- High-Pressure Swaged Spray Fittings: Agricultural spraying hoses operating at 20 to 80 bar require factory-crimped brass or stainless steel ferrules with BSP threads to withstand dynamic pressure cycling without blowing off.
Why Choosing the Right Agricultural Hose Matters
Mismatched or inferior hoses on the farm lead to recurring operational failures:
- Paddock Sweeper Blockages: Corrugated PVC hoses with rough internal bores trap wet manure clumps and twigs, causing frequent blockages and burning out vacuum sweeper belts.
- Crop Spraying Blowouts: Hoses with insufficient burst safety factors can rupture under 40 bar pump pressure, spraying operators with toxic chemicals and damaging crops.
- Milk Spoilage & Bacterial Growth: Non-food-grade hoses leach plasticisers into raw milk, imparting plastic off-flavours and harbouring Lactobacillus bacteria in microscopic surface pores.
- Vacuum Tanker Implosion: Slurry suction hoses lacking structural reinforcement collapse flat when pulling thick sludge from deep pits, causing pump cavitation.
Ready to Choose Your Agricultural Hose or Ducting?
Follow this checklist when ordering fluid lines for your farm or equestrian facility:
- Define the Operation: Confirm whether the line is for paddock cleaning, dairy milk handling, crop spraying, slurry injection, drinking water, or grain suction.
- Check Pressure & Vacuum Parameters: Determine working pressures (up to 80 bar for sprayers) and check if an embedded helix is required for suction.
- Verify Certifications: Ensure FDA / EU 10/2011 for dairy, WRAS for drinking water, or TRGS 727 antistatic for grain handling.
- Match Sizing & Couplings: Match hose ID to pump ports, selecting Bauer, Camlock, or high-torque Worm Drive Clips.
Top Agricultural Hoses by Application
To assist your selection, our agricultural hoses and ductings are categorised below by operational duty:

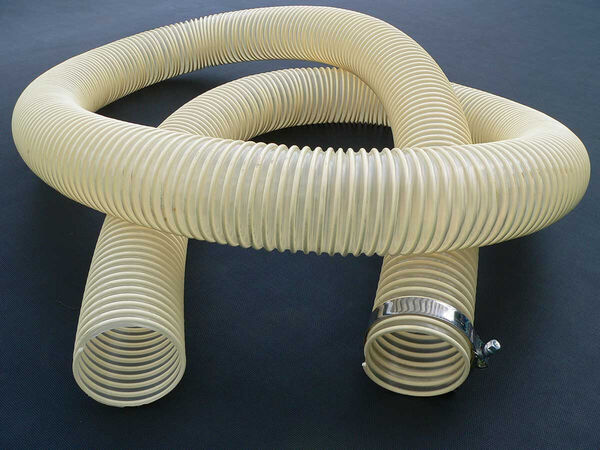

The Eolo PU Food Quality Polyurethane Ducting (EU01)
Transferring warm raw milk requires food-certified transparent hoses. The Plutone Clear PVC Suction Delivery Hose (B201)

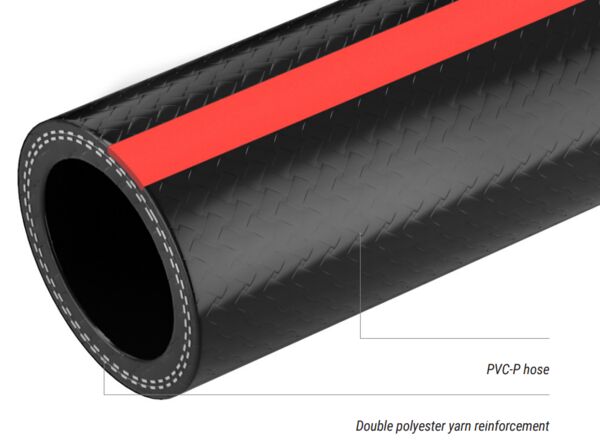

For applying liquid fertilisers, herbicides, and pesticides, our reinforced PVC agricultural spraying series delivers high chemical resistance and burst protection:

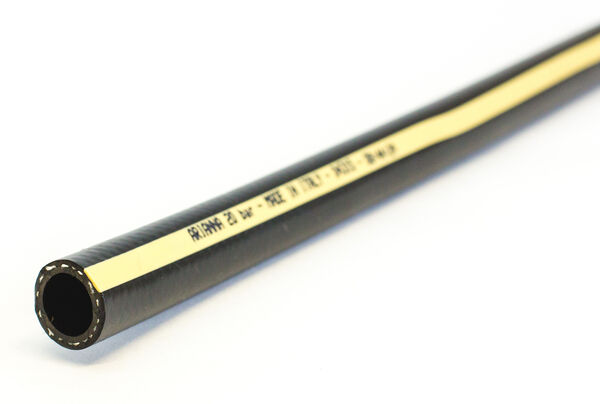

- 20 Bar Agricultural Spraying Hose (YV01)
- 40 Bar Agricultural Spraying Hose (YQ01)
- 80 Bar Agricultural Spraying Hose (YO01)
Tractor-towed umbilical slurry injection requires extreme tensile and abrasion strength. The Black Rubber Drag Layflat Hose (RLF)
Pneumatic transfer of wheat, barley, animal feed pellets, and seeds generates severe abrasive friction and explosive static electricity. The Nettuno PU FF Antistatic Hose (NR02)

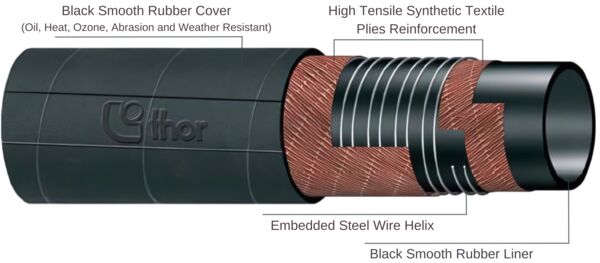

Keep farm machinery operating efficiently with the Hydraulic Oil Suction Hose (T6700)
Agricultural Hose & Ducting Technical Specifications
The table below provides verified engineering data for our primary agricultural transfer lines:
| Product Model | Material Construction | Temperature Range | Working Pressure / Vacuum | Key Standards & Certifications | Primary Agricultural Application |
|---|---|---|---|---|---|
| Eolo PU Food (EU01) | Ether-based polyurethane wall + rigid shock-proof PVC spiral | -40°C to +90°C (peaks to +125°C) | Vacuum: 0.3 to 2.5 mH2O (size dependent) | FDA 21 CFR 177.2600; EU 10/2011 (A, B, C, D2, E); Hydrolysis & microbe resistant | Paddock cleaning vacuums, horse manure suction, grass collection |
| Plutone Clear PVC (B201) | Clear food-grade PVC + embedded steel wire helix (can be made antistatic / conductive / electrically bonded by earthing the steel spiral) | -10°C to +60°C | 1.2 to 7 Bar working Vacuum: 8 to 10 mH2O | FDA 21 CFR 177.2600; EU 10/2011 (Simulants A, B, C, D1); Hydrolysis & microbe resistant | Raw milk transfer, dairy parlour collection lines, liquid food suction |
| 20 Bar Spray Hose (YV01) | PVC-P inner tube + polyester braid + PVC-P cover | -10°C to +60°C | 20 Bar working (60 Bar burst) Delivery only | Weather, microbes, hydrolysis, ageing, ozone, UV radiation and Chemical resistant compound; Fungicide, Herbicide and pesticide resistant | Tractor boom sprayers, liquid fertiliser application, weed control |
| 40 Bar Spray Hose (YQ01) | Heavy-duty PVC-P core + polyester reinforcement + PVC-P cover | -10°C to +60°C | 40 Bar working (120 Bar burst) Delivery only | Weather, microbes, hydrolysis, ageing, ozone, UV radiation and Chemical resistant compound; Fungicide, Herbicide and pesticide resistant | Heavy agricultural crop sprayers, orchard mist-blowers, tree spraying |
| 80 Bar Spray Hose (YO01) | High-grade PVC-P core + Polyester Reinforcement + PVC-P cover | -10°C to +60°C | 80 Bar working (240 Bar burst) Delivery only | Weather, microbes, hydrolysis, ageing, ozone, UV radiation and Chemical resistant compound; Fungicide, Herbicide and pesticide resistant | Vineyard spraying, high-pressure agricultural pest control, lance spraying |
| Black Rubber Drag Hose (RLF) | Polyester jacket + nitrile/PVC blend | -20°C to +100°C | 14 to 25 Bar working (High tensile pull strength) | Slurry, manure & oil resistant | Tractor umbilical slurry drag systems, muck injection, field spreading |

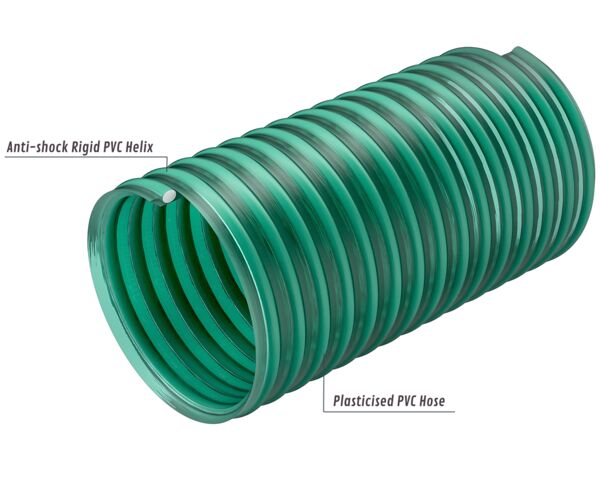

| Saturno L SE (XL06) | Flexible cold-resistant PVC-P compound + rigid shock-resistant PVC spiral | -25°C to +60°C | 2 to 5 Bar working Vacuum: 6 to 15 mH2O | Sub-zero flexible; chemical resistant | Winter slurry suction, tanker filling, agricultural waste dewatering |
| Potable Water Layflat (WRC) | Textile-reinforced thermoplastic polyurethane (TPU) layflat | -50°C to +75°C | 10 to 15 Bar working Delivery only | WRAS Approved; FDA 21 CFR 177.2600; BS 6920; BS 6391 Type 2 | Livestock drinking water supply, emergency farm water bypass |
| Nettuno PU FF Antistatic (NR02) | Clear ether-polyurethane wall + rigid PVC spiral + embedded copper wire | -10°C to +60°C | 4 to 5 Bar working Vacuum: 6 to 7 mH2O | ATEX; EU 10/2011 (A, B, C, D2); Antistatic via copper wire | Pneumatic seed drill filling, grain auger discharge, animal feed transfer |

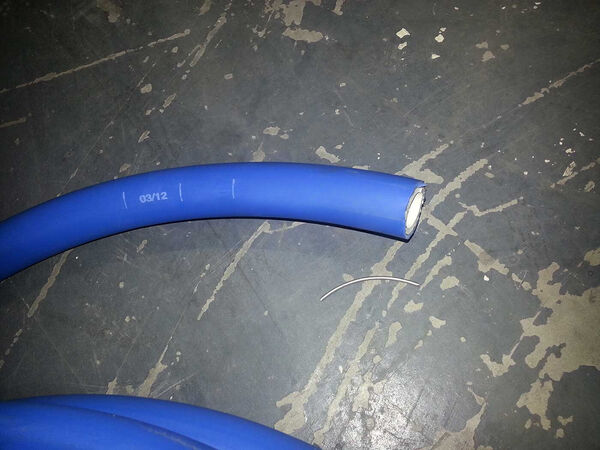

| Food Washdown Hose (DVAP) | Smooth white EPDM rubber tube + high tensile textile plies + blue non-marking EPDM cover | -40°C to +164°C | 6 Bar working (60 Bar burst) Delivery only | Hot water & dairy chemical resistant | Milking parlour hot washdown, dairy floor cleaning, abbatoir sanitisation |
Which Hose Setup Is Right for Your Farm? For paddock cleaners and horse manure vacuums, the ether-polyurethane Eolo PU Food (EU01) provides superior abrasion resistance and long service life. For milking parlours, choose Plutone Clear PVC (B201) for visual flow monitoring. For crop spraying, select 20, 40, or 80 Bar Spray Hoses based on your pump pressure. For slurry injection, deploy Black Rubber Drag Layflat (RLF) for umbilical towing and Saturno L SE (XL06) for winter tanker suction. Need help sizing agricultural couplings or checking chemical compatibility? Email our team at sales@megaflex.co.uk.

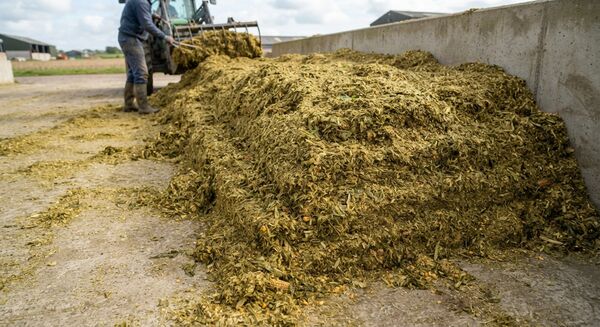

Silage, Green Forage & Chopped Straw Bedding Blowers
Modern harvesting, clamp silage consolidation, and mechanized livestock bedding distribution demand heavy-duty ducting capable of handling wet organic waste, high-velocity abrasive stalks, and combustible dry chaff:
Overcoming Moisture, Fermentation Acids & Stalk Impact
Green chop, grass silage, and whole-crop maize silage are heavy, moisture-laden, and acidic. As forage begins natural anaerobic fermentation in the field or clamp, it releases aggressive organic acids—predominantly lactic, acetic, and butyric acids. Standard PVC ducting absorbs moisture and reacts with plant sap, causing the plastic to leach plasticisers, turn stiff, and split along the seams within a single season.
Furthermore, high-speed forage blowers and straw spreaders propel chopped timber, tough maize stems, and abrasive cereal husks at velocities exceeding 25 m/s:
- Eolo PUP Food Grade Polyurethane Ducting (EP01)
- AIRDUC® PUR 351 Food-Grade Polyurethane Ducting
- Flamex BF-SE Flame-Resistant Ducting (M382)
On-Farm Anaerobic Digestion (AD) & Biogas Plant Substrate Transfer
With the rapid expansion of farm-scale anaerobic digestion (AD) plants converting cattle slurry, food waste, and energy crops into renewable biomethane and organic fertiliser, transfer lines must endure severe biochemical and thermal demands:
Managing Corrosive Digestate, Thermal Pasteurisation & Ammonia
Digestate processing operates under conditions far more aggressive than raw slurry. Substrate slurries inside anaerobic digesters operate under continuous mesophilic (37°C to 42°C) or thermophilic (50°C to 55°C) temperatures, with statutory pasteurisation tanks running at +70°C for pathogen kill. The resulting digestate contains high concentrations of dissolved ammonium salts, volatile fatty acids, and trace hydrogen sulphide (H2S):
- High-Temperature EPDM Water Suction & Delivery Hose (T1710EP)
- Superflex Nitrile Slurry Suction & Delivery Hose (SF01)

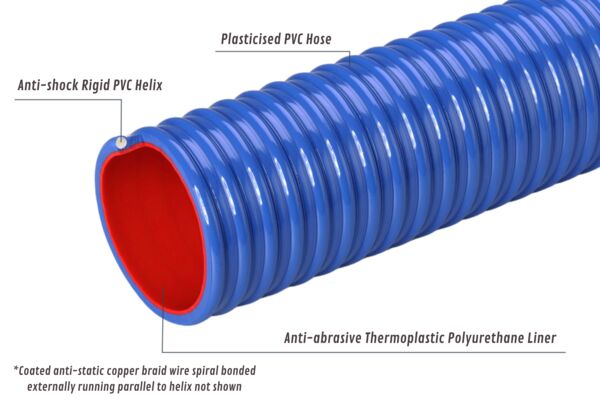

- Urano HD Antistatic Heavy Duty PVC Suction Hose (UH02)
Agricultural Biosecurity, Vehicle Disinfection & Hot Washdown Regimes
Rigorous biosecurity is legally mandated to protect livestock from infectious pathogens such as Avian Influenza, African Swine Fever, Bovine TB, and Foot-and-Mouth disease. From DEFRA-compliant wheel wash dips and livestock trailer sanitisation to high-temperature calf pen washdowns, fluid delivery equipment must resist aggressive chemical foaming agents and high-temperature water:
Combating Aggressive Disinfectants, Animal Fats & High Heat
Agricultural disinfection protocols use heavy chemical cocktails—including peracetic acid, glutaraldehyde, quaternary ammonium compounds, iodophors, and caustic foaming detergents. These chemicals rapidly harden and crack unreinforced PVC and domestic garden hoses, causing premature line blowouts:
- Food Quality Dairy Washdown Hose (DVAP)
- 20 Bar Agricultural Spraying Hose (YV01)
- Medium Duty General Purpose Suction & Delivery Hose (NXNF)
Final Thoughts
Modern agriculture demands durable fluid transfer equipment. Specifying purpose-built, certified hoses and ductings—whether abrasion-resistant polyurethane for paddock cleaners, FDA-compliant PVC for milking lines, or 80 bar reinforced hose for crop spraying—protects farm operations from costly downtime, environmental fines, and product loss. Pair your hoses with heavy-duty Bauer couplings, stainless steel Camlocks, and robust Worm Drive Clips to ensure long-term, leak-free performance. Megaflex supplies a comprehensive portfolio of fully certified agricultural hoses, custom-assembled and tested to rigorous standards. Contact our agricultural technical team today at sales@megaflex.co.uk!
Product links mentioned in this blog:Eolo PU Food Quality Polyurethane Ducting
Check Out Our Other Blogs
Explore our other practical guides and technical engineering articles:
- Eolo PU Ducting: The Ultimate Solution for Food-Grade Material Transfer
- Conduits at Megaflex: Material Matters
- PolyAlu Tubing: Revolutionising Durability in Harsh Environments
- How to Calculate Bend Radius: A Comprehensive Guide
Visit our blog homepage for more industrial insights!
Agricultural Hoses & Ductings FAQ
Have questions about sizing, chemical compatibility, or winter care for your agricultural hoses? Click any question below to see the answer. For custom assembly quotes and trade supplies, contact our agricultural desk at sales@megaflex.co.uk!
Click a question to read the answer:
Ether-based polyurethane ductings—such as the Eolo PU Food (EU01) and Eolo PUP Food (EP01)—are the industry standard for paddock vacuums (like Terra Vac machines). Their smooth internal bores prevent manure and wet grass blockages, while ether-polyurethane provides up to five times the abrasion resistance of standard PVC and resists microbial decay from wet organic waste.
Standard non-certified PVC hoses contain plasticisers that leach into raw milk when exposed to organic butterfat, imparting chemical off-flavours. In addition, standard hoses lack smooth food-grade inner surfaces, allowing milkstone (calcium deposits) and bacterial biofilms to accumulate. Dairy transfer requires certified food-grade hoses like Plutone Clear PVC (B201) compliant with FDA 21 CFR and EU 10/2011.
The difference lies in the textile reinforcement plies and burst safety margins. A 20 bar hose (YV01) suits standard tractor boom weed control. A 40 bar hose (YQ01) is engineered for heavy trailed sprayers and orchard mist-blowers. An 80 bar hose (YO01) features multiple high-tensile braids designed for extreme-pressure vineyard sprayers and high-pressure chemical misting.
Winter slurry spreading and lagoon pumping often take place in sub-zero weather. Standard PVC stiffens and cracks when handled near freezing. Specialised hoses like Saturno L SE (XL06) use low-temperature plasticisers that maintain full flexibility down to -25°C, preventing wall cracking and ensuring airtight suction seals on tanker valves.

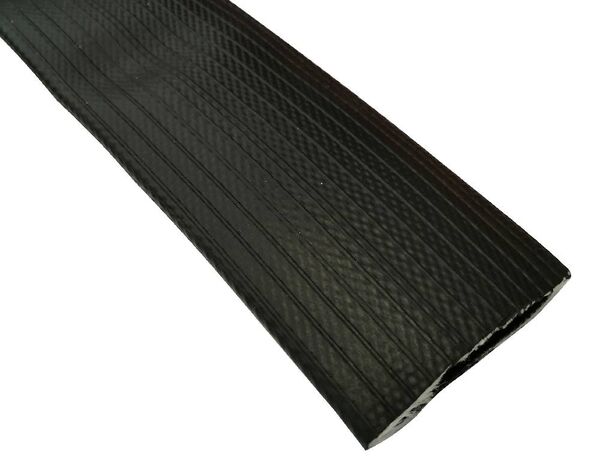

The Black Rubber Drag Layflat Hose (RLF) is built with an extruded-through-the-weave circular polyester jacket embedded in a tough nitrile rubber matrix. This seamless construction provides high longitudinal tensile strength, allowing tractors to tow hundreds of metres of slurry-filled hose across rough arable fields without snaking, delaminating, or tearing.
Conveying dry grain, seed, and animal feed through plastic hoses generates high electrostatic charges via particle friction. In enclosed farm grain stores and silos, a static spark can ignite airborne grain dust clouds, causing explosive deflagrations. Hoses like AIRDUC® PUR 355 AS and Nettuno PU FF (NR02) feature antistatic walls and groundable copper wires compliant with TRGS 727.
Blue Mercurio M (MM01) is a 4 bar rated lightweight layflat hose suited for general water discharge, field dewatering, and low-pressure irrigation. Yellow Mercurio (MY01) features heavier textile reinforcement rated to 6 bar working pressure, providing higher burst margins for commercial agricultural water transfer.
Water lines supplying poultry sheds, cattle barns, and sheep troughs must not leach toxic chemicals, phthalates, or heavy metals into the drinking water. WRAS-approved hoses like Potable Water Layflat (WRC) comply with BS 6920, ensuring water remains pure, odourless, and safe for livestock consumption.
Paddock cleaning ductings feature a raised external spiral helix. Standard flat jubilee clips bridge across the wire, pinching the plastic wall and leaving gaps on either side that leak vacuum pressure and drop suction power. Bridge clamps feature a pre-formed arch that steps over the spiral wire, delivering a uniform 360° airtight seal.
Washdown hoses like the Food Washdown Hose (DVAP) should be coiled onto wall-mounted hose reels or hung on rounded saddles off the parlour floor. Leaving hoses lying in standing slurry or caustic wash pools accelerates outer cover degradation, while proper drainage prevents internal bacterial pooling.
